50Hz Working Good Sensitivity Detector New Energy-Saving Switch

50Hz Working Good Sensitivity Detector New Energy-saving Switch


Specification:

TA-H135 is a new energy-saving switch, it adopts integrated circuit and the good sensitivity detector. It incorporates automatism, convenience, energy-saving, safety and practicality. It works by receiving human motion infrared rays. It can start the controlled load at once when one enters detection field. It can identify day and night automatically. Its installation is very convenient and using range is wide. It has the functions of power indication and detection indication.

Technical Data:
Power Source: 220 -240V/AC
Detection Range: 160°
Power Frequency: 50Hz Working
Temperature:-20~+40ºC
Ambient Light: 3-2000LUX (adjustable)
Working Humidity :< 93%RH
Time-Delay : min:10sec±3sec;Max:7min±2min Power
Installation Height: 1m-1.8m
Consumption:0.45W (work)
Rated Load: 500W(incandescent lamp)
                  200W(energy-saving lamp)
Detection Motion Speed: 0.6-1.5m/s
Detection Distance: 9m max (<24ºC)

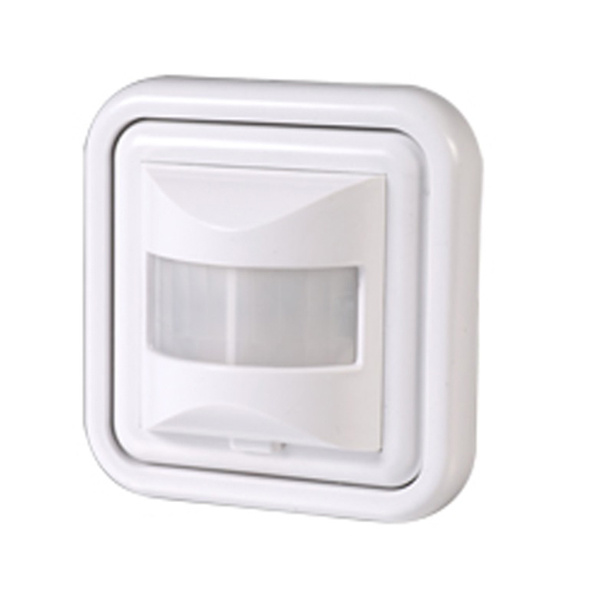

Picture:

Shipment&Payment:

Model	New Energy-saving Switch TA-H135
Shipment	DHL, UPS, FEDEX...
Payment	T/T, Western Union, Paypal
