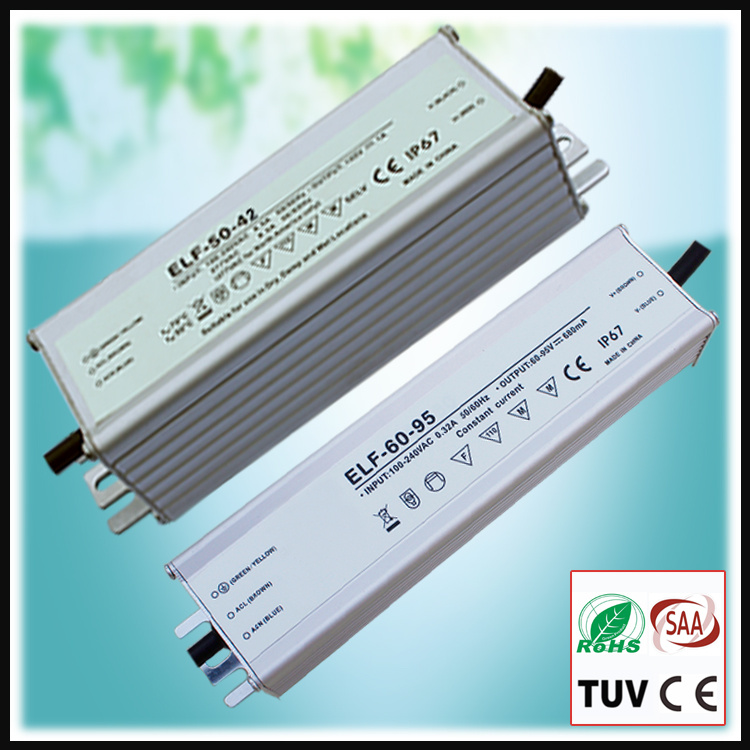

50W Constant Current Waterproof IP67 LED Driver with Ce/RoHS
| Price: |
US $ 9.4-9.5/Piece |
| Min Order: |
300/Piece |
| Pay Type: |
T/T,D/P |
| Item No | ELF-50-90 |
| ELF-50-66 |
| ELF-50-42 |
| ELF-50-36 |
| ELF-50-30 |
| ELF-50-24 |
| Intput Voltage | 90-264Vac |
| 90-264Vac |
| 90-264Vac |
| 90-264Vac |
| 90-264Vac |
| 90-264Vac |
| Output Voltage | DC60-105V |
| DC36-71V |
| DC36-60V |
| DC24-42V |
| DC24-34V |
| DC12-26V |
| Type Current | 400-450MA |
| 600-630MA |
| 880-920MA |
| 1.18-1.22A |
| 1.49A-1.51A |
| 1.78-1.82A |
| Parallel/Series | 20-30 in series 1 in parallel |
| 12-22 in series 2 in parallel |
| 12-14 in series 3 in parallel |
| 8-12 in series 4 in parallel |
| 8-10 in series 5 in parallel |
| 4-8 in series 6 in parallel |
| Efficiency | 89% |
| 89% |
| 89% |
| 89% |
| 89% |
| 89% |
| Power Factor | 0.95 |
| 0.95 |
| 0.95 |
| 0.95 |
| 0.95 |
| 0.95 |
| Case material | Aluminum Alloy |
| IP Rating | IP67 |
| Operating Temperature | -30-70ºC |
| Operating humidity | 20-90% RH No Condensation |
| Storage Temperature | -40-80ºC |
| Thermally Conductive Silicone Rubber | YES |
| Dimmable | NO |
| Dimension | L150mm*W45mm*H34mm |
| Certification | CE ROHS |
| warranty | 2 Years |
1. Small size, High efficiency, High reliability, Long lifetime.
2. 100% burn-in test. 3. Protection: Over load/Over voltage/Over temp/Short circuit. 4. Constant current ,fully sealed and waterproof, IP67 led power supply.5. Led lighting driver supply products are widely used in wall washer lights, spot lights,flood light, tunnel Light and other outdoor lighting.6. These LED Drivers are genuine and fully approved with the CE safely mark.7. Class 2 power unit, pass LPS8. Long life time warranty for 2 years.Application
Working environment • Make sure work in proper environments are stated in this Guide. • Do not overload. • Avoid free of load while a power supply is powered on, keep proper loading. • Always keep good ventilation. • Do not mount on wood or flammable surface, keep minimum 5CM for LED power supplies each other. • Keep away from inflammable or explosive environments.Company profileOur factory and production line:Shenzhen Qishuo Optoelectronic Co., Ltd is a professional manufacturer of LED power supply and LED driver. We have 7 years experience in design, development and manufacturing of LED power supplies. Including waterproof / dimmable / no stroboscopic/ isolated driver/ non-isolated LED driver for LED tube, spot light, down light, wall washer, panel light, etc..(1) Office showWe have more than 50 staffs in our company and cover an area of 1000square meter in Guangdong, China.(2) Professional testing machine: SMT, Burn-in test machine.(3) Production lines: There are 4 production lines in our factory.Our ServiceWe provide 3 years and 5 years warranty depend on your requirement. Quality first always is our promise, that is why we can run well since 2010. LED Driver OEM/ ODM is available.Customized service: Customized Design is available.Packaging & DeliveryPackaging Details: Standard Package /Customers packing are acceptable.Company Show
| Prod Model: |
ELF-50-24 |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
Shenzhen Qishuo Optoelectronic Co., Ltd that was established in 2008, is a collection development, production and sales of LED lighting drive power of high-tech enterprises. The company has professional R & D team for LED product features, developed with high quality, high efficiency, low temperature, small size, and other fine products. Has been widely used by customers in indoor lighting, industrial lighting and outdoor lighting, and other fields.
The company's main products include LED fluorescent lamp drive power, LED downlights, ceiling lamps, panel lights drive power; LED bulb lights, spotlights drive power, etc...Power is from 3W to 50W, covering the whole house power, and provides power development services.
Shenzhen Qishuo is a professional manufacturer of LED power supply and LED driver. We have 7 years experience in design, development and manufacturing of LED power supplies. Including waterproof / dimmable / no stroboscopic/ isolated driver/ non-isolated LED driver for LED tube, spot light, down light, wall washer, panel light, etc...

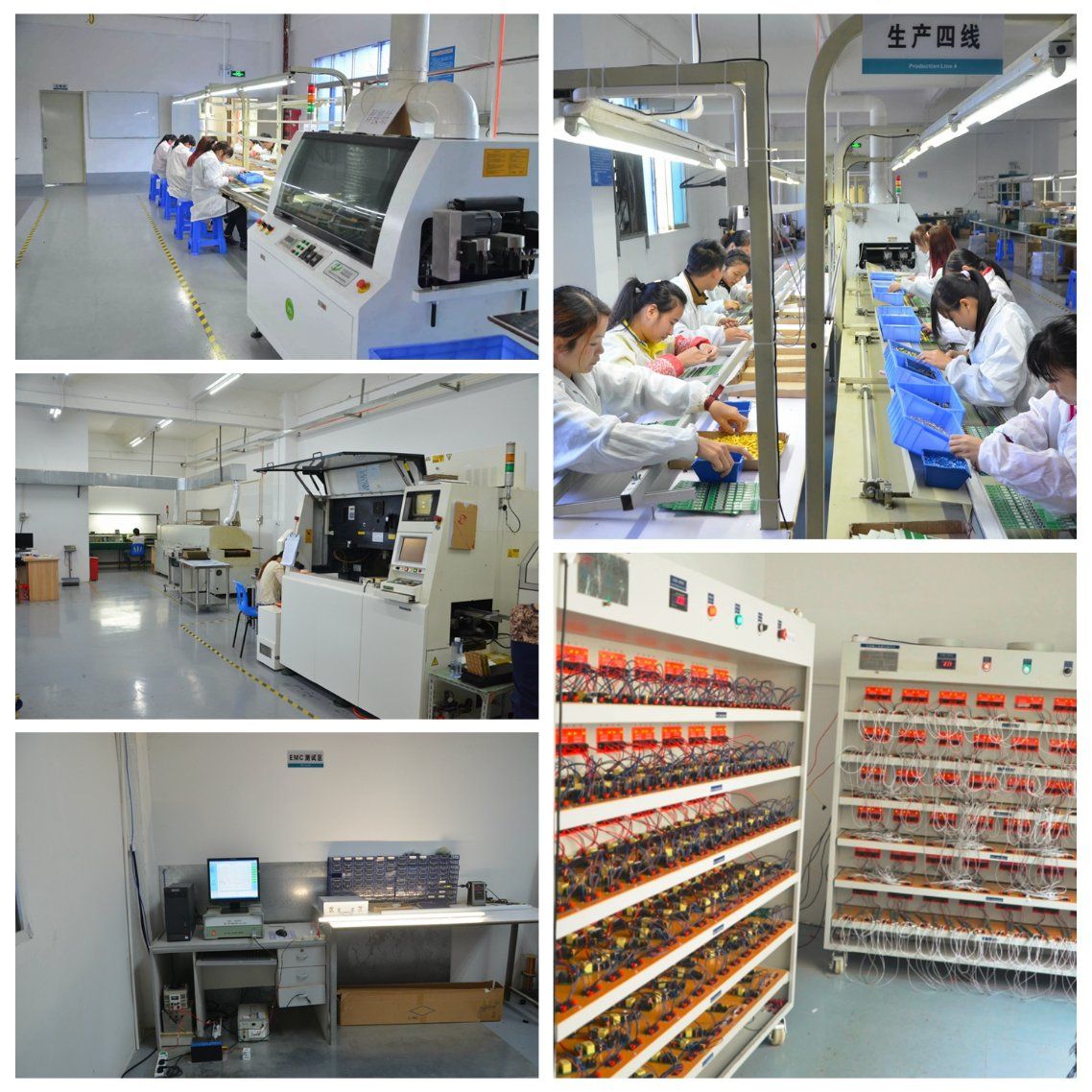

(1) Office show
We have more than 50 staffs in our company and cover an area of 1000square meter in Guangdong, China.
(2) Professional testing machine: SMT, Burn-in test machine.
(3) Production lines: There are 4 production lines in our factory.
(4)LED driver OEM/ ODM is available, customized design is available.
We also has being cooperating with many other famous brand manufactures for a long time, such as AOT, transaction amount about 2million dollar every year. Our product design conforms to the United States UL1012, German TUVE60980, the EC EMC, LVD, CE, UL, ETL, RoHS, VL1950, IEC950 and other international standards. And our product exported to Europe, America, Middle East, Japan, southeast Asia and other countries and regions. Companies adhering to the "high reliability, high performance-to-price ratio" the management idea, to provide you with perfect LED power solutions, and become your long-term trusted partner.
PS: Our company will join in Guangzhou International Lighting Exhibition 22ND in JUN. 9th to JUN. 12th, which you will see a lot of new products, so we hereby sincerely invite you to visit us at Booth B47, Hall No. 12.2.
