| Prod Model: |
57BYG301-C-21D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Series: |
57 Byg |
| Step Angle: |
1.8 Degree |
| Shaft End Length: |
21mm (0.83 in) |
| Shaft: |
Screw Shaft |
| Connectors: |
Connectors, Lead Wires |
| Payment Term: |
30% Deposit, 70% Balance Before Shipment |
| Type: |
Magnetic-Electric |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
Three-Phase Six-Step |
| Brand: |
Shengyang |
Product Description

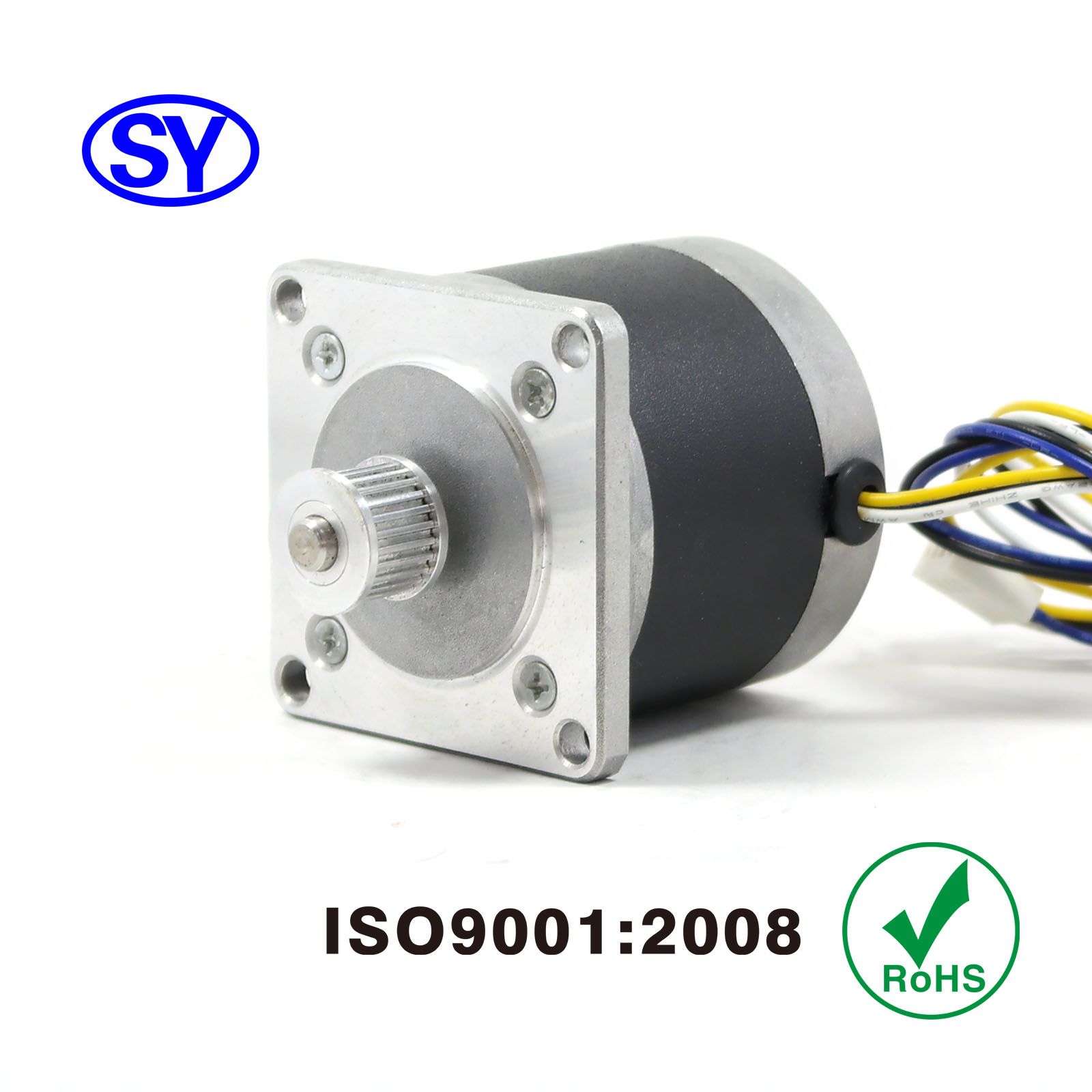

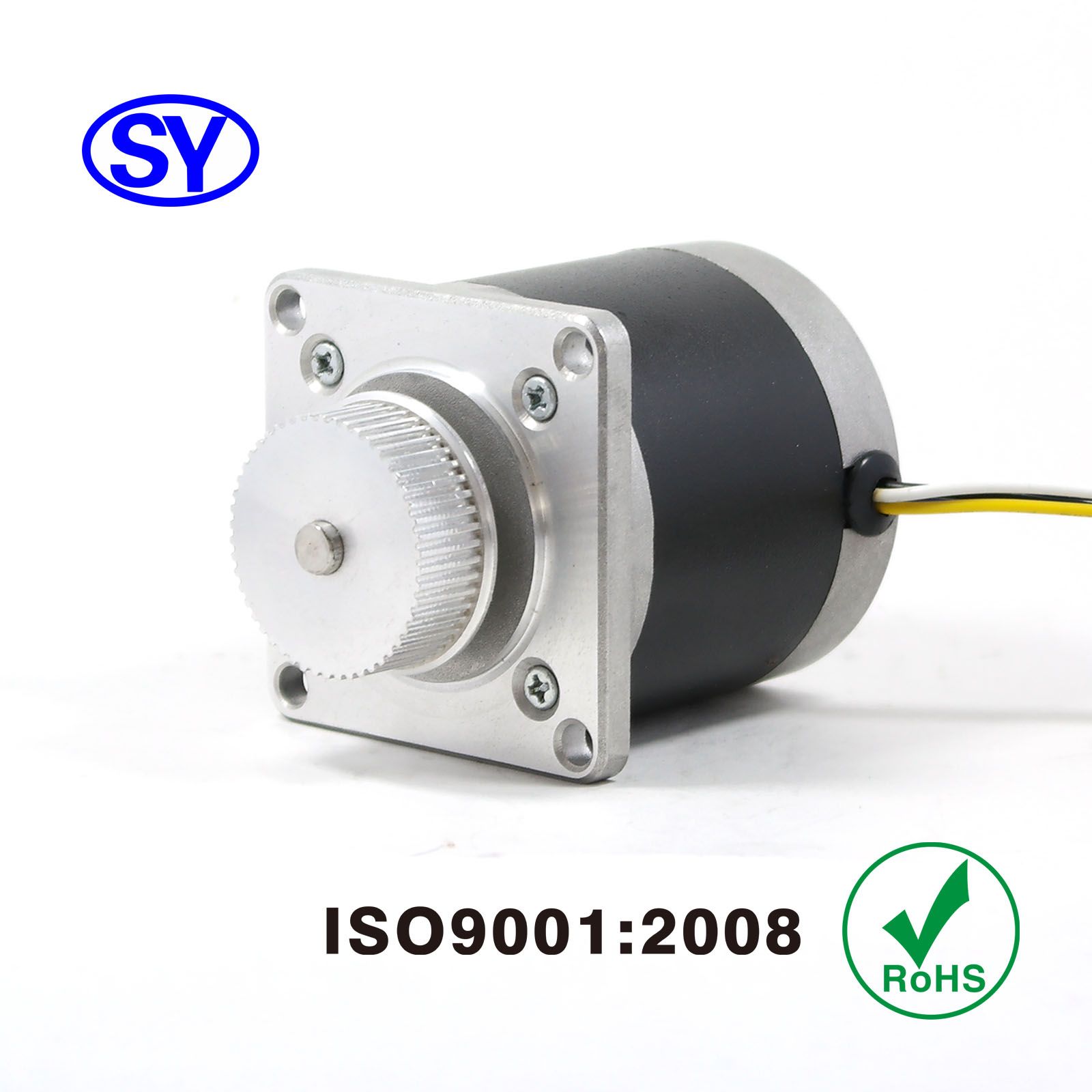

57 MM 1.8 Deg Stepper Electrical Motor for Medical Machine
Features:
High Acceleration
Low noise
Low inertia
Products Description
2. Specifications:
Motor Model: 57BYG301-C-21D
Step Angle: 1.8° ± 5% full step, no load
Holding Torque: 1100 mNm (155.9 oz-in)
Resistance per Phase: 1.4 ohm
Inductance per Phase: 3.1 mH
Rated Current: 2.2 A
Ambient Temperature: -24ºC - +60ºC
Relative humidity: 90% MAX
Resistance Accuracy: ±10%
Insulation Resistance: Larger than 100 mΩ 500V DC
Dielectric Strength: 600 V AC for 1 S, leakage current less than 1 mA
2. Notes:
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the competitive price will be sent to you for your reference.
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, raw materials comply with RoHS, all of the derived motors can be customized, welcome to contact us for more details.
Contacts: Kanix Ik
Mobile: (+86) 1552 1524 907
shengyangmotor.en.made-in-china.com
Motor Series
&
Length |
Model
Mumber |
Holding Torque |
Rated Current |
Resistance
per
Phase |
Inductance
per
Phase |
|
mNm oz-in |
A |
ohm |
mH |
57BYG1
40 mm
(1.56 in.) |
57BYG101 |
500 70.86 |
1.5 |
1.8 |
3.2 |
|
57BYG102 |
500 70.86 |
2.2 |
0.85 |
1.5 |
57BYG2
51 mm
(1.99 in.) |
57BYG201 |
750 106.3 |
1.5 |
2.6 |
5.6 |
|
57BYG202 |
750 106.3 |
2.2 |
1.2 |
2.6 |
57BYG3
55 mm
(2.15 in.) |
57BYG301 |
1100 155.9 |
2.2 |
1.4 |
3.1 |
|
57BYG302 |
1100 155.9 |
3.1 |
0.7 |
1.65 |
57BYG4
76 mm
(2.96 in.) |
57BYG401 |
1500 212.6 |
2.2 |
1.7 |
2.7 |
|
57BYG402 |
1500 212.6 |
3.1 |
0.85 |
2.4 |
