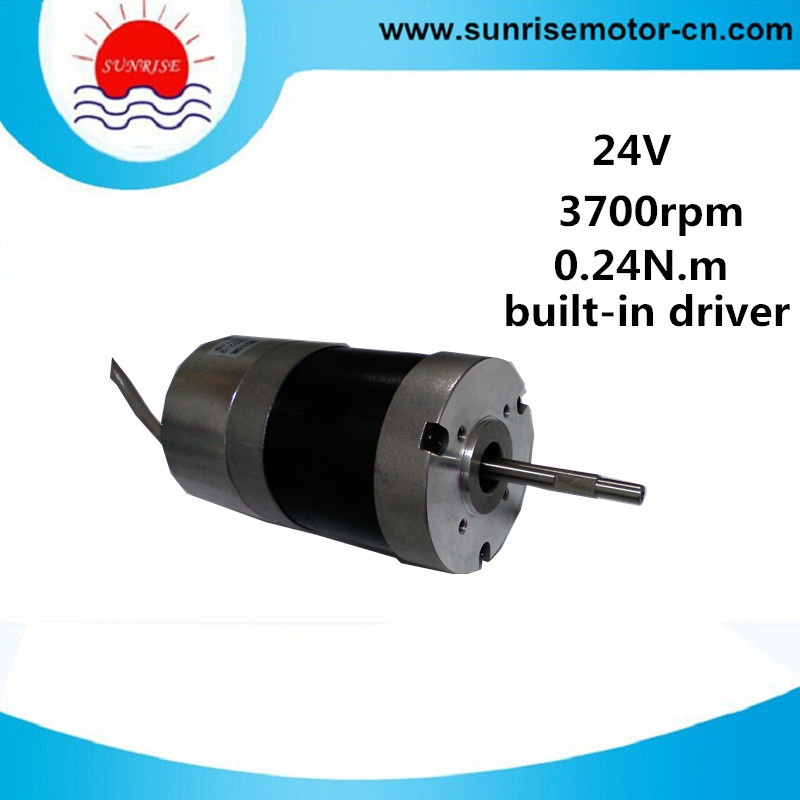

57bid04-2452-2 24VDC Brushless Built-in DC Motor for Coffee Machine

Name: 57bid04-2452-2 24VDC Brushless Built-in DC Motor for Coffee Machine
Brand: all-electronics-online.com
SKU: 775944295
Availability: InStock
Rating: 4.7 (84 reviews)

Price:	US $ 35.8-55/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Built-in driver Brushless dc motor
57BID04-2452-2

Motor specifications:

Model			57BID04-2452-2
Rated voltage	U	V	24
Rated out power	P out	W	93
Rated speed	nN	rpm	3700
Rated current	I N	A	5.5
Rated torque	T N	N.m	0.24
Peak current	I P	A	16.5
Peak torque	T p	N.m	0.72
Voltage constant	K E	V/ Krpm	4.6
Winding class			B
Motor weight		Kg	1

we can produce motor according to customer's requirement.

Prod Model:	57BID04-2452-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	57bid04-2452-2
Voltage:	24VDC
Rated Speed:	3700rpm
Power:	93W
Rated Torque:	0.24n.M
Weight:	1kg
Application:	Household Appliances
Operating Speed:	High Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Type:	BLDC
Certification:	RoHS
Brand:	Sunrise Motor

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
