57blys02 24VDC 34W 0.11n, M 3000rpm DC Motor with High Speed

Name: 57blys02 24VDC 34W 0.11n, M 3000rpm DC Motor with High Speed
Brand: all-electronics-online.com
SKU: 726006415
Availability: InStock
Rating: 4.4 (26 reviews)

Price:	US $ 52.2-53.65/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

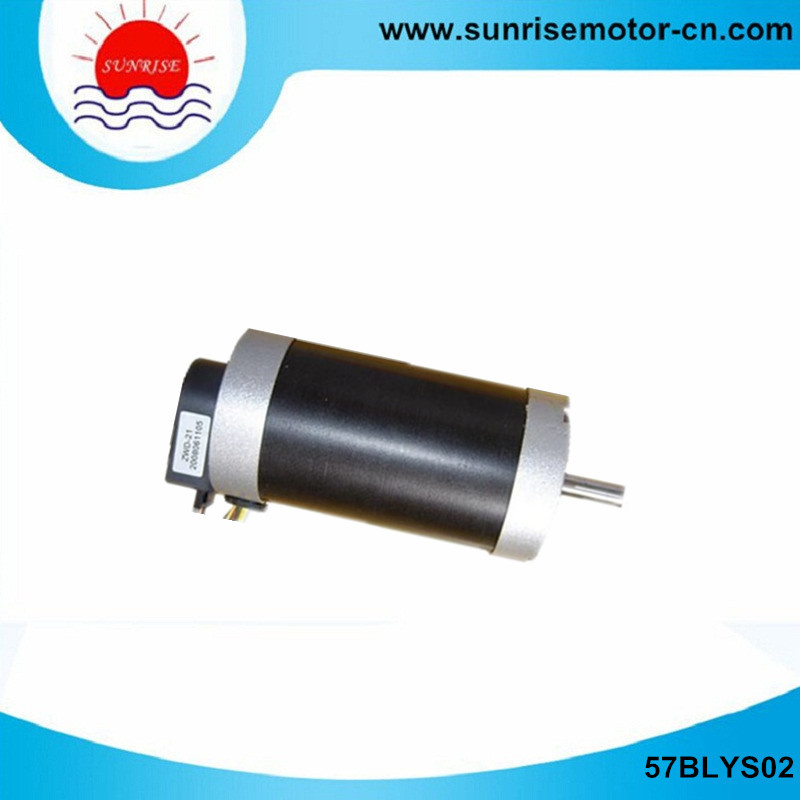

57BLY Serie Brushless DC Servo motor

MODEL: 57BLYS02
VOLTAGE: 24V
PHASE: 3
CURRENT: 1.9A
POWER: 34W
TORQUE: 0.11N. M
Encoder: 1000cpr
RATED SPEED: 3000RPM

Motor are available with different winding and mechanical modification to meet specific applications.

Encoder can do inside.

NAME	BLDC MOTOR
MODEL	57BLYS01	57BLYS02		57BLYS03			57BLYS04		57BLYS05		57BLYS06
PHASE	3
POLES	4
ENCODER CPR	1000
VOLTAGE	DC24V
CURRENT A	0.9	1.9		2.9			3.6		5.4		7
POWER W	15	34		52			69		103		138
TORQUE N.m	0.057	0.11		0.165			0.22		0.33		0.44
SPEED RPM	2500	3000		3000			3000		3000		3000
INSULATION RESISTANCE	≥25MΩ
DIELECTRIC STRENGTH	500VAC,50Hz/1min
INSULATION CLASS	B
ROTATING DIRECTION	CW/CCW
TEMP.	-20--50
HUMIDITY	20%--90%
LIFE	≥10000h
BODY LENGTH(L) mm	37		47		57	67		87		107
Mass Kg	0.43		0.5		0.67	0.75		1.0		1.25

Prod Model:	57BLYS02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	57blys02
Voltage:	24VDC
Speed:	3000rpm
Power:	34W
Torque:	0.11n.M
Encoder:	1000CPR
Current:	1.9A
Rotation:	Cw/Ccw
Length:	47mm
Weight:	0.5kg
Structure And Working Principle:	Brushless
Operating Speed:	High Speed
Application:	Power Tools
Excitation Mode:	Excited
Brand:	Sunrise Motor
Type:	BLDC Servo
Certification:	SGS

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
