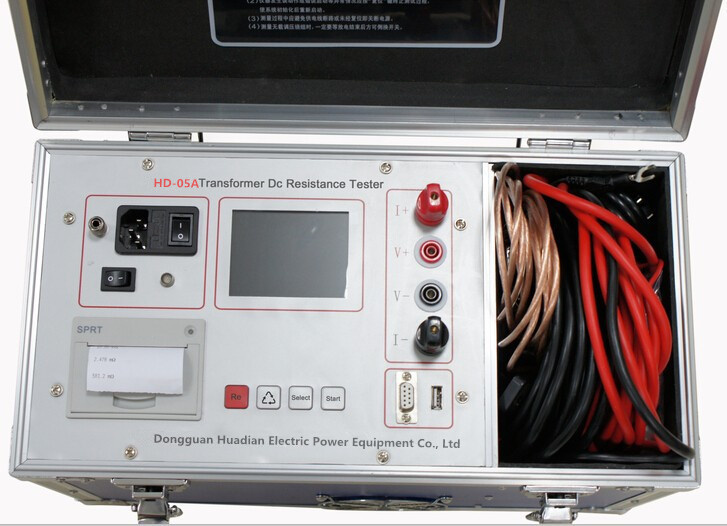

5A Transformer Winding Resistance Meter DC Resistance Tester
| Price: |
US $ 200-3000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
5A Transformer Winding Resistance meter DC Resistance tester
Transformer DC Resistance tester which applies to Measure transformers, transformers, generators, motors and circuit etc. and single double bridge replacement.It can check whether the inter- welding quality and winding turns of winding shorted joints.It can detect whether each position of voltage divider switch is good.It can also detect whether the actual position of the switch is consistent with the instruction position.It can check whether the outgoing line is breakage.It also can check whether multi-strand line around together has broken stocks,etc.
1. The whole machine is controlled by the high speed single chip microcomputer, the automation degree is high, and the operation is simple.
2. The instrument adopts new power technology, and the measuring range is wide.
3. Protection function is perfect, can reliably protect the counter potential of the impact of the instrument, the performance is more reliable.
4. Fast response speed, the instrument measurement data is stable, the instrument test process automatically refresh data.
5. Intelligent power management technology, the instrument is always working in the minimum power state; effectively reduce the internal heat, save energy.
6. The instrument has no power down clock inside.
7. Instrument has no power down memory, can store data permanently.
Product Name | Transformer DC Resistance Tester/Cable Resistance Analyzer |
Output current | <5mA,2.5A,5A |
Resolution | 0.1μΩ |
Range | 1mΩ~4Ω (5A) 2mΩ~8Ω (2.5A) 10Ω-20KΩ (<5mA) |
Accuracy | ±(0.2%+2 Readings) |
Operating temperature | -20~40ºC |
Ambient humidity | ≤80%RH,(non condensed) |
Power supply | Li Rechargable battery |
| Prod Model: |
HD-05A |
| Power: |
Electronic |
| Accuracy: |
0.2%±2μΩ |
| Output Current: |
10A,1A,300mA,100mA,5 Ma |
| Usage: |
Auto Testing Machine |
| Operating Temperature: |
5.0~40ºC |
| Warranty: |
1 Year |
| Ambient Humidity: |
≤90%Rh |
| Resolution: |
0.1μΩ |
| Weight: |
13kg |
| Type: |
Resistance Tester |
