5CFS-P40 PP vertically install float water level switch for water

Name: 5CFS-P40 PP vertically install float water level switch for water
Brand: all-electronics-online.com
SKU: 823185815
Availability: InStock
Rating: 4.6 (92 reviews)

Price:	US $ 0.8-2/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

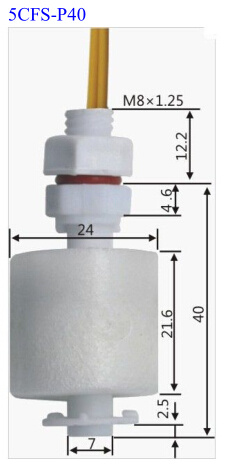

Prod Model:	5CFS-P40
Type:	water level sensor
Feature:	vertically installlation

Product Description

Product Description
Mini vertical float level sensor for water tank
Specification:

Product Name	Mini vertical float level sensor for water tank
Switch Power (max)	10W / 50W
Switch Voltage (max)	DC220V AC140V / DC220V AC250V
Switch Current (max)	0.5A / 1A
Output signal	SPST NO/NC, SPDT
Working Temperature	-20~80ºC
Protection Grade	IP67
Float Material	PP
Connection	M8
Insert length	25mm,45mm, 100mm, 150mm, 200mm, 250mm......customized
Wires length	Standard length 350mm, longer is available

Introduction:
The working principle of vertical level switch is direct and simple. Set one point or multi-point of magnetic switch in sealed un-magnetic metal or industrial plastic tube. Fix the float with inner magnetic system in a certain place of magnetic switch in the pipe and let the float drift up and down; Utilize the inner magnetic system in the float to trigger the open and close of magnetic switch to operate and control the liquid level. Its simple working principle has been proved to apply in liquid measuring under various working conditions. It is flexible to produce 1-8 float points as per demand, so it has cost advantage comparing with other types of level switch. Multi-point float level switch is widely used in level control and alarm of all kinds of industry such as electronic, electric power, chemical, water treatment, water supply and drainage, dyeing, machinery etc.
Frequently Asked Questions

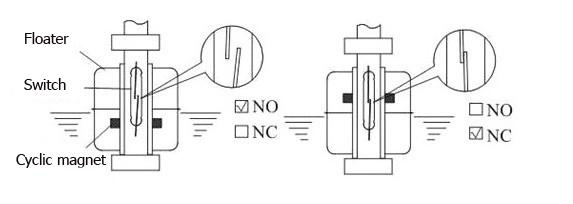

1.Action principle:

2.Application:
liquid level alarm and liquid level security control
Liquid level measurement
Container level monitoring
Applied in water dispenser, coffee pots, water-cooling fans, humidifiers, foot bath, smart toilet lid and other small appliances

About us:
Founded in2001, our company is specialized in magnetic switch sensors, such as magnetic contacts for door alarm, magnetic float level sensors for liquid level detection, magnetic proximity switches for industrial equipment, etc.

More information, welcome to visit our website www.e-5c.cn and contact me

Shenzhen E-5Continents Co., Ltd was founded in 2001, ISO9001 enterprise. Starting its business as a manufacture of reed switch sensors such as magnetic contacts, proximity sensors and float sensors.

Backed by high quality products of competitive prices, our factory has become an appointed manufacturer by a number of famous domestic and overseas security and electrical enterprises. And, most of our door contacts are CE-approved and RoHS-compliant, FCC aproved.

Facing the rapid development and various demands of our customers, we have also started researching and developing security accessories such as panic buttons, strobe lights, horns, smoke detectors, alarm panels and more. To learn more information about us, call our sales team today.
