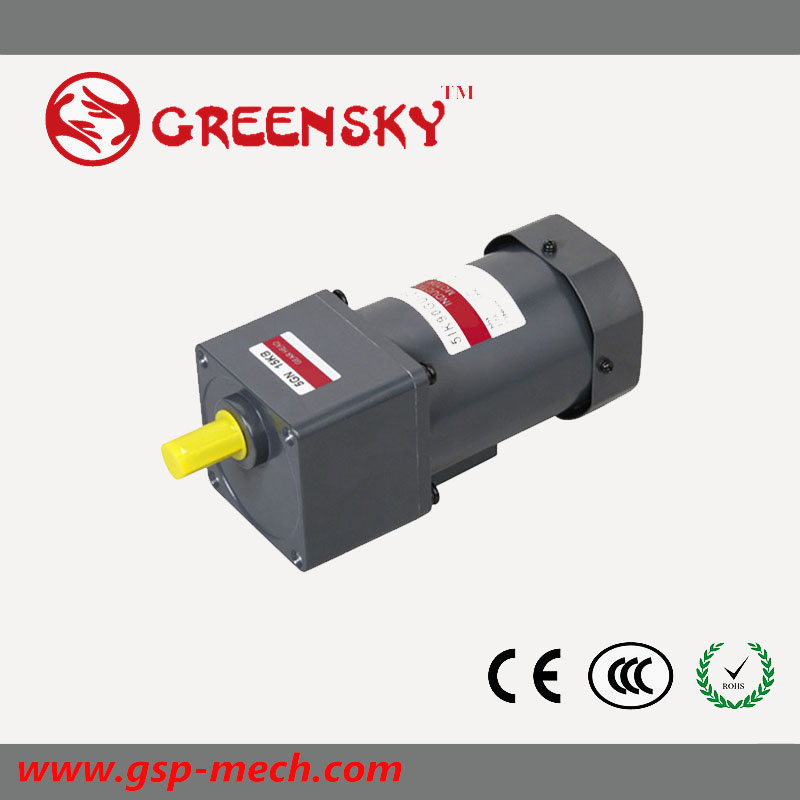

5ik90gu-Aft 90W 90mm AC Induction Motor

Name: 5ik90gu-Aft 90W 90mm AC Induction Motor
Brand: all-electronics-online.com
SKU: 743582995
Availability: InStock
Rating: 4.5 (138 reviews)

Price:	US $ 24.0-25.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Introduction
Reversible motor has a friction brake at the back of the motor body, which is designed for applications where reversal of direction is frequently required. The reversible motor is like induction motor that started by the capacitor and has a same torque characteristic with the induction motor. But the reversible motor is designed with a higher starting torque to increase the instant reversal features.

Specifications
1. Dimensions of device: Dia90mm
2. Rated Power: 90W
3. Voltage: 1ph110
4. CCC, CE, UL, CU
5. Can be customized

Greensky's advantage
On the site you can find a range of renewable products including ac/dc motor, ac induction motor, reversible motor, blake motor, speed motor, ac angel motor, gear motor, planetary gear box, worm gear box and their relevant components.

If you have any other questions, please feel free to contact us.

Model		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Lead Wire Type	Terminal Box Type
5IK90GU-AF (5IK90A-AF)	5IK90GU-AFT (5IK90A-AFT)	90	1ph100	50	1.55	450	700	1250	25.0
				60	1.85		570	1550
5IK90GU-EF (5IK90A-EF)	5IK90GU-EFT (5IK90A-EFT)	90	1ph110	60	1.40	500	570	1550	20.0
			1ph120		1.45
5IK90GU-CF (5IK90A-CF)	5IK90GU-CFT (5IK90A-CFT)	90	1ph220	50	0.72	450	700	1250	5.0
			1ph230		0.70
5IK90GU-HF (5IK90A-HF)	5IK90GU-HFT (5IK90A-HFT)	90	1ph220	60	0.71	450	570	1550
			1ph230		0.75
5IK90GU-SF (5IK90A-SF)	5IK90GU-SFT (5IK90A-SHT)	90	3ph220	50	0.60	1350	700	1250	_
				60	0.55	1100	570	1550

Prod Model:	5IK90GU-AFT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
All Technical Data:	Can Be Customized
Brand:	GS

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.

Introduce: Greensky Mechanical Co., Ltd is a subsidiary company of Greensky Power which is producing AC and DC gear motor, gearbox and motor, and it has capability to design and develop customized product with high quality.

Philosophy: We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

GS motor makes the cool mechanism human by progress in thchnology and products innovation. GS bases on talents. Products are the morality of man. Wisdom and passion of us are the core power. GS

Motor has made her own stronger through the long-term experience and exerise. GS believes that we raise ourself continuously in future. GS will go on innovating forever.
