5kw off Grid 48VDC 220VAC Hybrid Solar Power Inverter with Built-in Charge Controller for Solar Power System

Prod Model:	NKW-5KW
Name:	Hybrid Solar Power Inverter
Snat/OEM/ODM:	Accept
Input Voltage:	85-138VAC/170-275VAC
Output Waveform:	Pure Sine Wave
Output Frequency:	50/60Hz
Efficiency:	>85%(80% Resistive Load)
Overload:	110-120%/30s;>160%/300ms;
Company:	Manufacturer&Trading
Application:	Commerical, Industry
MOQ:	1 Piece

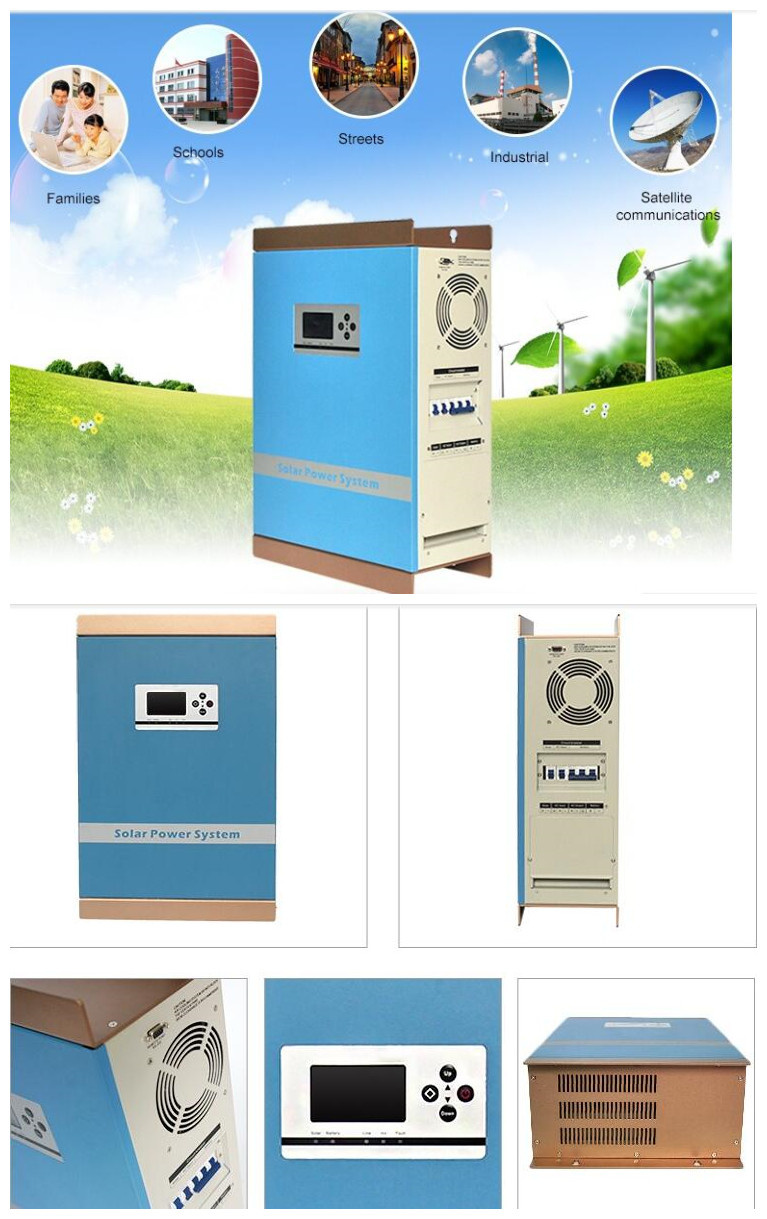

Product Description

            5KW off grid 48VDC to 220VAC hybrid inverter with built-in charge controller

Product overview:
The Hybrid Solar Power Inverter is an integrated intelligent inverter with built-in charge controller system designed for large photovoltaic power.Based on double MCU intelligent control technology,it provide customers with the best experience.
The hybrid solar power inverter applies to different types of loads because of its pure sine wave output.Its mains supply preferred mode,saving mode and battery preferred mode are all settable,thus making it easy to meet the different application needs of users.It has intelligent optimization SOC control and independent three-stage photovoltaic charge management for battery to improve charge efficiency.LCD display realize the visualization of operation status of equipment.It is widely applied to large solar power generation occasions including families,schools,streets,frontier defense,pasturing areas,industrial and mining enterprises,Satellite communications equipment,etc.

Main features:
*Excellent performance because of double MCU intelligent control technology.
*A wide range of applicable loads because of pure sine wave AC output.
*Mains supply preferred mode,saving mode and battery preferred mode are all settable,thus making it easy to meet the different application needs of users.
*Excellent charge efficiency and a longer battery life because of intelligent optimization SOC control and independent three-stage photovoltaic charge management.
*Full digital LED display for visualization of operation status of the equipment.
*Overprotection functions(overcharge protection,overdischarge protection,overload protection,short circuit protection and overtemperature protection).

Technical Parameters:

Mode:NKP-		NKP-4KW
Rated power		4000W
Battery	Rated voltage	48VDC/96VDC
Controller	solar input voltage	<25V;×2/24V;×4/48V;×8/96V;
	Charge current	20-60A
	Voltage of boosting charge	14.2V;×2/24V;×4/48V;×8/96V;
	Voltage of direct charge	14V;×2/24V;×4/48V;×8/96V;
	Voltage of floating charge	13.8V;×2/24V;×4/48V;×8/96V;
Inverter	Input voltage	85-138VAC/170-275VAC
	Input frequency	45-65Hz
	Charge current	30A(default) -C0-C6
	Battery type	U0-U7 (settable)
	Output voltage	110VAC/220VAC;±5%( inversion mode)
	Output frequency	50/60Hz±1%( inversion mode)
	Output waveform	Pure sine wave
	Switching time	<10ms( typical load)
	Efficiency	>85%(80% resistive load)
	Overload	110-120%/30S;>160%/300ms;
	Protection function	Battery overvoltage protection,battery undervoltage protection,overload protection,short circuit protection,overtemperature protection,etc.
Ambient temperature for operation		0-40ºC
Ambient temperature for storage		-15 - +50ºC
Relative humidity for operation/storage		0-90%(no condensation)
External dimension(mm)		175*350*550mm

Company Information

Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. As a world's leading supplier for solutions for electric energy and new energy, SNAT has powerful strength and is engaged in field of solar inverters, hybrid solar inverters with built-in solar controller, solar controllers, UPS, which are used for household, telecommunication, electricity, infrastructure and industrial markets. At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. We have professional technical engineer with more than 10 years technical experience to develop and design solar products.
Equipment Connection Diagram

FAQ:

Q1:What is the warranty of your product?

 A:Quality warranty for 12 months; parts will be shipped free during warranty period.

Q2: Can you do OEM?

A:yes,we can offer the OEM service.

Q3 What is your delivery time?

A:Within 5 day after receive advanced payment.

Q4 What minimum order do you require?

A:1 piece

Q5 Why choose us?

1)Prompt delivery and good after-sale services.
2)We have our own factory,the selling prices is competitive.
3)All of our products have CE certification,ISO9001:2008,RoHS.
4)80% new materials for production and superior quality.
5)professional engineer designers.
