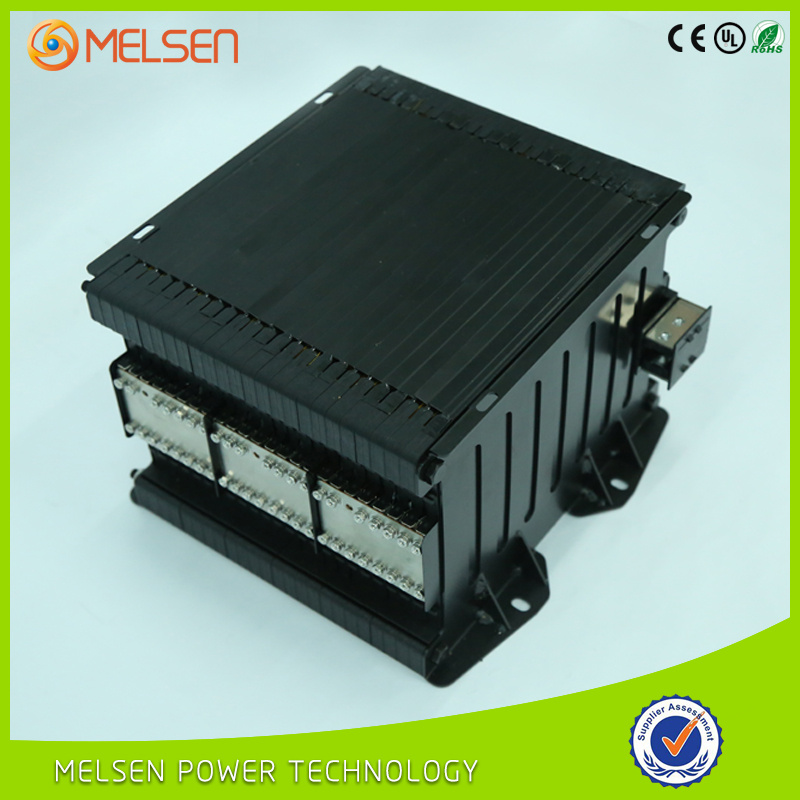

5kwh 24V 200ah Li-ion Battery Pack for Home Solar SystemMelsen is a pioneer in the lithium battery market and a unique lithium battery solutions company. LiFePo4 and NMC(Li(NiCoMn)O2) are the major material.
Lithium polymer battery modules in parallel or in series, can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station, E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.Description of 24v 200ah li-ion battery pack
Specification of 24v 100ah li-ion battery packMelsen uses Lithium Iron Phosphate (LiFeP) batteries for electric vehicle conversions. The battery cells utilize the latest advancements in nanotechnology.
These cells are very safe in normal operation, DO NOT cause fires as the early Lithium Phospate batteries.
The selected batteries solve the Safety concerns of being in an Electric Vehicle (EV) / Electric Car Conversion Kit, every cell has a built-in safety device if punctured or damaged, will vent to the atmosphere making the cell much safer.
| 25.2V 200Ah lithium NMC battery pack |
| Mechanical | Cell & Method | NMC/ Li(NiCoMn)O2, 7S5P |
| Dimension(L*W*H) | 300 x 245 x 191 mm |
| Weight | 28KG |
| Electrical Characteristics | Rated Capacity | 200Ah |
| Min Capacity | 200Ah |
| High Rate Discharge Capacity | > 90% Rated Capacity |
| Discharge Capacity @ -20ºC(-4ºF) | > 70% Rated Capacity |
| Norminal Voltage | 25.2V |
| Energy | 5040Wh |
| Internal Impedance(@ 1000Hz.) | ≤20 mΩ |
| Cycle Life | >2000 Cycles @ 1C 100% DOD |
| Months Self Discharge | ≤ 5% @ 25ºC(77ºF) |
| Efficiency of Charge | 100% @ 1/3C |
| Efficiency of Disharge | 95% @1C |
| Standard Charge | Max Charge Voltage | 29.4V |
| Charge Current | 1/2C, 100A |
| Max Charge Current | 200A |
| Standard Discharge | Standard discharge Current | 200A |
| Max Discharge Current | 3C,600A |
| Discharge Cut-off Voltage | 19.25V |
| Environmental | Charge Temperature | 0 ºC to 45ºC(32ºF to 113ºF) @ 65±20%Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4ºF to 140ºF) @ 65±20%Relative Humidity |
| Storage Temperature | ≤ 1 Month, -20ºC to 60ºC(-4ºF to 140ºF) @ 65±20%Relative Humidity |
| ≤ 6 Month, -20ºC to 30ºC(-4ºF to 80ºF) @ 65±20%Relative Humidity |

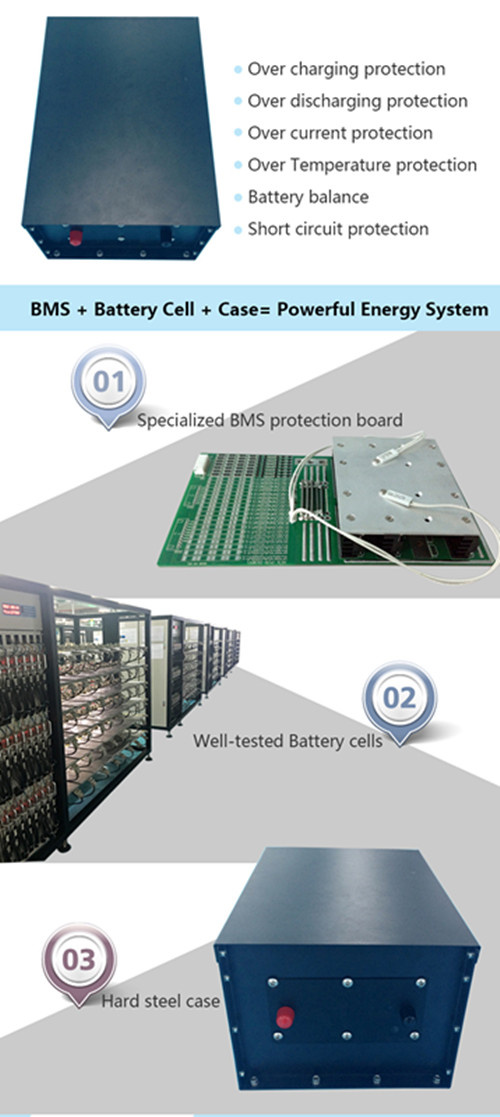

Advantages of 60v 50ah li ion battery pack
| Type of battery | Application area | Item | Capacity(Ah) | Nominal Vltage(V) | Max charge current(A) | Max discharge current(A) | Weight(g)≤ | Demension H*W*L (mm)≤ | Working Voltage range(V) | Lifespan @ 100%DOD ≥ |
|
| LiFePO4 Series | Electric car
E-bike
E-scooter
E-tool
Solar storage | F1070142 | 10 | 3.2 | 10 | 30 | 265 | 10*70*142 | 2.5~3.65 | 2500 |
| F9088178 | 12.5 | 3.2 | 12.5 | 37.5 | 280 | 9.0*88.5*179.5 | 2.5~3.65 | 2500 |
| F90137232 | 25 | 3.2 | 25 | 75 | 550 | 9.0*137.5*232.5 | 2.5~3.65 | 2500 |
| F90160227 | 30 | 3.2 | 30 | 90 | 640 | 9.0*160.5*228.5 | 2.5~3.65 | 2500 |
| F9514264 | 33 | 3.2 | 33 | 99 | 700 | 9.5*145.5*266.5 | 2.5~3.65 | 2500 |
| NMC Series | T8088178 | 12.5 | 3.65 | 12.5 | 37.5 | 260 | 8.0*88.5*179.5 | 2.75~4.2 | 2000 |
| T8592232 | 20 | 3.65 | 20 | 60 | 385 | 8.5*92*232 | 2.75~4.2 | 2000 |
| T43188236 | 20 | 3.65 | 20 | 60 | 400 | 4.3*188*236 | 2.75~4.2 | 2000 |
| T65188236 | 30 | 3.65 | 30 | 90 | 600 | 6.5*188*236 | 2.75~4.2 | 2000 |
| T85188236 | 40 | 3.65 | 40 | 120 | 795 | 8.5*188.5*236.5 | 2.75~4.2 | 2000 |
| T85190236 | 50 | 3.65 | 50 | 150 | 900 | 8.5*190*236.5 | 2.75~4.2 | 2000 |
Applications of 24v 100ah li-ion battery pack
Why choose us?
Do the batteries have a warranty?
§ Yes, currently 3 years; extended warranties are also available.
How long do the batteries last?
§ 10 years / 200,000 KM (124,275 miles) [calculated based on 100km battery pack]
§ 2000 charges & discharges at 100%.
§ This means approximately 10 years of normal use 200,000 KM. (124,275 miles)
§ Normal use is defined as 20,000km/year. (12,500 miles/year)
Do you use Lead Acid Batteries?
NO WE DO NOT! Our reasons:
§ Lead Acid Batteries do not allow as many charge & discharge cycles as advanced lithium batteries
§ Lead Acid batteries degrade after 300 charge cycles in an electric car until they expire, approximately 1.5 -2 years of driving
§ Not cost effective to change your battery pack every two years
§ Lead Acid is HEAVY, and reduces your range, doesn't supply continuous power

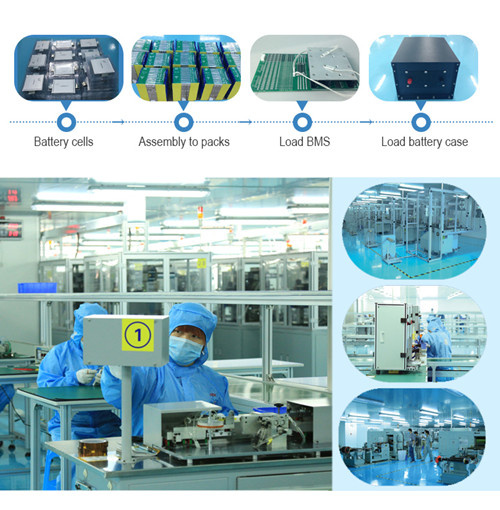

Company information
Melsen Customer Feedback
We are happy with your battery quality. I've also been very happy with your good support,
let's continue discussions and work on more,tks.----Michael (from Berlin,Germany)
Order information
Sample is avaliable and welcome.
Trade term: FOB Shenzhen or Guangzhou; EXW, CIF,DDU and DDP are available.
Delivery time: 7 working days for sample order, 15- 25 working days for mass order.
Welcome you to visit our production base and to check our production lines!
If any requirements on this 24v 200ah li-ion battery pack, please feel free to contact me without hesitate.
Salesman: Barry Chan
Tel: +86 185 7051 7761
Melsen power, the world motive power.
Melsen Power Technology Co, Ltd. Is a professional manufacturer engaging in research, development, production, marketing and service of lithium ion pouch battery cell, battery pack and battery management system. Those products are widely used in EV, HEV, UPS, solar and wind system and remote control products.
Located in Hunan National Economic Development Zone in 2012, Melsen power has registered capital of RMB 50 million and been proved by government to be a national high tech enterprise.

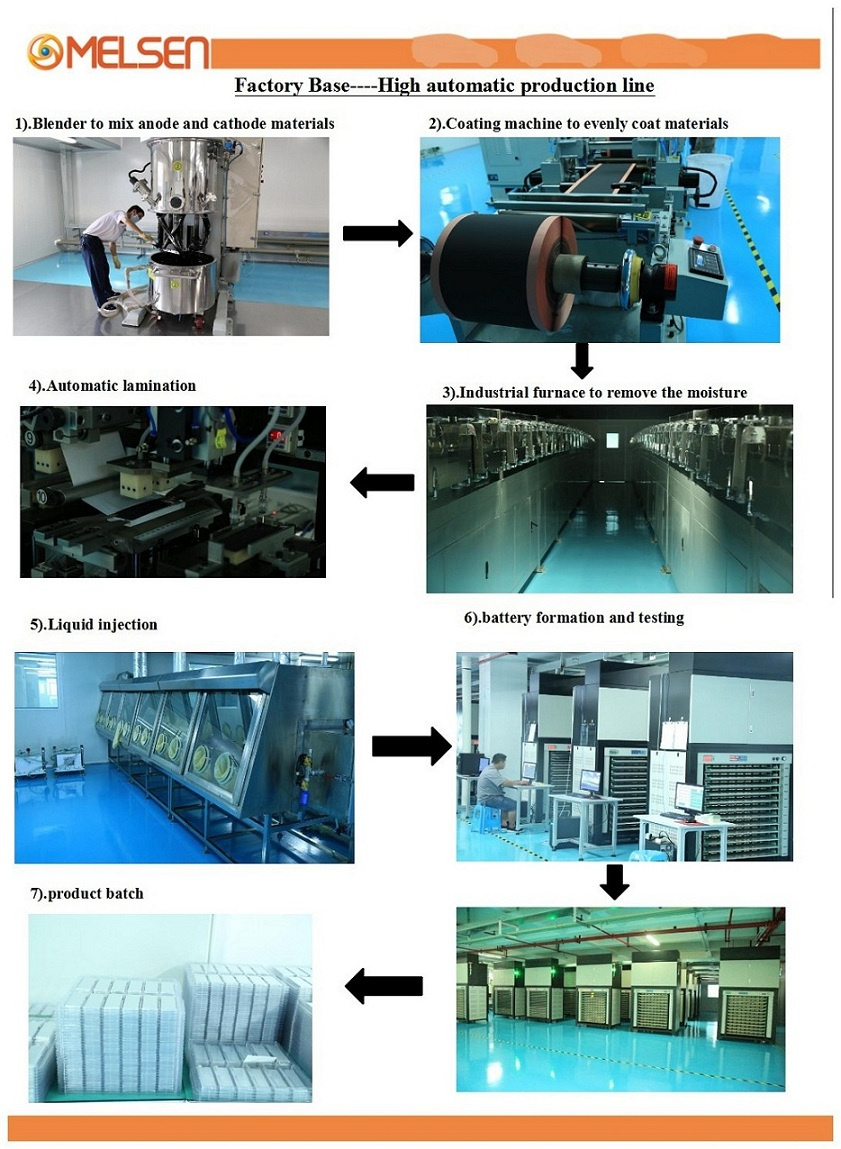

Melsen Power has more than 800 staffs, including 20 advanced managing people, more than 40 development and research engineers. It has building area of 120, 000 square meters and 3 factory bases, those are, Ningxiang base, Changsha base and Shengyang base.
We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1, I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.
Not only in local market, our products are also exported to abroad market like Euro, USA, India, Australia, Korea. Our sales volume reached 100 millions in 2015.
We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.
