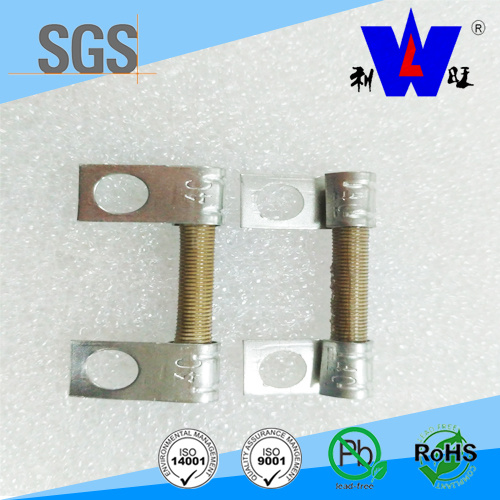

5W 40ohm +-5% Blower Motor Resistor for Auto Switch

Name: 5W 40ohm +-5% Blower Motor Resistor for Auto Switch
Brand: all-electronics-online.com
SKU: 811751965
Availability: InStock
Rating: 4.6 (63 reviews)

Price:	US $ 1.2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RX27-1
Environmental Certification:	ISO14000
Quality Certification:	ISO9001 Ts16949
Rated Power:	40W
Operating Temperature:	25-275
Temperature Coefficient:	+/-250ppm
Resistance Tolerance:	+/-5%, +/-10%
Products:	Automible Fan Resistor/Blower Motor Resistor
Resistance:	Fixed Resistor
Function For Resistance:	Protective Resistor
Installation:	DIP Resistor
Material:	Wire-wound Resistor
Package Type:	Throught Hole
Type:	Humidity Sensitive Resistor
Application:	Auto
Brand:	Liwang

Product Description

Automible Fan Resistor/Blower Motor Resistor
1. Low resistance
2. Used for automobile

RFC automobile fan resistors
Resistance: 40Ω
Performance: Power 5 W

Item	Tested	Requirement
Insulauon resistance	DC500V1minute	≥ 100MΩ
Dielectric strength	AC1500V1minute	No daamage Δ ≤ R± (1%R+0.05Ω )
Short time overload	10 Rated Power 5S	No daamage Δ ≤ R± (2%R+0.05Ω )
Terminal strength	10N1minute	No daamage Δ ≤ R± (1%R+0.05Ω )
Resistance to soldring heat	260° c5s	Δ ≤ R± (1%R+0.05Ω )
Vibration	10-500Hz 0.75MM x/y/z ail 6h	Δ ≤ R± (1%R+0.05Ω )
Solder ability	235° c± 5° c2s+0.5s	Covered with new solder by 95% at least
Moisture resistance	RH90-95% 40° c96h	Δ ≤ R± (5%R+0.1Ω )
Load life	25° c 1.5h on 0.5h off 1000h	Δ ≤ R± (5%R+0.1Ω )
Temp. coefficient		≤ ± 250PPM/° c

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
