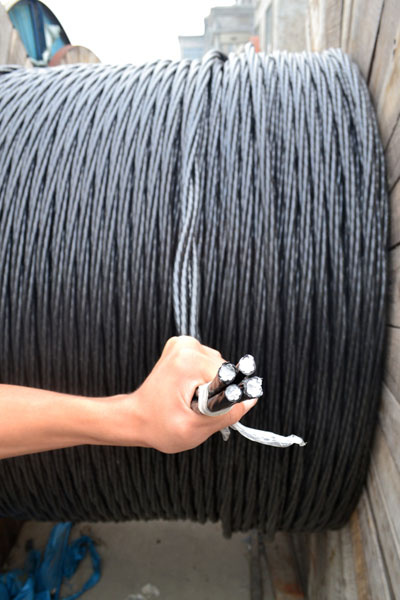

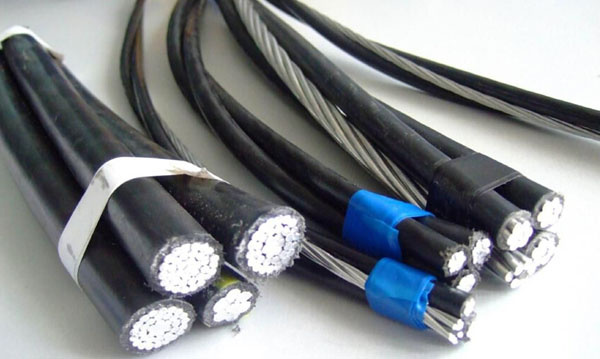

0.6-10kv Aluminum/Copper Overhead ABC Power Cable
Price: |
US $ 0.5-10/Meter |
Trade Terms: |
FOB,CIF |
Min Order: |
100/Meter |
Pay Type: |
L/C,T/T |
Prod Model: |
AWG SWG |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
According to Your Requirements |
MOQ: |
1000m |
Delivery Detail: |
Within 20 Days or Based on Your Quantity |
Packing Detail: |
Fumigated Wooden Drums or Iron-Wooden Drums |
Application: |
Car |
Voltage: |
Low and Medium Voltage Cable |
Current: |
AC Cable |
Insulation Material: |
XLPE |
Certification: |
CCC |
Product Description
PRODUCTION EANGE:
POWER CABLE;CONTROL CABLE;INSTRUMNT CABLE;
ALUMINUM CABLE;ALUMINUMN ALLOY CABLE;ABC CABLE;AAAC/ACSR/AAC;
RUBBER/PVC CABLE;COMPUTER CABLE;
COMMUNICATION CABLE;THHN THWN;SPT1/2/3;CAT5/6/6A
ELECTRIC WIRE AND SO ON.CABLE TRAY
Specifications:
Low Smoke Flame-retardant XLPE Insulated Cable 120mm2
10 year's production experience
Free sample
Quick delivery
1. Application:
We could produce all kinds of power cables with rated voltage (U0/U) from 0.6/1 kv to 1.8/3kv, 3.6/6kv, 3.6/7.2kv, 6/10kv, 6/12kv, 8.7/15kv, 8.7/17.5kv, 12/20kv, 12/24kv, 18/30kv, 18/36kv in transmission & transformation line for water-proofing purpose.
2. Standard:
And our products could be designed to comply with IEC standard or CE, DIN, VDE, BS, AS, GB, NZS, GOST, NFC, UL, ANSI standards as customer's request.
3. Outstanding Performance:
This kind of cable has special fire-resistant coating, so it has excellent heat-insulation and fire-resistant performance. It is mainly used in fire control, monitor, and alarming device in modern city buildings and places that have strict safety requirements, such as emergency lightings, control and power circuits, power stations, fire alarm systems, underground tunnels, lifts, escalators, and high-rise buildings.
In firing, this kind of cable won't spread combustion and release no halogen and low smoke, it is nontoxic, could protect people from being suffocated, and noncorrosive, could help instruments avoid being damaged. Compared with PVC cable, XLPE cables has higher long-term working temperature and larger current rating, under same condition, the XLPE insulation layer is thinner than that of either PE or PVC, this not only improves quality and properties of the cable but also reduce our production cost.
4. Product Features:
1) Min. Ambient temperature for installation: 0 ° C
2) Max. Normal continuous operating temperature: 90° C
3) Max. Permissible conductor temperature at short circuit (5s. At longest): 250° C
4) Permissible bending radius:
Single core: ≥ 20(d+D)± 5%
Three core: ≥ 15(d+D)± 5%
(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor)
5. Nominal Cross-section Area:
We could design and produce cables with nominal cross-section area from 1.5mm2 2.5mm2 to 4mm2 6mm2 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2 95mm2 120mm2 150mm2 185mm2 240mm2 300mm2 400mm2 500mm2 630mm 800mm2
Number of cores and cross-section | Shape of conductor | Conductor diameter | Nominal insulation thickness | Diameter over insulation | Nominal thickness sheath | Outer diameter (approx.) | Bending radius (min.) | Weight (approx.) |
| | (approx.) | | (approx.) | | | | |
mm2 | | mm | mm | mm | mm | mm | mm | kg/km |
1x35/16 | RM | 7.2 | 3.4 | 15.3 | 2.5 | 24 | 360 | 904 |
1x50/16 | RM | 8.2 | 3.4 | 16.3 | 2.5 | 26 | 390 | 1039 |
1x70/16 | RM | 9.8 | 3.4 | 17.9 | 2.5 | 27 | 405 | 1271 |
1x95/16 | RM | 11.3 | 3.4 | 19.4 | 2.5 | 29 | 435 | 1530 |
1x120/16 | RM | 12.8 | 3.4 | 20.9 | 2.5 | 30 | 450 | 1809 |
1x150/25 | RM | 14.2 | 3.4 | 22.3 | 2.5 | 32 | 480 | 2158 |
1x185/25 | RM | 15.8 | 3.4 | 23.9 | 2.5 | 33 | 495 | 2524 |
1x240/25 | RM | 18.3 | 3.4 | 26.4 | 2.5 | 36 | 540 | 3117 |
1x300/25 | RM | 20.7 | 3.4 | 28.8 | 2.5 | 38 | 570 | 3786 |
1x400/35 | RM | 23.3 | 3.4 | 31.4 | 2.5 | 41 | 615 | 4750 |
1x500/35 | RM | 26.5 | 3.4 | 34.6 | 2.5 | 44 | 660 | 5786 |

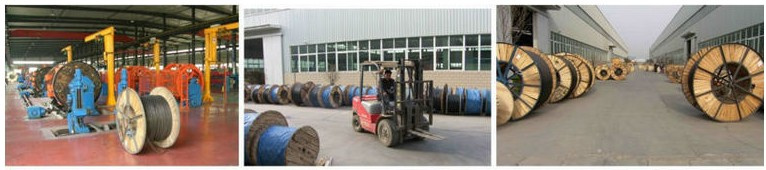

The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...
The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.
We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
