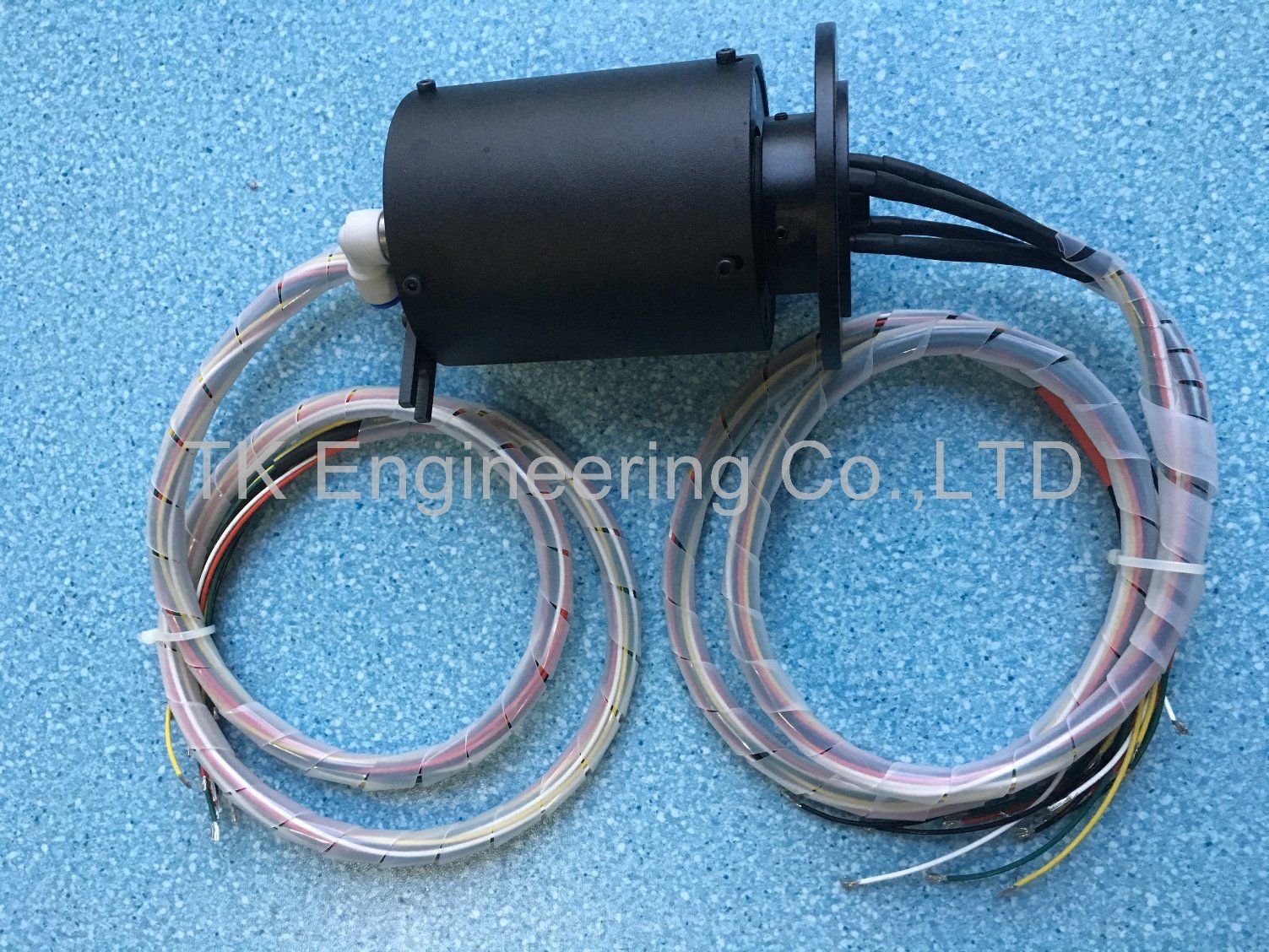

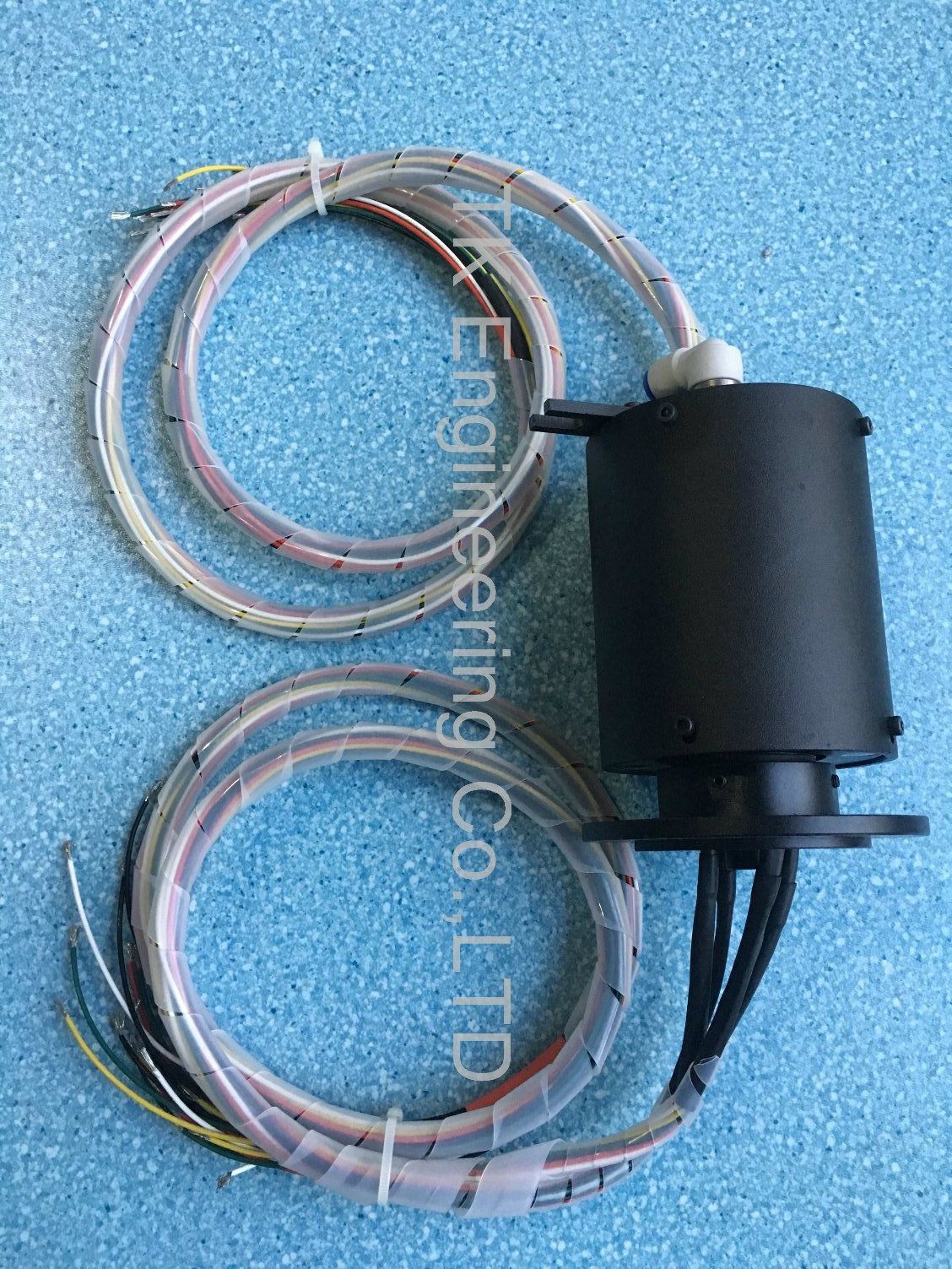

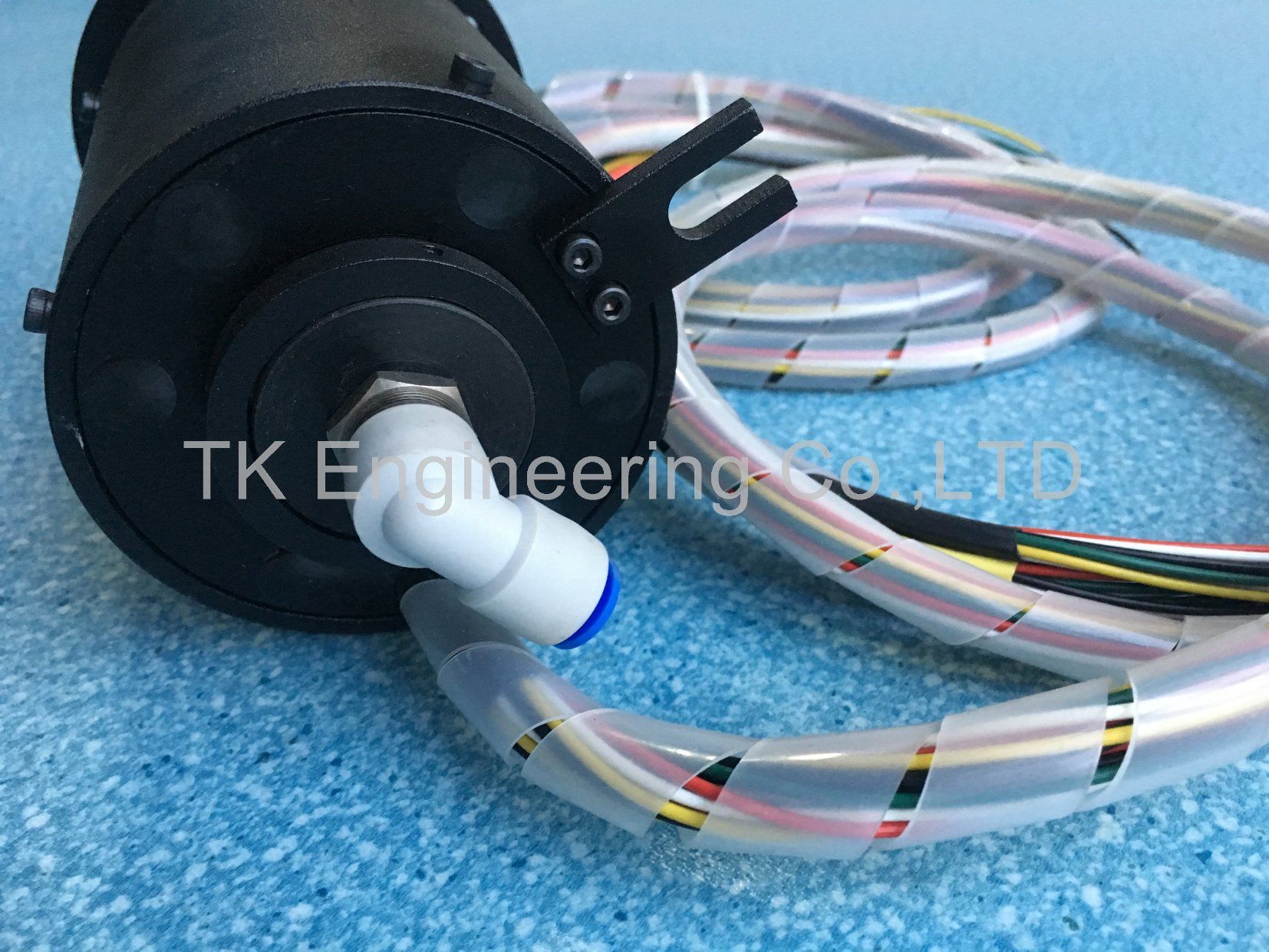

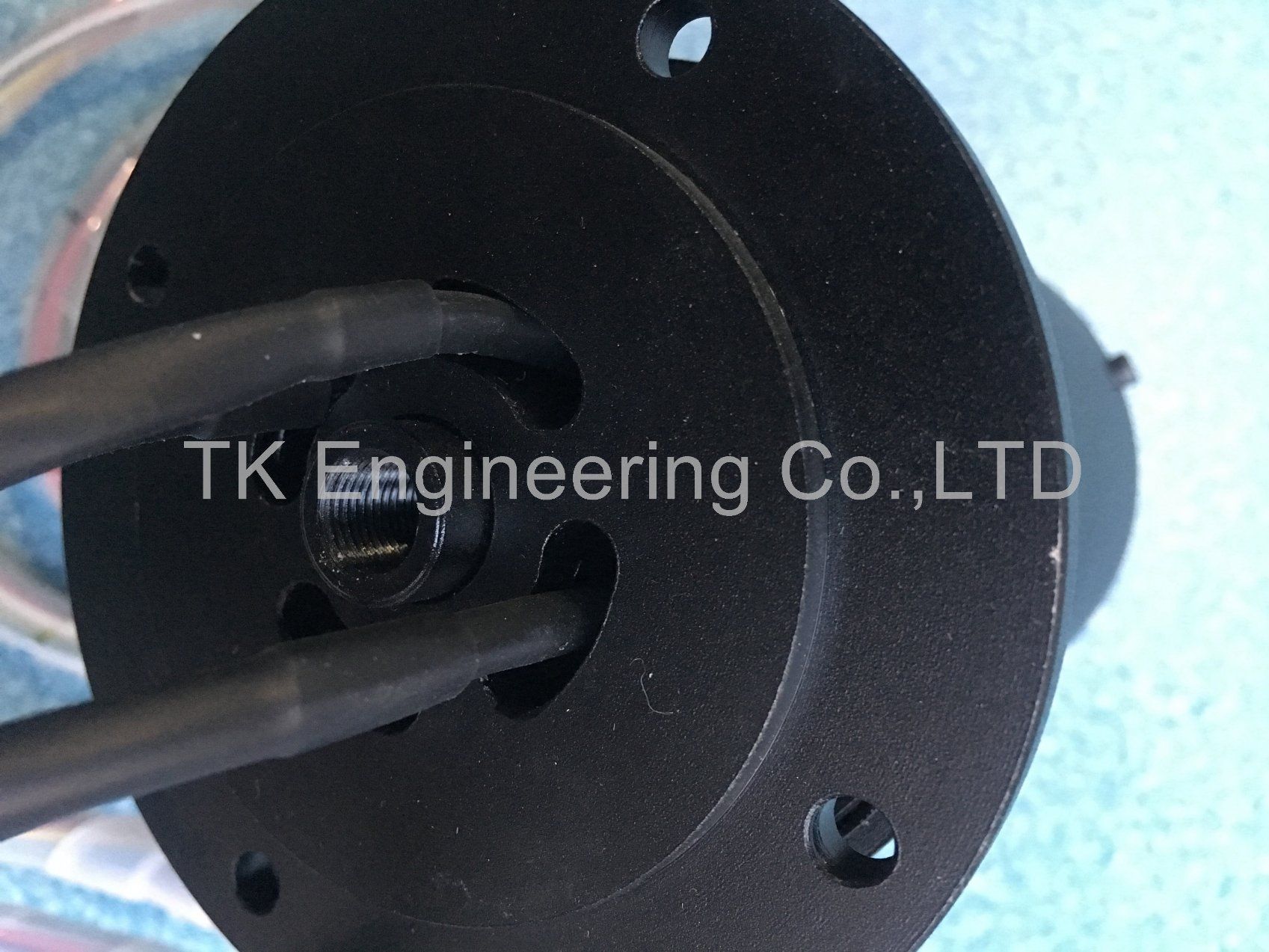

6~24 Circuits Slip Ring Gtk-25 Series Manufacture in China

Name: 6~24 Circuits Slip Ring Gtk-25 Series Manufacture in China
Brand: all-electronics-online.com
SKU: 837479525
Availability: InStock
Rating: 4.6 (106 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

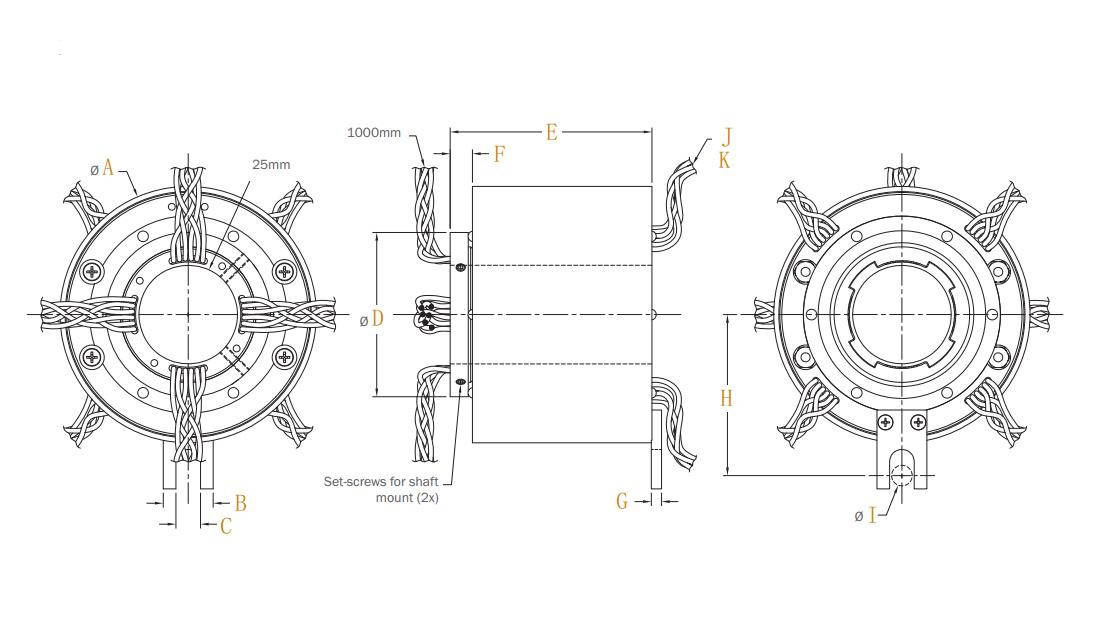

	GTK-25-6	GTK-25-12	GTC-25-18	GTK-25-24
A	81.06mm	81.06mm	81.06mm	81.06mm
B	16.00mm	16.00mm	16.00mm	16.00mm
C	8.00mm	8.00mm	8.00mm	8.00mm
D	55.00mm	55.00mm	55.00mm	55.00mm
E	55.30mm	78.10mm	100.90mm	123.70mm
F	8.50mm	8.50mm	8.50mm	8.50mm
G	4.00mm	4.00mm	4.00mm	4.00mm
H	52.00mm	52.00mm	52.00mm	52.00mm
I	6.00mm	6.00mm	6.00mm	6.00mm
J	6 Circuits	12 Circuits	18 Circuits	24 Circuits
K	10 Amps	10 Amps	10 Amps	10 Amps

Maximum speed	250RPM
Standard Number of Circuits	6,12,18,24
Voltage	600VAC or 24VDC
Continuous Amps	10 Amps
Cable Specification	Telfon cable
Contacting Material	Gold
Working Environment	-40°C~+80°C

Our Products Are Widely Used in: Security, Factory Autonation, Electric Instrumentation, Medical, Aerospace, Civil and Military Fields. Such as: Crane, Giant Wheel, Cotton Picker, Medical Equipment, Strander, Webcam, Automatic Revolving Door, Amusement Equipment, Irrigation Machine.....

Prod Model:	GTK-25
