6.5HP Gx200 Single Cylinder 4 Stroke Gasoline Engine
| Price: |
Negotiable/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HS200 |
| Cylinder Dia. * Stroke: |
68mm * 54mm |
| Compression Ratio: |
8.5:1 |
| Ignition: |
Non-Contact Transistor Magneto |
| Fuel Capacity: |
3.6L |
| N.W./G.W: |
15kg / 16kg |
| Description: |
Boat Engine/Small Gasoline Engine/4-Stroke Engine |
| Displacement: |
196ml |
| Max. Power Output: |
6.5HP / 4.5kw / 3600rpm |
| Starting Mode Options: |
Recoil / Electric |
| Certificate: |
Ce |
Product Description

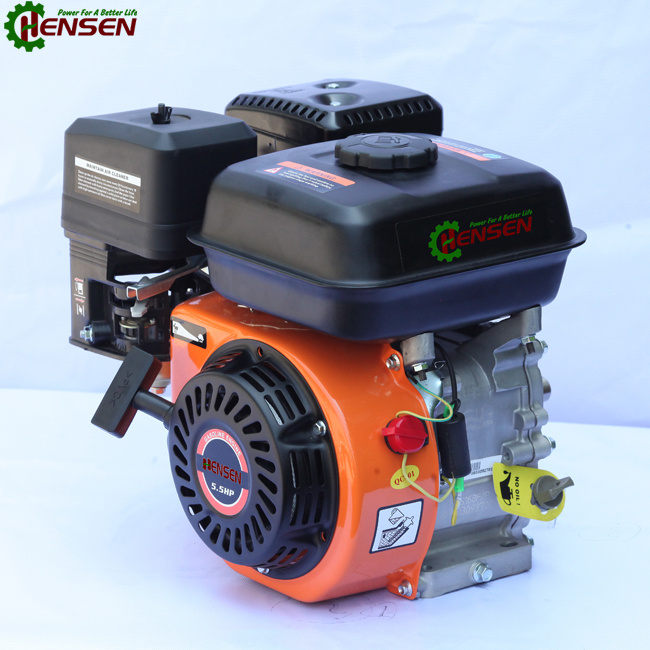

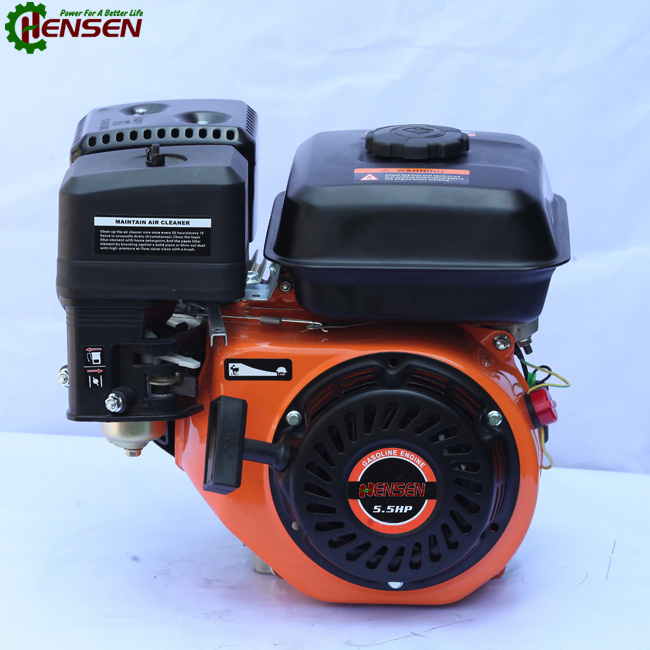

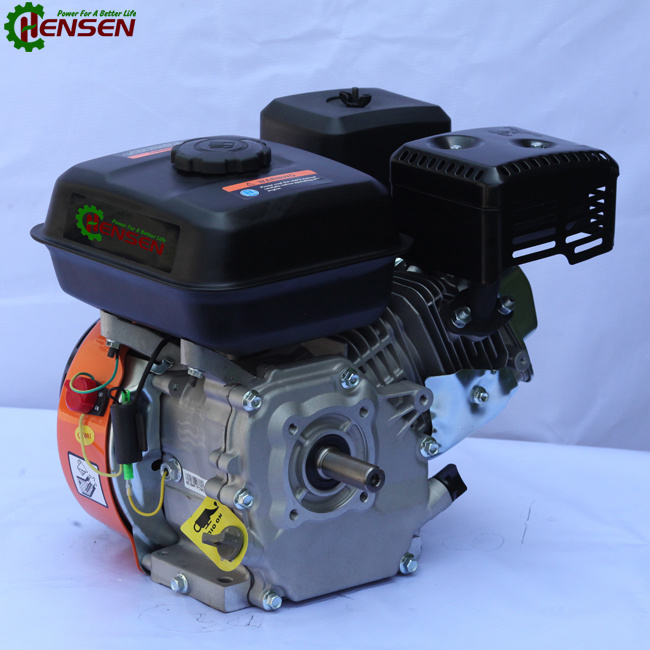

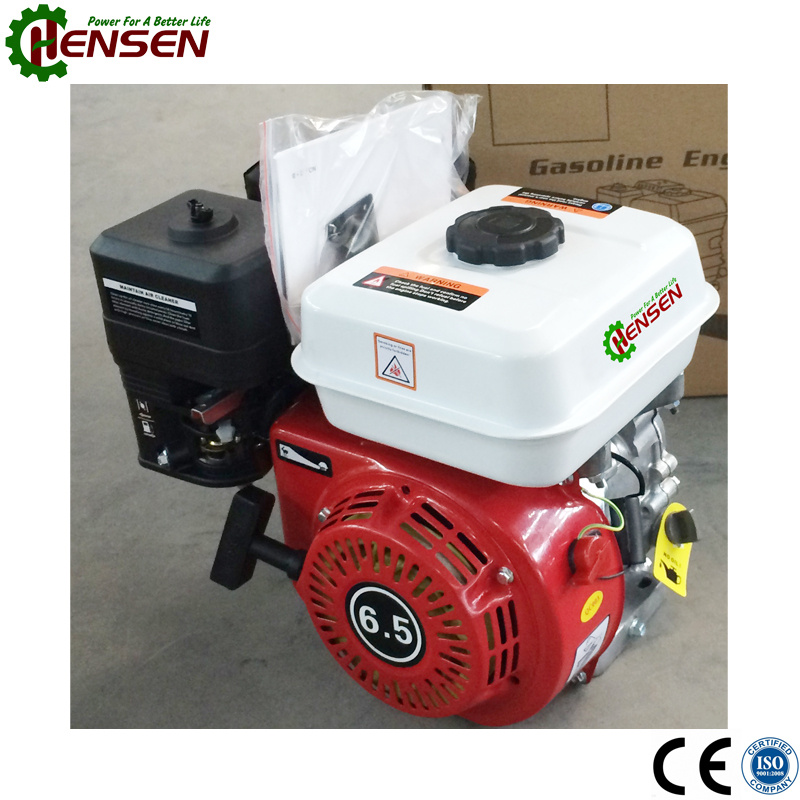

Product Display
Technical Specifications| Model | HS200 | HS210 | HS270 |
| Bore×Stroke | 68x54mm | 70x55mm | 77x58mm |
| Displacement | 196cc | 212cc | 270cc |
| Compression Ratio | 8.5:1 | 8.2:1 | 8.2:1 |
| Max.Theoretical power | 6.5Hp(4.5kw)
/3600rpm | 7Hp(5kw)
/3600rpm | 9Hp(6.5kw)
/3600rpm |
| Rated theoretical power | 5Hp(3.8kw)
/3600rpm | 5.4Hp(4.0kw)
/3600rpm | 7Hp(5.0kw)
/3600rpm |
| Max.torque | 11N.m/2500rpm | 12N.m/2500rpm | 18N.m/2500rpm |
| Fuel tank capacity | 3.6L | 3.6L | 6L |
| Engine oil capacity | 0.6L | 0.6L | 1.1L |
| Oil consumption | 395g/kw.h | 395g/kw.h | 374g/kw.h |
| Ignition system | Transistor magneto |
| Starting system | Recoil start or Electric start(Optional ) |
| Engine Type | OHV,Single-cylinder,4-stroke,forced air cooling |
| N.W./G.W | 16/18kg | 16/18kg | 27/30kg |
| Dimension(L×W×H) | 400x375x380 | 400x375x380 | 490x430x485 |
| 20FT(set) | 516 | 516 | 244 |
| Low speed | Optional |
| Model | HS390 | HS420 |
| Bore×Stroke | 88x64mm | 90x66mm |
| Displacement | 389cc | 420cc |
| Compression Ratio | 8.0:1 | 8.3:1 |
| Max.Theoretical power | 13Hp(8.5kw)
/3600rpm | 16Hp(9.0kw)
/3600rpm |
| Rated theoretical power | 11Hp(8.0kw)
/3600rpm | 11.4Hp(8.5kw)
/3600rpm |
| Max.torque | 22N.m/2500rpm | 25N.m/2500rpm |
| Fuel tank capacity | 6.5L | 6.5L |
| Engine oil capacity | 1.1L | 1.1L |
| Oil consumption | 374g/kw.h | 374g/kw.h |
| Ignition system | Transistor magneto |
| Starting system | Recoil start or Electric start(Optional ) |
| Engine Type | OHV,Single-cylinder,4-stroke,forced air cooling |
| N.W./G.W | 29/32kg | 32/35kg |
| Dimension(L×W×H) | 490x430x530 | 490x430x530 |
| 20FT(set) | 244 | 244 |
| Low speed | Optional |

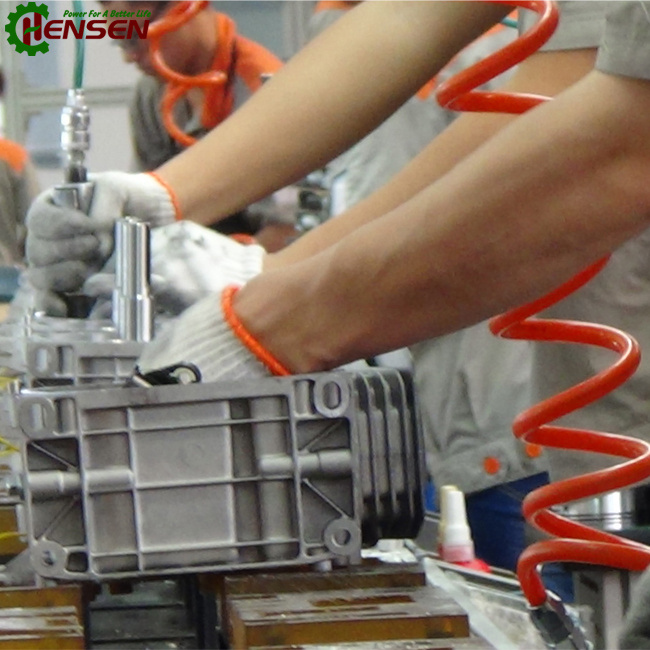

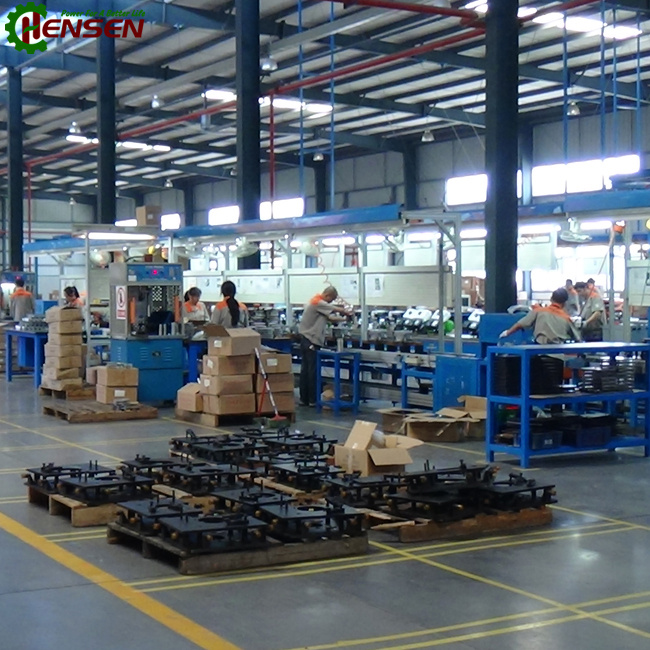

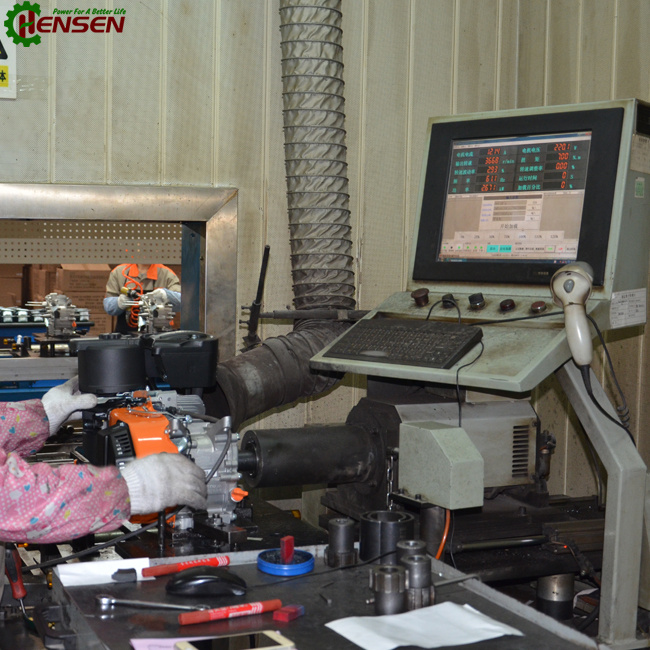

Factory & Workshop
About HensenHensen Industrial (HK) Limited is one of the fast growing companies in the field of general power machinery, garden and small agricultural machinery. Its manufacturing base is located in Chongqing city, China. With 7 years dedicated in the field, Hensenpower now becomes a professionally well-known brand with absolute advantage in R & D, marketing, and after-sale service. Chongqing is well known for its high quality industry of gasoline engine, gasoline generator, water pumps, power tillers etc. Since the establishment of our company, we aim at providing the world with high quality products at competitive prices. We always use raw materials of higher quality standard with improving processing instead of low quality which could not ensure the benefit of customers. For quality control, in order to ensure the quality of our products, we test each piece of our products before they are released to the market. Meanwhile, a well-educated and organized after-sale service team always provides professional maintenance, technical consultation and technical training.
We are always here looking for dealers from all over the world to cooperate with us for our high performance products at competitive prices.
FAQQ:Why Hensen?
A:We always make friends with our customers before doing business. We always consider our customers benefit as priority. And we always provide the best service to our customers.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Chongqing city, China, about 1 hour from the Jiangbei international airport.
Q:Do you provide OEM?
A:Yes, but we need your Certificate of Authorization of the OEM brand.
Q:How is your quality?
A: Totally reliable. We always use top quality materials, and we carrry out QC system, both outside our factory and inside our factory.
Q:How do your factory control quality?
A:From the internal parts to the outside packing, we not only make standard quality test but also think ahead for a better solution.Except company QC system, We have achieved CE, ISO9001:2008.
Q:How is your price?
A:We offer reasonable prices for the same level and competitive quality. The quality deserves our price.
Q:What is your warranty terms?
A: We provide one-year (since the date of bill of lading) warranty against the main parts (except the fast moving parts) of our products. During the one year, if the parts under warranty break, we will send replacement parts with the next shipment of goods.
Hensen Industrial (HK) Limited is one of the fast growing companies in the field of general power machinery, garden and small agricultural machinery. Its manufacturing base is located in Chongqing city, China. With 7 years dedicated in the field, Hensenpower now becomes a professionally well-known brand with absolute advantage in R & D, marketing, and after-sale service. Chongqing is well known for its high quality industry of gasoline engine, gasoline generator, water pumps, power tillers etc. Since the establishment of our company, we aim at providing the world with high quality products at competitive prices. We always use raw materials of higher quality standard with improving processing instead of low quality which could not ensure the benefit of customers. For quality control, in order to ensure the quality of our products, we test each piece of our products before they are released to the market. Meanwhile, a well-educated and organized after-sale service team always provides professional maintenance, technical consultation and technical training.
We are always here looking for dealers from all over the world to cooperate with us for our high performance products at competitive prices.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objectivce. To perfect our service, we provide the products with good quality at reasonable prices.
