6-DM-14 (12V14AH) Kinfon Long Life Deep Cycle Gel Battery

Name: 6-DM-14 (12V14AH) Kinfon Long Life Deep Cycle Gel Battery
Brand: all-electronics-online.com
SKU: 822954995
Availability: InStock
Rating: 4.3 (117 reviews)

Price:	Negotiable/Piece
Min Order:	4/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Performance:

High Capacity: Outside Formation with real capacity more than 100%, specific energy reach 35-38 wh/kg.
Long Cycle Life: 10% longer than similar products with special grid and plate technology to extend cycle life.
Safety and Maintenance Free: Unique design of safety valve, arrangement of any direction does not cause leakage.

Product Application:
Electric Bikes, Electric Scooters, electric cars
Electric Motorcycles, Electric Tricycles, golf cars
Battery-powered wheelchairs, traction, mowers
Electric Tools, electric sweeper, electric cooler/heater, etc
Other electric devices requires DC power supply
Green energy like solar power, UPS and storage power

Battery Specification				Battery Characteristics
Nominal Capacity			12V	Capacity	20hr		17AH
Nominal Capacity(2hr)			14AH		5hr		16AH
Dimensions	L(mm)		151		3hr		14.8AH
	W(mm)		98		2hr		14AH
	H(mm)		99	Open-circuit Voltage			13.1-13.5
	TH(mm)		101	Charging Voltage(V)	Float Charging		13.5-13.8
Weight(kgs)			4.3-4.4		Cycles V		14.5-14.8
Container Material			ABS	Max Discharging Current(A)			60A(5S)
Internal Resistance(mΩ)			≤20	Max Charging Current(A)			1.7A
Capacity at different temperature		40ºC	102%	Remain Capacity(2hr)		1 Months	90%
		25ºC	100%			3Months	80%
		0ºC	85%			6 Months	60%
Charging Curve				Battery Picture
12V14(4pcs/set) Phase I:The maximum charging current is 1.7A,voltage gradually increase to 14.4V. Phase II:Charging voltage gradually increases from 14.4V to 14.7V,when charge current gradually decreases to around 0.40-0.50A,converted to float (trickle)charge. Phase III:Constant charge Voltage13.75V.

Prod Model:	6-DM-14
Certificate:	SGS
Weight:	4.3-4.4kg
Capacity:	14ah
Delivery:	25 Days After Deposit
Payment:	L/C
Color:	Blue
Battery Handle:	No
Sealed Type:	Sealed
Maintenance:	Free
Case:	ABS
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Flat Battery
Rechargeable:	Chargeable

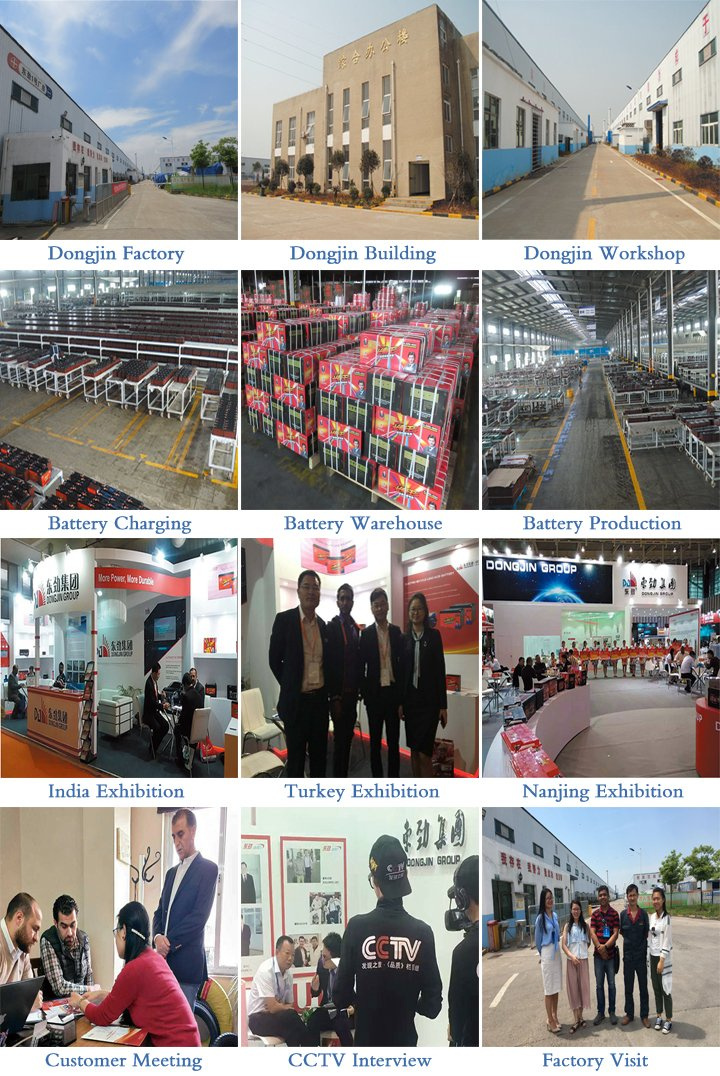

Dongjin Group, found in 1993, specialize in research, development, manufacturing and sales of lead-acid battery including globally known KINON and DONGJIN brand batteries. In 2012, our company establish factory in Jiangxi covered area of more than 200, 000, and in 2016 start the biggest battery production factory in Bangladesh with totally area more than 40000 square meters.

With independent R&D team, company have adopted advanced production equipment and testing methods, and effectively guarantee the quality of products, products with high capacity small volume, light weight, long lifespan, high performance, with excellent performance won the majority of consumer recognition and dependence. Widely used in automobiles, electric vehicles, electric power, telecommunication, UPS system, EPS system, security, electric tools, emergency lighting and etc. Fields.

Dongjin Group adhere to the "quality first, integrity and innovation" as the guiding principle, with excellent quality and first-class customer service to satisfy customer product quality requirements, from raw material procurement to made the process strictly and Dongjin Group has the QC team, first-class advanced assembly line, strict management system, as we move towards Europe, North America, Asia, more than 50 countries and regions in the middle-east and Africa customers provide quality and services.
