| Prod Model: |
12V-24V 6 Gang Red LED Rocker Switch Panel with 3. |
| Usage: |
Digital Products |
| Standard: |
Standard |
| Lamp: |
With Lamp |
| Color: |
Black |
| Certification: |
CE |
| Condition: |
New |
Product Description
6 Gang LED Auto Car Boat Rocker Switch Panel Ultra Slim Capacitive Touch Screen ON/OFF Panel w/ Fuse for Caravan Yacht 12V/24V
Product Description
Description
100% Brand New Marine Grade Product
Ultra Slim Face Plate
Compact Design Face Plate with almost no mounting depth required (less than 10mm).
Remotely installed controlled box with 1m flat connecting cable to connect face plate to control box, making the back of the cockpit space clean and with less wires (as seen with current switch panels)
12V & 24V DC Applications
Built-in resettable fuse (PPTC)
10 Amp rating per switch
LED Backlight (Switches from white to blue LED once switch is in use)
IP 66 Rating - Suitable for marine applications and installations
Heavy Duty 3M foam tape to assist in mounting faceplate.

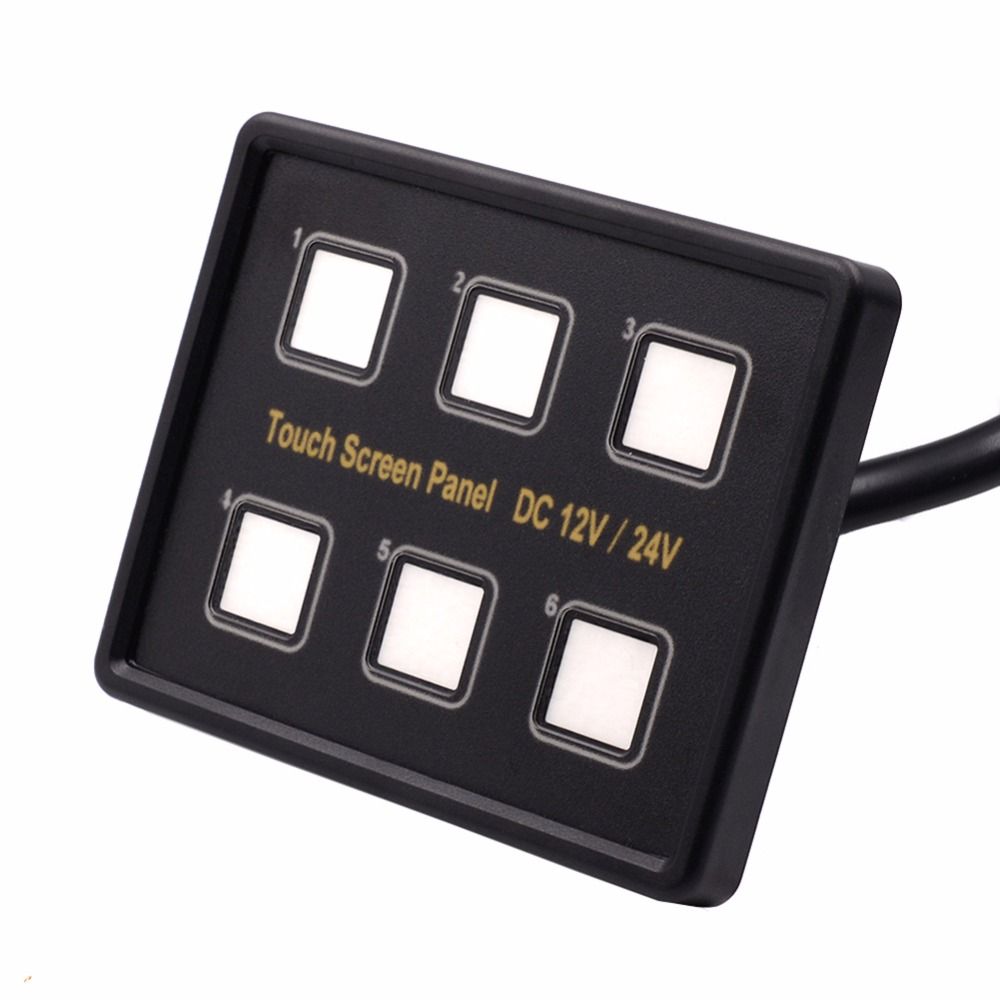

Touch Screen Panel:
Capacitive Touch Screen Panel
15-pin VGA Transmission Cable
Circuit Control Box
Electrical Characteristics:
Input:12V/24V DC
Output:12V 10A/24V 10A DC
(Full Load:12V / Total Current does not exceed 60A;10 Amp rating per switch)
(Full Load:24V / Total Current does not exceed 40A;10 Amp rating per switch)
Maximum Power:960W
Reverse Polarity Protection
Overvoltage Protection
Overcurrent Protection
Built In Resettable Fuse(PPTC)
Operating temperature:-10°C ~ +50°C
Hole Size:20*50mm
Installation Steps:
1.Location suitable position for the panel.Take not the panel size is 100mm(W)*80mm(H).
2.Cut out a 20mm H*50W hole for the wiring to run through the back of the control Panel.
3.Mount the control panel onto location with the supplied 3M Adhesive Sheet(this has been cut size with the 20mm*50mm hole to allow the wiring to pass through.
4.Mount control box at suitable location.
5.Connect the 15-pin VAG connection cable from the control panel to the control box.
6.Connect input cables(positive and negative)&also connect the output cables(positive)for the accessories, please not negative on the accessories is to go to an external buss bar(not supplied).
The rigid touch panel is designed for those with limited mounting space behind the cockpit console and those who are looking for the new style switch panel that reduces the mess of wiring at the back of the switch (that you get with current switch panels).

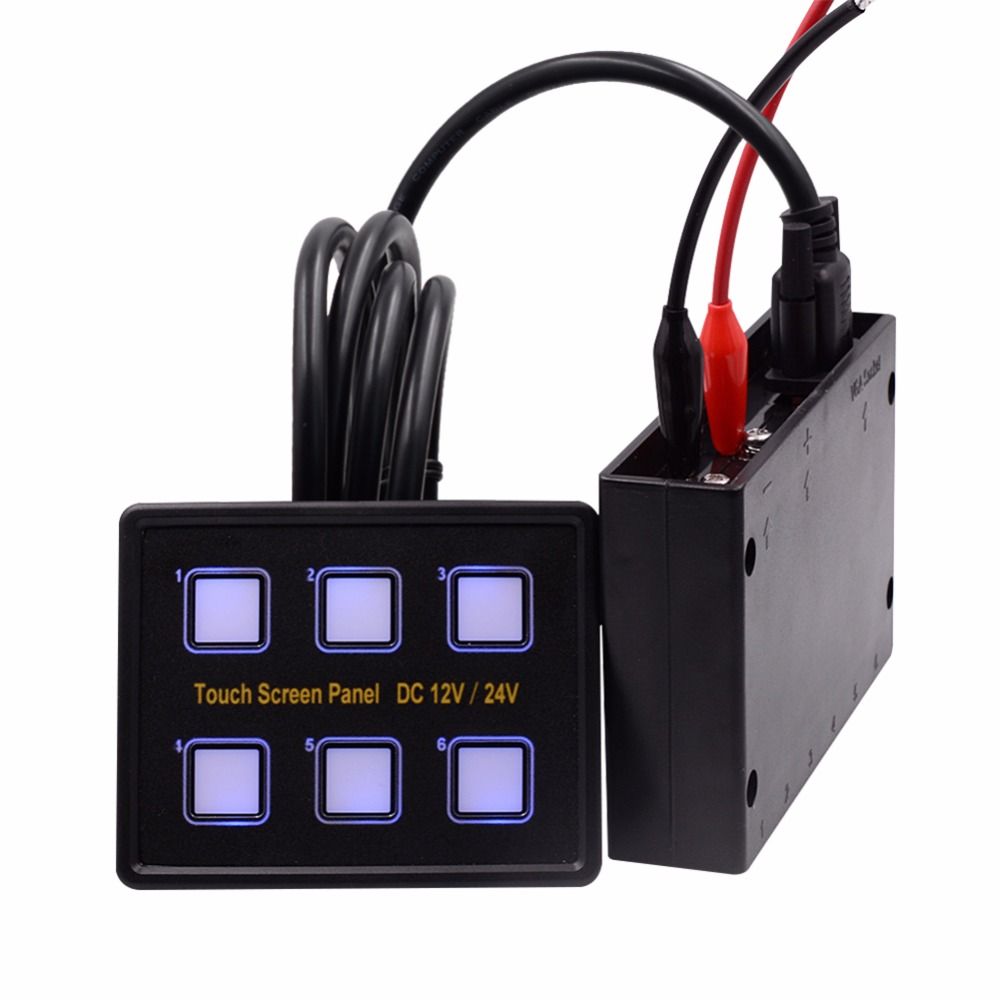

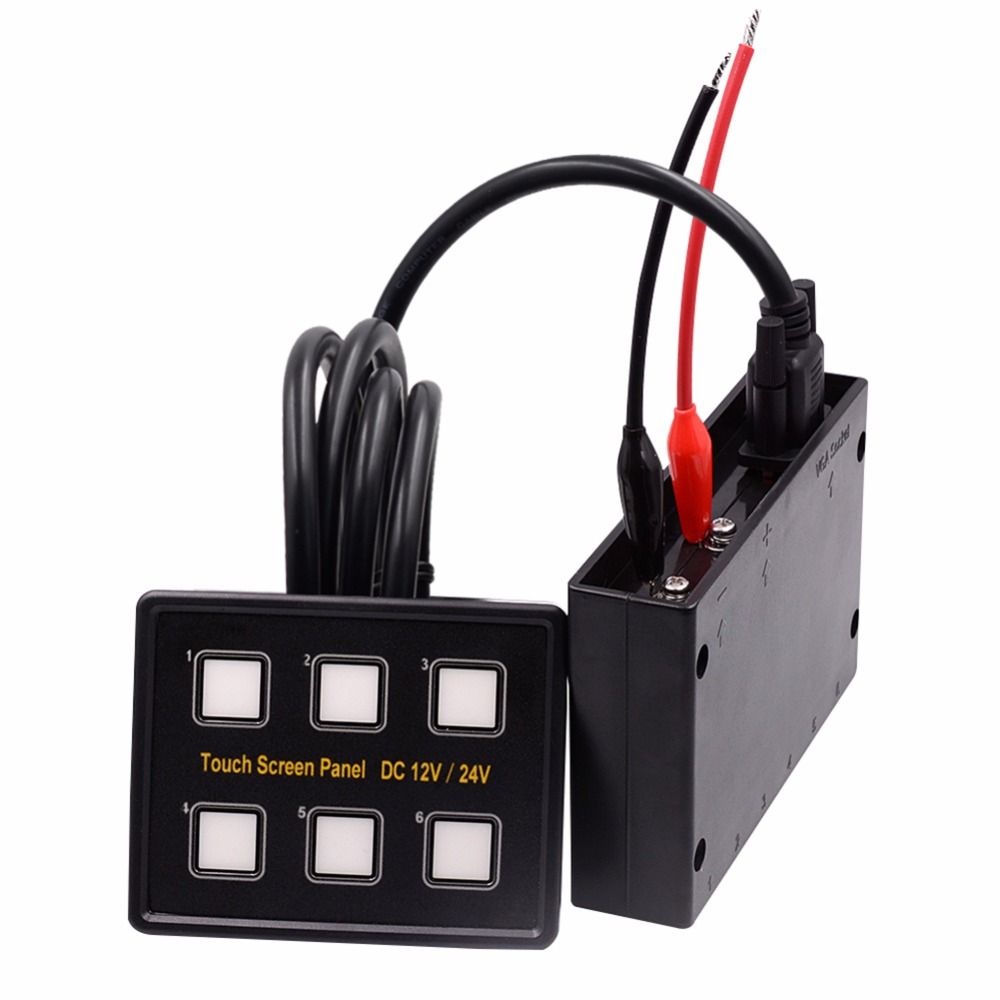

The remotely installed control box (up to 1m away from the touch panel) provides maximum flexibility for user wiring.

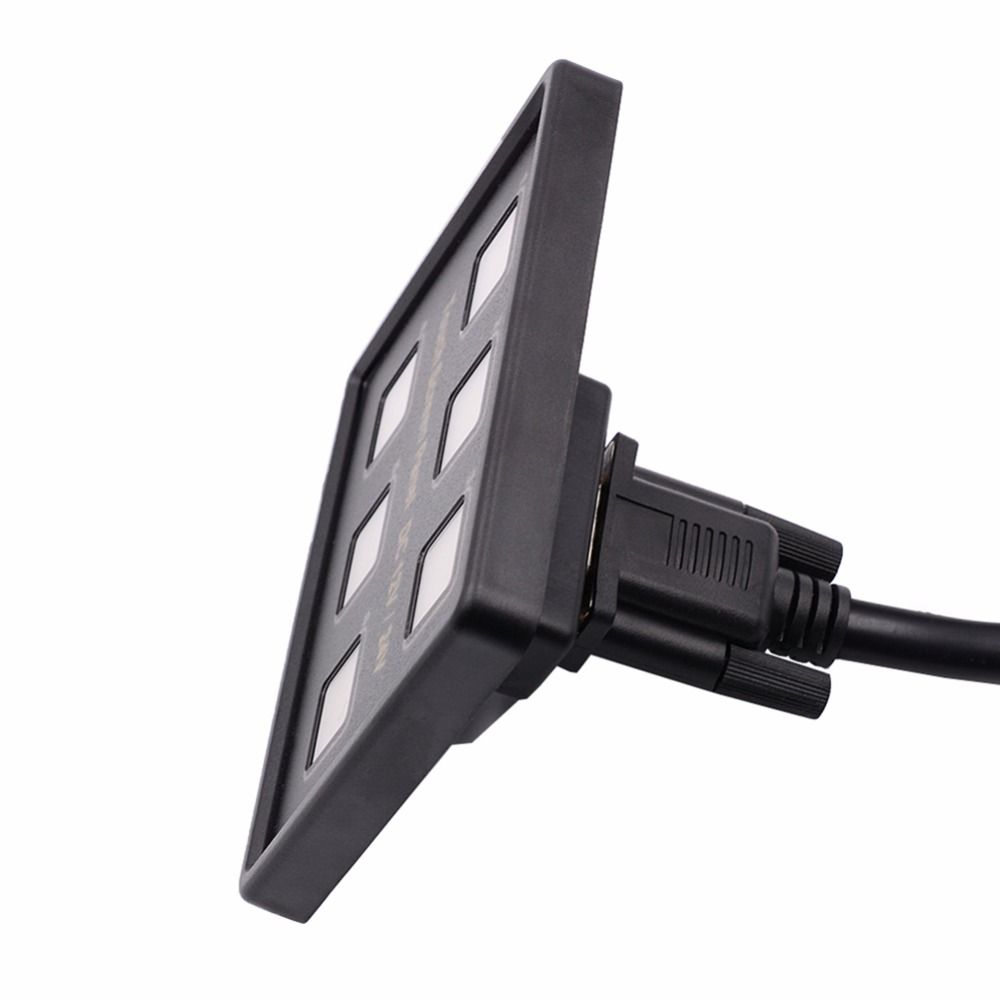

Supplied with a 15-Pin VGA connecting cable that is protected in a flexible black slim sheath. Connecting screws on either end of the cable ensure for a tight install, ensuring wires don't become loose.
It's compact size, innovative features with its sleek and modern design makes this one of the most outstanding marine technology to date.
Suitable for applications in boats, yachts & caravans.

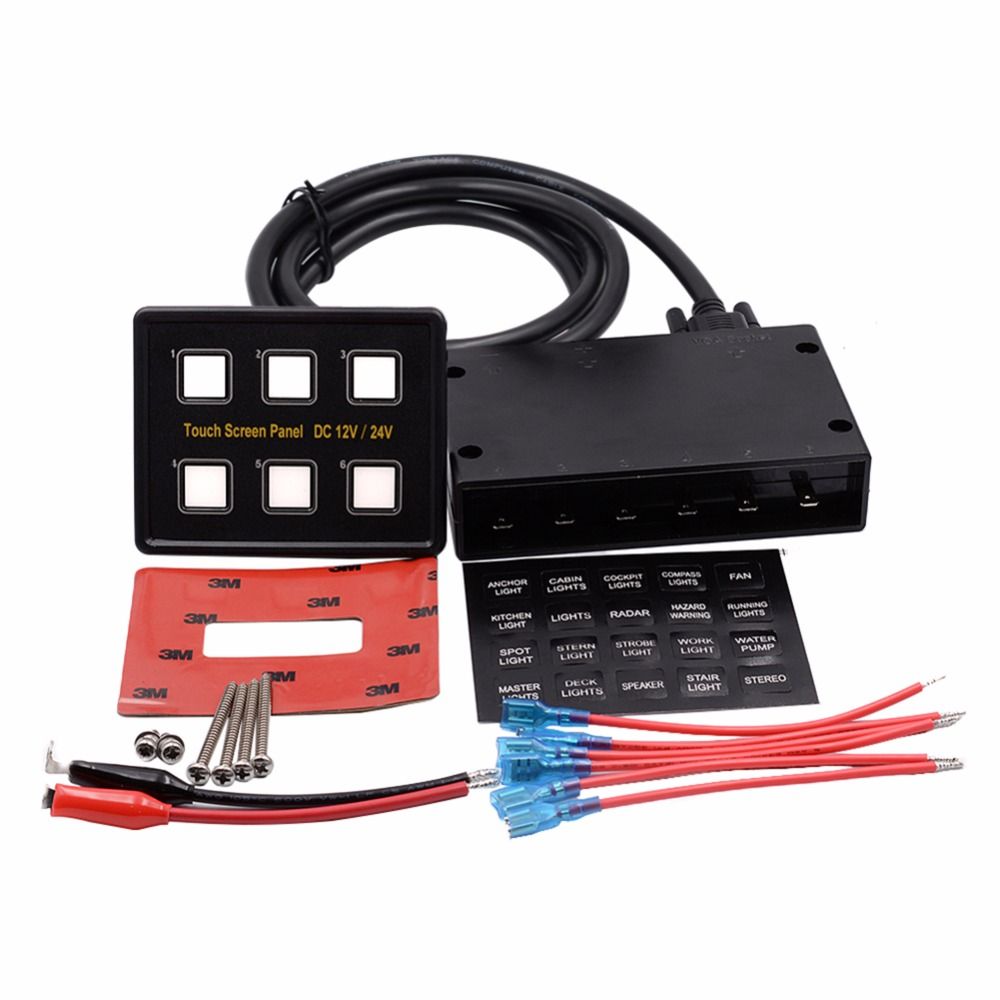

1 x 6 Gang Capacitive Touch ScreenPanel (Dimensions:80*100*80mm)
1 x 6 Gang Circuit Control Box(Dimensions:85*35*30mm)

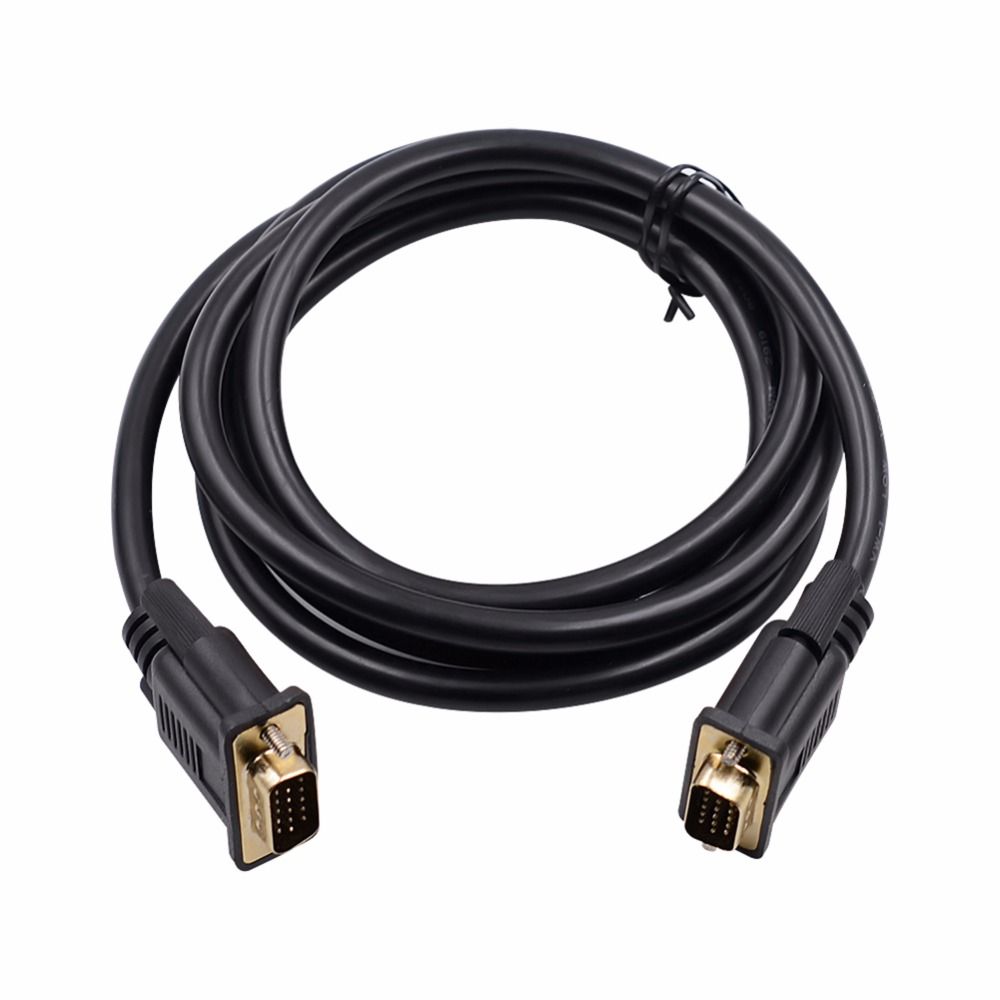

1 x 15-pin VGA Transmission Cable
1 x 3M Double sided adhesive (for mounting control panel)
20 x Label Stickers
2 x Power input wires
6 x Power Output Wire
2 x Stainless screws (M4*12) - For Positive & Negative input wires
4 x Stainless screws (M4*45) - For mounting control box
