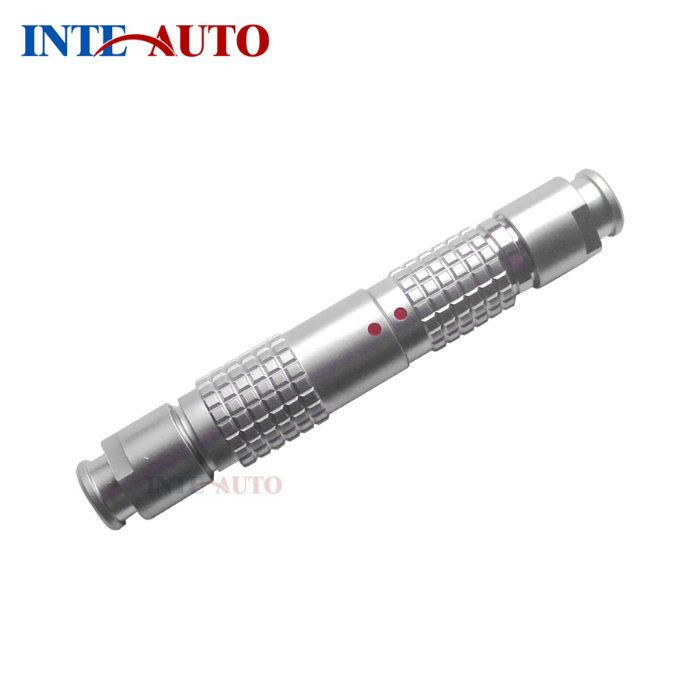

6 Pins Cable to Cable Connector Compatible Lemo
| Price: |
US $ 12-15/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
INT13-FGG. 0B. 306 PHG. 0B. 306 |
| IP Degree: |
IP50 |
| Insulator Material: |
PPS |
| Sleeve Material: |
PSU |
| Contacts Type: |
Solder |
| Sample: |
Free |
| Shipping Way: |
by TNT DHL UPS FedEx |
| Lead Time: |
Inventory |
| Number Of Contacts: |
6 Pins |
Product Description

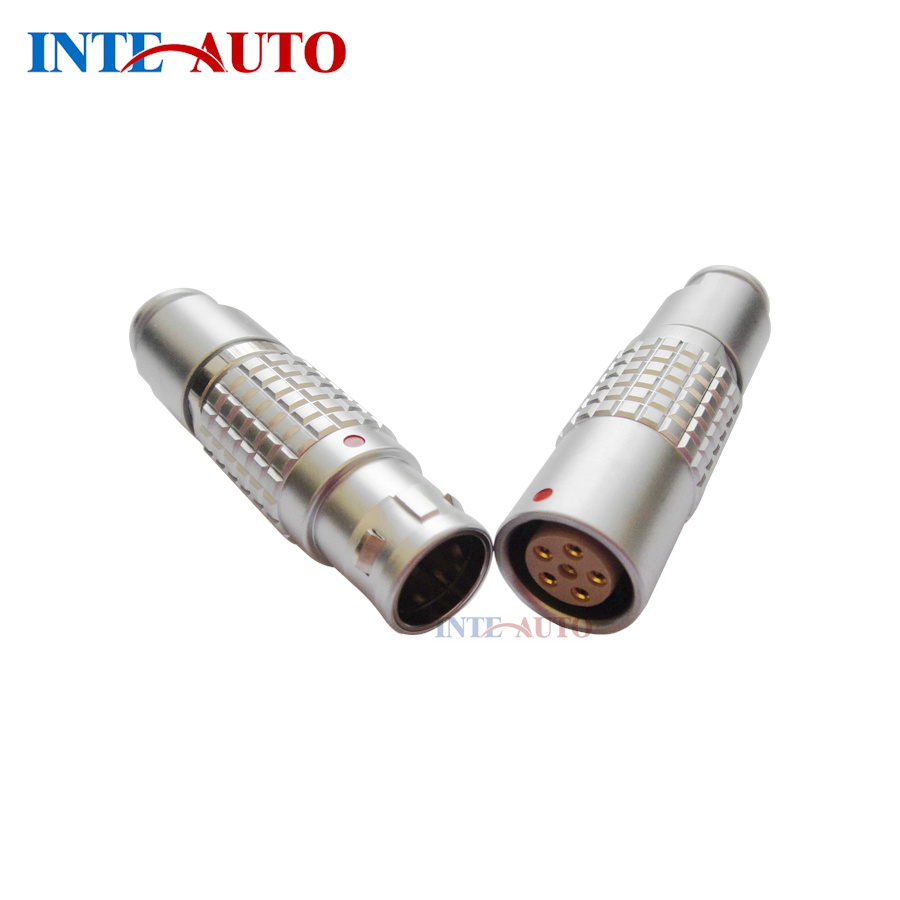

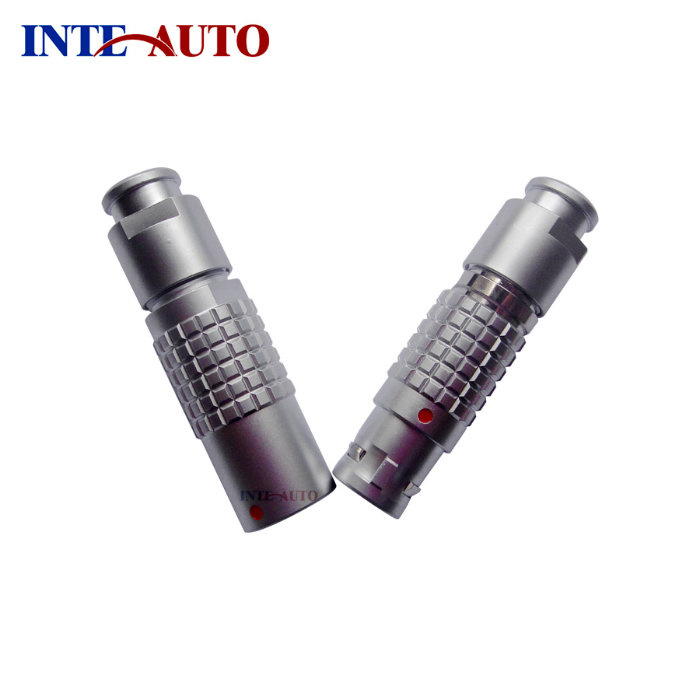

6 Way circular push pull metal connector
Model (FGG).Series (00…3B).Key(G).Straight Plug, Cable collet.Nut for fitting a bend relief
Model (PHG). Series (00…3B).Key(G). Free Receptacle, cable collet,Nut for fitting a bend reliefB series connectors provide the following main features:
1.Security of the Push-Pull self-latching system
2.Multiple key options to avoid cross mating
3.keying system («G» key standard)of similar connectors for connector alignment
4.360° screening for full EMC shielding.
5.multipole types 2 to 32 contacts
6.Solder, print contacts (straight or elbow)
7.High packing density for space savings

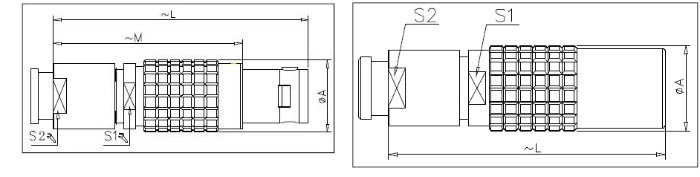

Product size:
| Model | Series | L | M | A | S1 | S2 |
| INTFGG | 00 | 34.5 | 19 | 6.4 | 5.5 | 6 |
| INTFGG | 0B | 35 | 25 | 9.5 | 8 | 8 |
| INTFGG | 1B | 41 | 30 | 12 | 10 | 9 |
| INTFGG | 2B | 48 | 36 | 15 | 13 | 13 |
| INTFGG | 3B | 57 | 42 | 18 | 16 | 15 |
| Reference | Dimension |
| Model | Series | L | A | S1 | S2 |
| INTPHG | 00 | 34 | 6.8 | 5.5 | 5 |
| INTPHG | 0B | 34.5 | 9.5 | 8 | 7 |
| INTPHG | 1B | 39.5 | 12.5 | 10 | 9 |
| INTPHG | 2B | 46 | 16.5 | 13 | 12 |
| INTPHG | 3B | 54.5 | 19.0 | 15 | 15 |

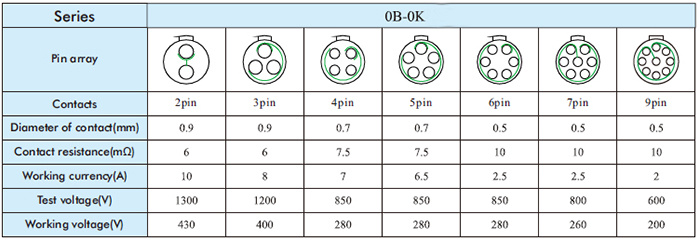

Insulator specs for B series:
Product Details:
Technical characteristics:
Mechanical and Climatically
1.Endurance:> 5000 mating cycles;
2.Humidity :Up to 95% at 60 ºC;
3.Temperature range:-45 ºC, +125 ºC;
4..Resistance to vibration :15 g[10 HZ-2000HZ];
5.Shock resistance:100 g ,6 MS;
6.Salt spray corrosion test :> 48h;
7.Protection index (mated) :IP50.
Industry Application:
It is widely used on all kinds of medical equipment's, specially for the signal transmission, Medical Equipment, Audio / Video, Test and Measurement, Communications product line.
Series B Metal Connector with Multiple pins for your selection:
00B Series:2,3,4 Pins
0B Series:2,3,4,5,6,7,9 Pins
1B Series:2,3,4,5,6,7,8,10,14,16 Pins
2B Series:2,3,4,5,6,7,8,10,12,14,16,18,19,26,32 Pins
3B Series:2,3,4,5,6,7,8,9,10,12,14,16,18,20,22,24,26,30PinsINTE-AUTO design, manufacture and distribute high performance push-pull connector and cable assembly solutions. Known for their quality and ruggedness, our products prove to be reliable in the most demanding environments. Helping solve the original brand's high cost and long lead time.
