600W Class-D RMS Power Amplifier Module with Integrated Switch Power Supply

Name: 600W Class-D RMS Power Amplifier Module with Integrated Switch Power Supply
Brand: all-electronics-online.com
SKU: 733825862
Availability: InStock
Rating: 5 (150 reviews)

Price:	US $ 100-2000/Piece
Min Order:	20/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

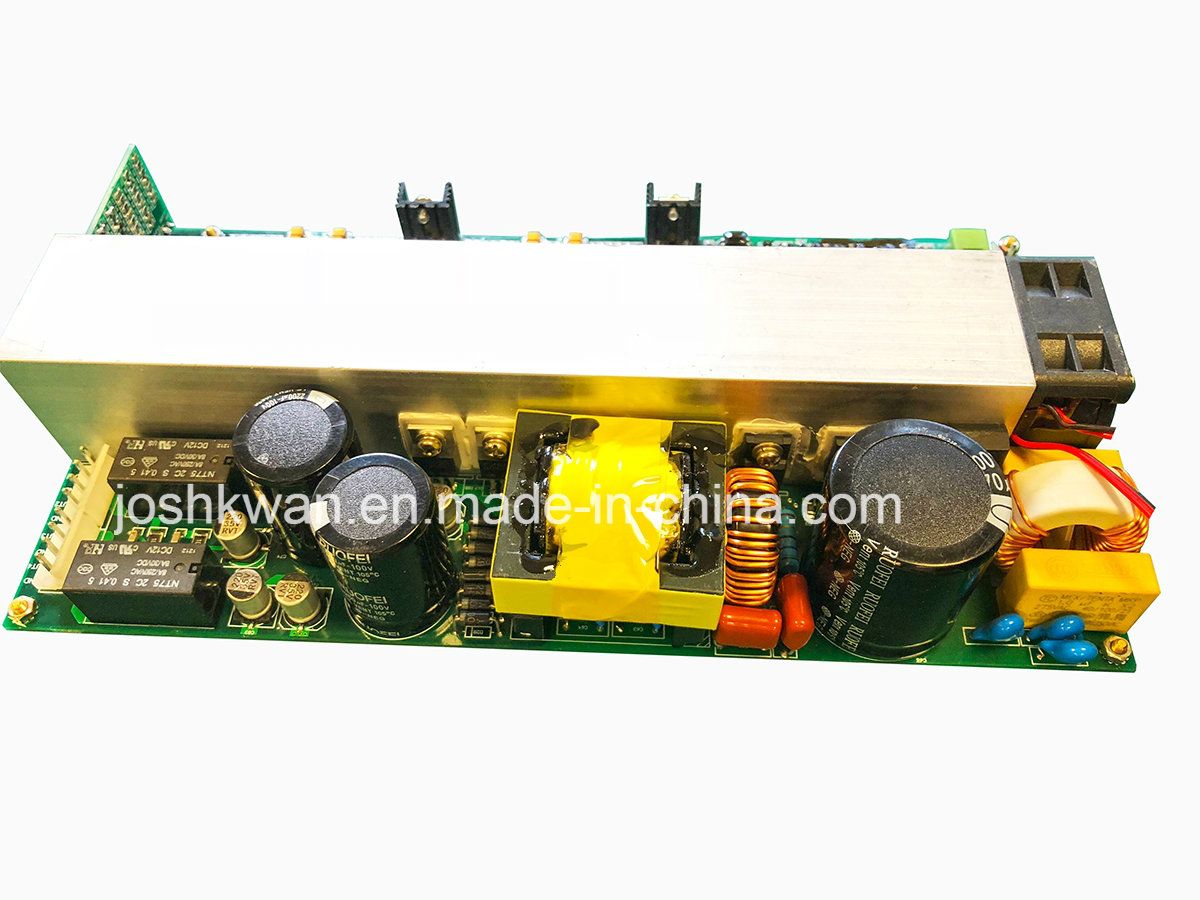

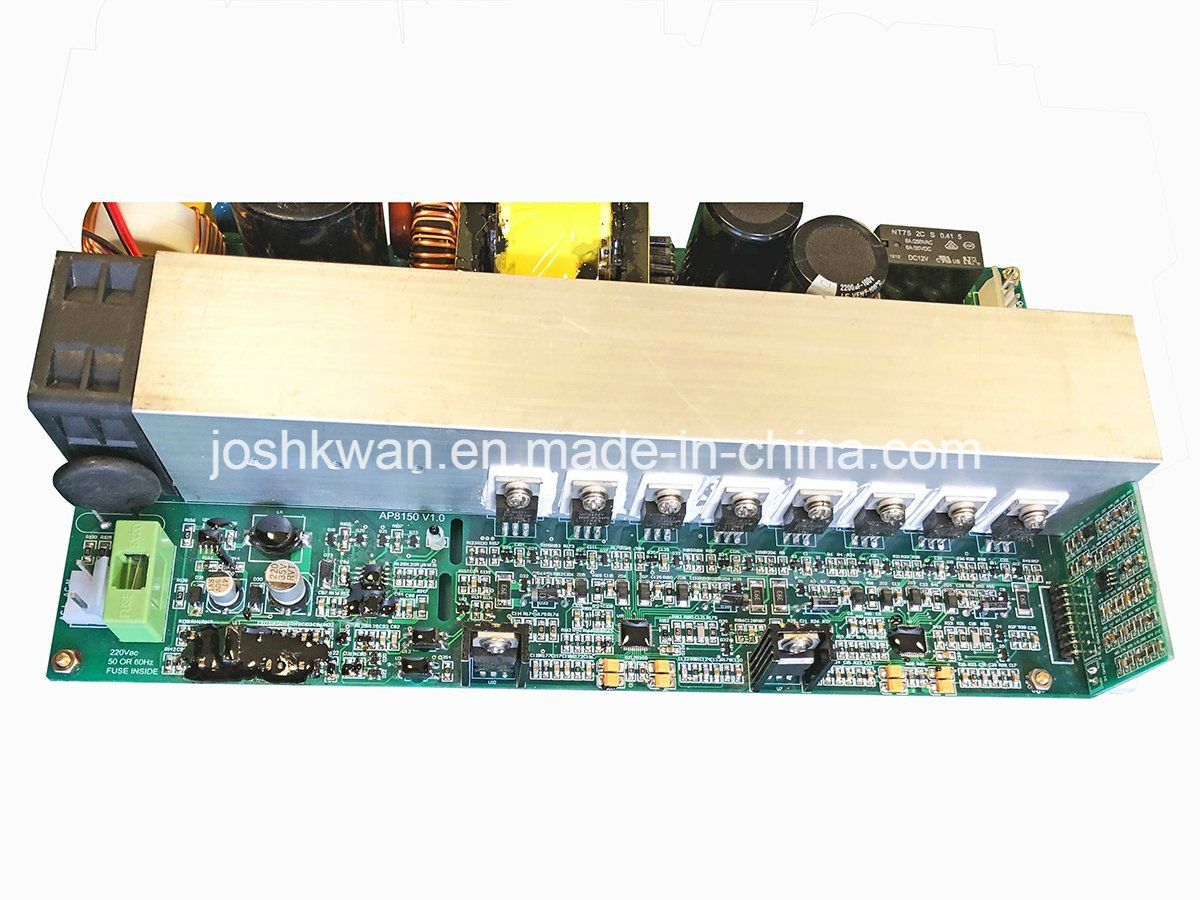

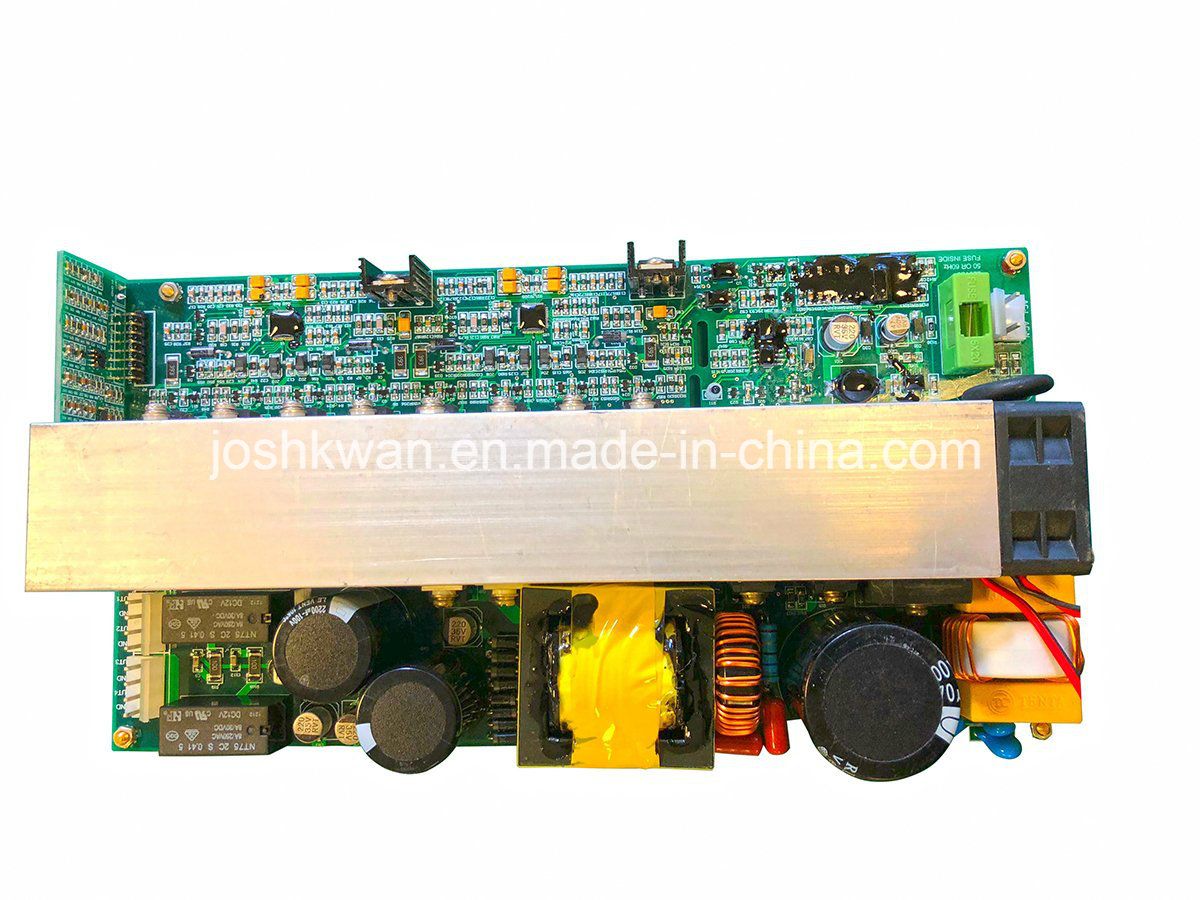

AP8150 4CH CLASS D AMPLIFIER MODULE
600W RMS power Amplifier
with integrated SINEWAVE Switch Power Supply

General Description :

The SINEWAVE AP8150 is fully integrated, intelligent audio power conversion solution designed particularly for highly competitive consumer and professional audio products. EMC and safety approved and completeness allows for fast design.

Key benefits include:

stage based on the new type class d processing topic, high efficiency SINEWAVE amplification and high quality switching power supply

An LLC power supply with selectable mains converter and separate aux converter.

A wide set of features for plug and play implementation into applications such as Public Address Amplifier or other professional audio equipment.

Combined with the auxiliary supply for powering external circuitry It is the natural choice in such audio application that requires a compact, integrated power solution.

SINEWAVE AP8150 is protected against short circuits, overload and over heating and includes on-board fuses and EMI filtering that provide a CE and FCC pre-approved design.

Features :

Very rugged design for demanding use
Soft mute/de-mute
Stand-by mode for low power consumption
Under voltage protection
Led display each channel work status
Single end signal input
Excellent EMI performance

Specifications:

1	4X150W/8ohm @ 1%THD+N. (RMS rated power/ 4 channel mode)
2	integrated 4 channel design
3	OTP/OCP/DCP/UVP/OVP functions integrated
4	230Vac power supply
5	magnetic shield design for better EMI performance
6	+-15v dc aux power output
7	integrated brushless DC Fan support
8	1.5kg net weight (include aluminum heatsink)
9	Dimensions: 130mm(W)x250mm(L)x45mm(H)

Prod Model:	AP8150
Operation Mode:	Wire / Remote Control
Application:	Broadcast
Certification:	CCC
Noise:	-100dB
Hi-Fi:	PRO Audio AMP
THD:	1%

Sinewave Electronics company established in 2008 in hangzhou, China. We are a professional company in developing and manufacturing audio amplifier products for both consumer and industrial areas. Our products has been distributed in 35 countries around the world and it's been widely used in audio broadcasting and other fields. In recent years, professional customers have developed rapidly and broadcasting, ultrasound and sonar products have been promoted and applied in China.

Sinewave have good experience to develop professional audio amplifier and sonar amplifier, cover the wide range from 0Hz-1MHz, power range from several watt to thounds watt.

SMPS and class D AMP all-in-one solution is Sinewave's core technology.

Above 3000W AMP, Sinewave engineers developed advanced Multifeedback System with Ultrafast Mosfet Bridge class D AMP, it's been widely used in our high level AMP, covered 2500W-10000W AMP.

Especially Sinewave technology invented the transformerless constant voltage amplifier, sinewave developed original'B to B 'technology, it is the high-end and smart solution in this area, this technology is gradually and widely applied to audio and industry system. 4KW 100V industry AMP have applied to industry testing site, works well. This technology support 100W-5000W power level and 10Hz -40kHz frequency range.

Sinewave have over 5 extremely rich experience engineers, all of them have over 10years professional experience in product development. From older tube amplifier to good sound Class A amplifier, even classAB amplifier to class H, Sinewave have good analog amplifier design to product ability.

New century, Green engineering is our direction, High watt density switch power supply technology may fit in high efficiency class D technology, sinewave has been following closely of the multiunit high efficiency technology, completed more types of technology directivity products.

Products to the market and gradually mature, now sinewave products covering professional audio AMP to Hi-end home audio AMP, especially some military project settle down our company, sinewave sonar amplifier have widely used in some special area, win very good praise.

We happily face to the opportunities and challenges that come with new energy technologies. Sinewave face to the technical challenge, dare to try the new technology, unites our customers, believe we have bright future.

Note: B to B technology, it is one new class D technology from sinewave, balance signal input and balance powered signal output, good signal performance and better stability.
