600W DC12V/24V AC220V/230v Pure Sine Wave Power InverterPRODUCT DESCRIPTION:
Continuous power: 600W
Peak power: 1200W
Input voltage : DC 12V , DC 24V
Output voltage : AC 230 +/- 10%
Output Frequency : 60+/- 3Hz ;50 +/- 3Hz
Output Waveform : Pure sine wave
USB Output : DC 5V (0.5A ,1A ,2.1A) used to charge iphone, ipad etc.
Protection Specification:
1.Overload Protection
2.Overheat Protection
3.Input Over Voltage protection(15.5V±0.5VDC)
4.Input Low Voltatge Protection(10.5V±0.3VDC)
5.Output Short-circuit Protection
6.Over-current protection
7.Positive and negative reverse polarity protection
8:Damage protection
LED Indicator lamps:
When works well: The green and red lights
When in protection, The green lights, the red out.
Feature:
1. High conversion efficiency, fast start.
2. Multiple protection circuit for low voltage
3. Smart, light, easy for carry
4. Europe socket, suitable for europe of plugs
6. Portable size power inverter
7. With the multiple protection circuit, no harm to equipments
8. High-precision voltage stability technology
Protective Function: Low/Over voltage: LED Red light, automatic recovery
Over load: LED ,Red light ; automatic recovery
Over temperature : LED ,Red light,;automatic recovery
Short circuit: LED ,Red light; automatic recovery
Input reverse connection: Fuse burn-out
Working Temp : 10°C-+60°C
Storage Temp. Humidity: -30°C-+70°C
Approval:CE+Rohs+TUV
ABOUT US:
Toking Auto Industrial Co.,Ltd. was established in 2001 with the commitment to manufacture world-class products with high quality that our customer could use with the pride and confidence. Our goal is to be better and better in performance, efficiency, reliability, and safety. Then certainly COMPETETIVE PRICE in the market. All there standards define our products to this day. With its corporate headquarters based in HANGZHOU, CHINA. TOKING has extended its branch offices to Hong Kong, Thailand, Mexico. Throughout the years, TOKING has become an international firm with 2 FACTORIES produce POWER INVERTER and LED LIGHT, 2 package factory and warehouse(Hangzhou China and Bangkok Thailand) especially in 100% final QC/packing AND OFFER FULL container CONSOLATION service to customer; R&D office is also located in Hangzhou continued supply new/innovation products to customer.
MORE THAN GUARANTEE!!
Welcome guests from all over the world to place OEM orders.
| Model | T107-6020 |
| Continuous use | 600W |
| Peak Power | 1200w |
| Input Voltage | DC 12V /24v |
| Output Voltage | AC 110V/120v/ 220V/230v |
| Efficiency Up To | 85% |
| No load Current | Less than 0.3A |
| Approval: | CE/ROHS/TUV |
| Frequency | 60Hz±3Hz |
| Gross Weight | 2.5kg |
| Color | gray, Customized... |

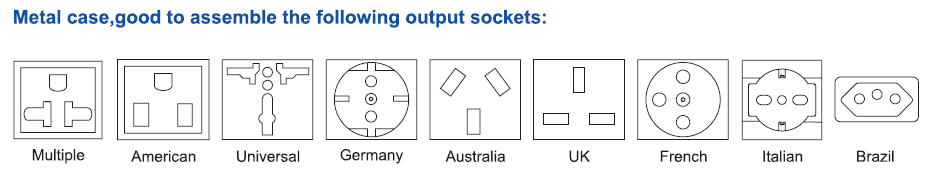

| Plug type | EUROPE ,AMERICAN,ASIA.... |
| Warranty | 12 months |
| others | MORE THAN GUARENTEE!!
Welcome to ODM |
Our factory:
Found date: 2003
Plant area:15000
Employee: 250(Technician:25 QE:17)
Main products: DC TO AC Inverter(car inverter,modified inverter, pure sine wave inverter, soft start inverter,inverter with charger) DC TO DC CONVERTER, BATTERY CHARGER, STRIP INVERTER ECT....
Certificate:ISO 9001:2008
Product certificate: CE-EMC/LVD,RoHS,TUV,E-Mark,ETL,RCM(C-TICK)
Monthly output: 70000pcs

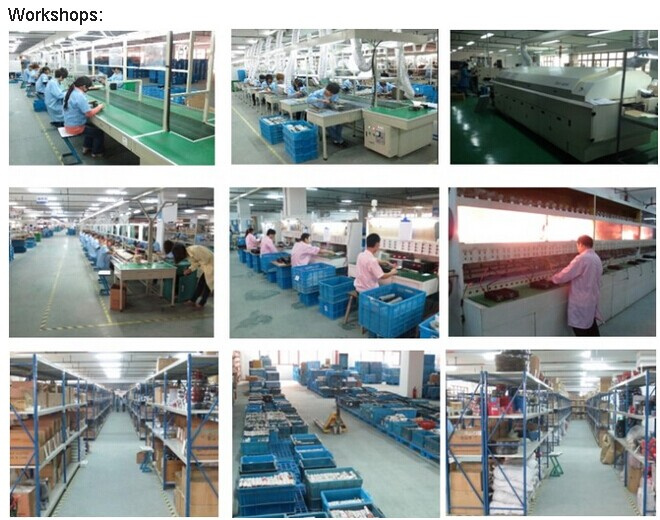

Workshops:
HANGZHOU NEWSUN ELECTRIAL PRODUCTS FACTORY is a TOKING's company, located in Hangzhou Economic& Technologic Development Zone. The company covers the area of over 10, 000 square meters.
Now our products include: Fire fighting emergent indicating light(LED type)100 series, fire fighting emergent indicating light(EL type)400 series and hard PVC pipe flame ring series. These lamp products all have inspected and tested by the fire fighting products evaluating center of public security ministry, and reach the standard of GB17945-2000 fire fighting emergent light. The flame ring has passed the inspection by state fireproof construction material quality supervision & inspection center, and reaches the standard of ga304-2001 flame ring of PVC water discharge pipe.
The company has strong technical power, advanced technology, and complete inspecting equipment. In this industry, it also firstly passed the authentication of GB/T19001-2000 and ISO90012000 quality management system.
The company sticks to the basis of "honest and credit", and the tenet of "live on quality, make interests by management, develop based on innovation, and satisfy customers with good service". It insists on the quality principle of "elaborately producing, satisfying needs, trying to be beyond their expectation". In the spirit of perseverant working style, the company provides customers excellent service and high quality product to keep expanding domestic market and to explore international market.
Because of best price, best quality control, and best serive, we have many customers in the global, the main customers from USA, Europe, South American and so on.
With our high standard products and best service, we hope to cooperate with you for mutual development, and for the bright future.
Toking is you best choose, and also best friend. Welcome your inquiry!
