60W SMPS Single Output AC 220V to DC 5V LED Switching Power Supply

Name: 60W SMPS Single Output AC 220V to DC 5V LED Switching Power Supply
Brand: all-electronics-online.com
SKU: 729277312
Availability: InStock
Rating: 4.9 (106 reviews)

Price:	US $ 4-6/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RP-60W12V5A
Efficiency:	90%
Output Current:	5A
Output Voltage:	DC 12V
Protection:	Short Circuit/Over Load/Over Voltage
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	RoHS
Brand:	OEM

Product Description

1. Product Description

Model Specification	RP-60-5	RP-60-12	RP-60-15	RP-60-24
DC Output voltage	5V	12V	15V	24V
Output voltage range(Note:2)	±2%	±1%	±1%	±1%
Rated output current	12A	5A	4A	2.5A
Output current range	0~12A	0~5A	0~4A	0~2.5A
Wave and noise(Note:3)	100mVp-p	75mVp-p	75mVp-p	75mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±1%	±0.5%	±0.5%	±0.5%
DC output power	60W	60W	60W	60W
Efficiency	73%	78%	78%	82%
Adjustable range for DC voltage	+10,-5%	±10%	±10%	±10%
AC input voltage range	85~132VAC/170~264VAC selected by switch 47~63Hz,240~370VDC
Input current	2A/115V 1A/230V
AC Inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%-150% Type: pulsing hiccup shutdown Reset: auto recovery
Temperature coefficient	±0.03%/°C(0~50°C)
Setup, rise, hold up time	800ms, 50ms, 10ms/150V 300ms,50ms,80ms/230v

2. More products for your reference:

4. Certificate

5. About Us:

6. FAQ

Shenzhen Rainbow Power Technology Co., Ltd is a professional manufacturer of Switching Power Supply for LED lighting projects, mechanical equipment, industrial automation, electronic technology, telecommunication, medical appliances and instrument meters etc.

Our main products: LED Driver, LED Power Supply, Switching Power Supply, LED Transformer, AC/DC Adapter etc.

We export to more than 30 countries, such as USA, Canada, Brazil, Columbia, Ecuador, Germany, France, Australia, Malaysia, HongKong, India, Egypt, Pakistan, Greece, UK and so on.

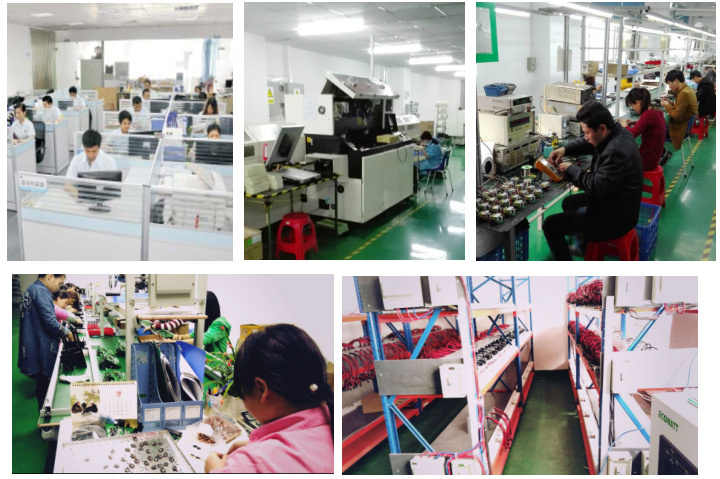

In order to ensure the stability and reliability of our products, Rainbow Power is equipped with many testing equipment for safety. Temperature, magnetic and EMI testing, automatic SMT machine and automatic solder machine etc., We have a team with well-experienced R & D Engineers then we are ready to design and produce your power supply.

Our mission is to provide Excellent quality, competitive price and more value-added service to our clients, all of these makes our core competitiveness get a far-reaching develop and prominent advance.

If you are interested in any of our products, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world.
