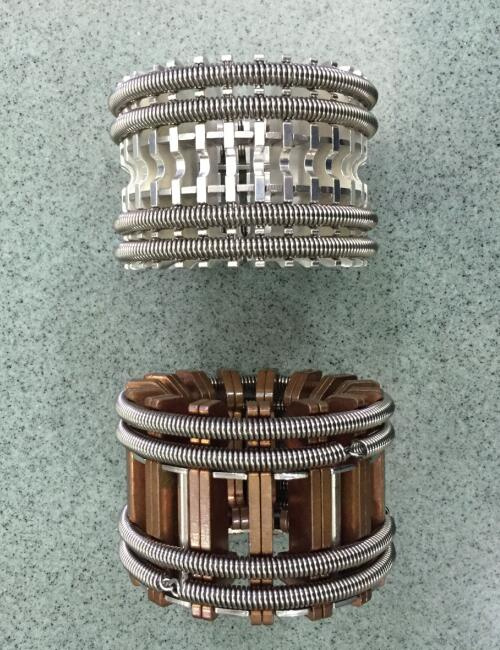

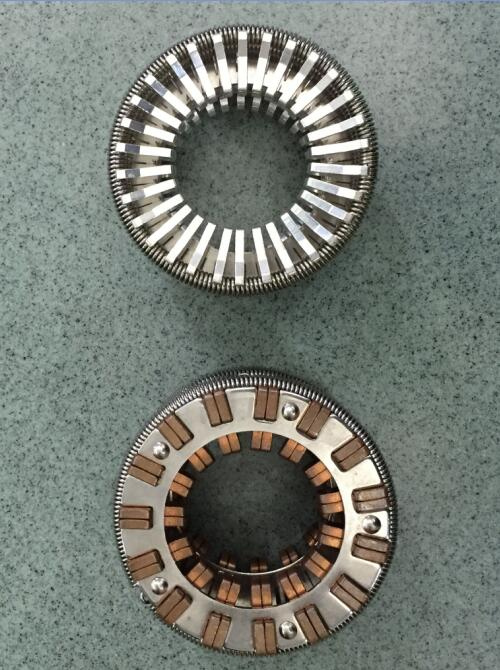

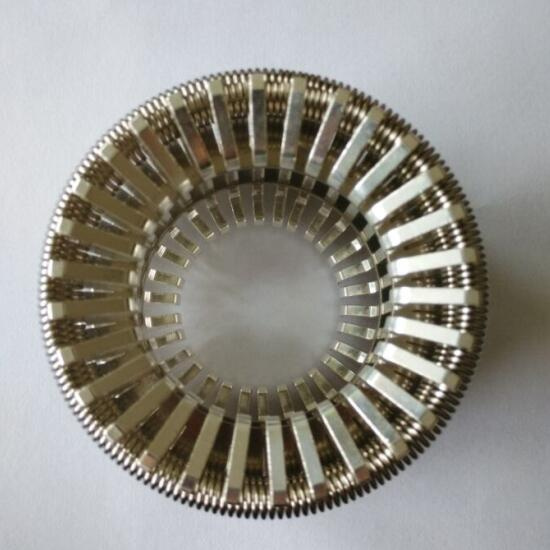

630A-4000A Isolating Contact

Isolating contactor is a kind of power equipment accessories, because is used in a loop, so also known as a contact
Isolating contactor main body made of non-magnetic stainless steel material, used in the type of circuit breaker and other high pressure medium voltage electrical appliances.

630A-4000A

NO:BT.12-135.1/135.8

Materials: Copper

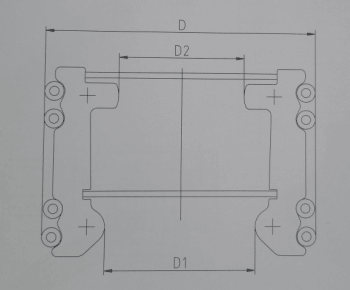

Technical Parameters:

Model	Contact No	D1	D5	D2	D6	D	D3	L1	L2
3150/40	64/82	Φ 107.2	Φ109	Φ100	Φ102	Φ158	Φ109	309	107
2000/40	48	Φ77.2	Φ79	Φ70	Φ72	Φ128	Φ79	298	102
1600/40	36	Φ53.2	Φ55	Φ46	Φ48	Φ94	Φ55	298	82
1250/40	30	Φ47.2	Φ49	Φ40	Φ42	Φ88	Φ50	298	82
1250/31.5	30	Φ47.2	Φ49	Φ40	Φ42	Φ88	Φ50	298	82
1250/31.5	24	Φ33.2	Φ35	Φ26	Φ28	Φ74	Φ50	298	82
630/20	12	Φ33.2	Φ35	Φ26	Φ28	Φ74	Φ44	298	72

Prod Model:	630A-4000A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
No:	Bt.12-135.1-135.8
Materials:	Copper
Mounting:	Single Sheet
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Oil-immersed Type
Installation:	Insert
Structure:	MCB
Poles Number:	1
Certification:	ISO9001-2000
