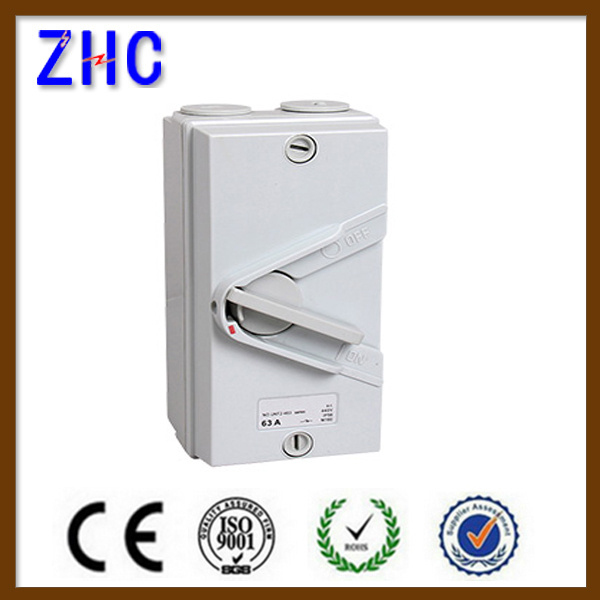

63A 250V Australia Waterproof IP66 Electric power isolation switch

A. DESCRIPTION

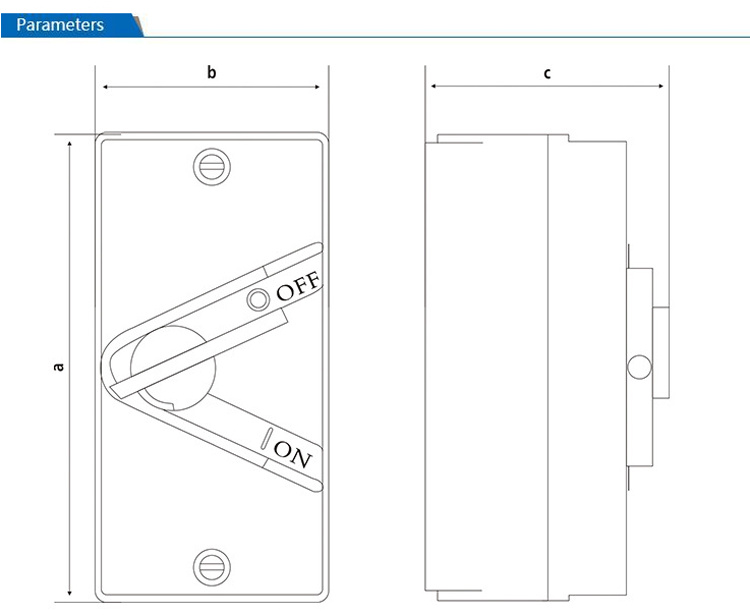

1.ZCF series weatherproof isolation switch wide range of applications, suitable for any outdoor application conditions. Including unipolar, bipolar and three-pole switch, current range 20A-63A. Base mounting arrangement provides easier termination and more wiring space. (Switch size is 165 * 82mm, total height 85mm)
2. Install ground and neutral connecting rod with double intensify screw, dial the same cable length and reliable clamping aperture terminal 5-6mm. More secure, installation switches to a metal structure with an insulating cap, insulating cap covering the base mounting screws to prevent their exposure to energized cables.
3. Each device provides a threaded pipe threaded Reducing joint connector box to connect with 25mm or 20mm conduits and screw caps. Screw caps must be installed to ensure IP Rating. For security, a 7mm diameter hole is provided for padlocking the lever in the OFF position. Deep moulded barriers protect the operating lever from physical abuse or accidental switching.

4. All units comply to IEC60947-3. Standard colours are grey & white.

B. PARAMETERS

Poles	Current	Models	IP rating
Single pole	20A	ZCF-120	IP66
	35A	ZCF-135
	63A	ZCF-163
Double pole	20A	ZCF-220	IP66
	35A	ZCF-235
	63A	ZCF-263
Tripe pole	20A	ZCF-320	IP66
	35A	ZCF-335
	63A	ZCF-363
Four pole	20A	ZCF-420	IP66
	35A	ZCF-435
	63A	ZCF-463

C. PRODUCTS SHOW

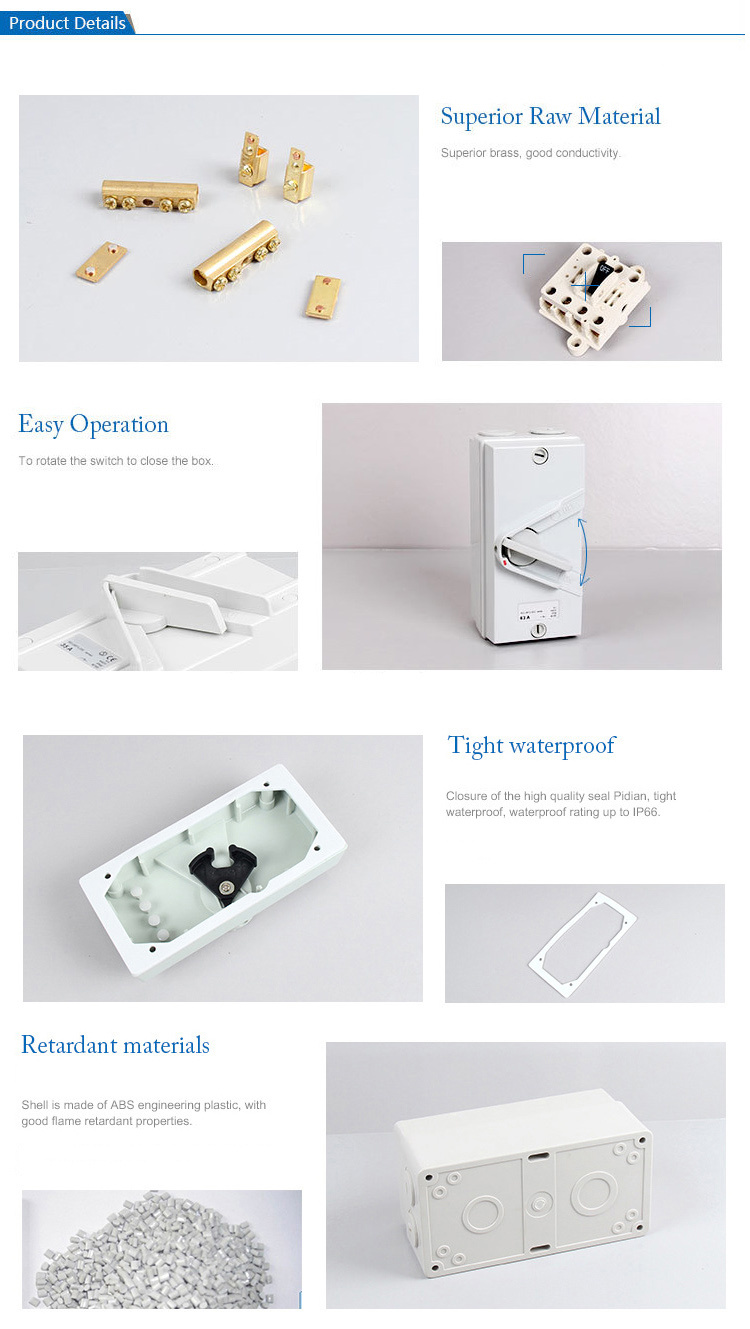

D. PRODUCT DETAILS

E. FACTORY SHOW

F. AUSTRALIA CERTIFICATE

FAQ

How to Order?
1. Please let us know what kind of model.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay the discussed deposit soon.
5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.
6. OEM/ODM is welcomed.

Terms of Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Terms of Payment:
1. For bulk order, TT or L/C at sight.
2. 30% deposit and 70% against shipping documents.
3. Sample order we accept payment such as paypal, western union, visa card.

Warranty:
1.We provide 2 year quality warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods .

Prod Model:	ZHC
Ampere:	20A 35A 63A
Voltage:	250V 500V
IP Degree:	IP66
Standard:	IEC60947-3 , AS/NZS3947.3
Pole:	Single Pole Double Pole, Tripe Pole Four Pole
Rated Frequency:	50Hz 60Hz
Utilization Category:	AC22A ,AC23A
Approvals:	SAA, CB, Ce
Type:	Low-voltage
Structure:	Single-column Disconnector
Operation:	Manual
Grounding:	Single Ground
Series:	Three
Run:	Vertical Rotation
Switching Mode:	Single Throw-in
Certification:	Australia Certificate
Installation:	Fix Neutral and Earth Bars Included
Common Model:	Ukf
Brand:	Zhc
