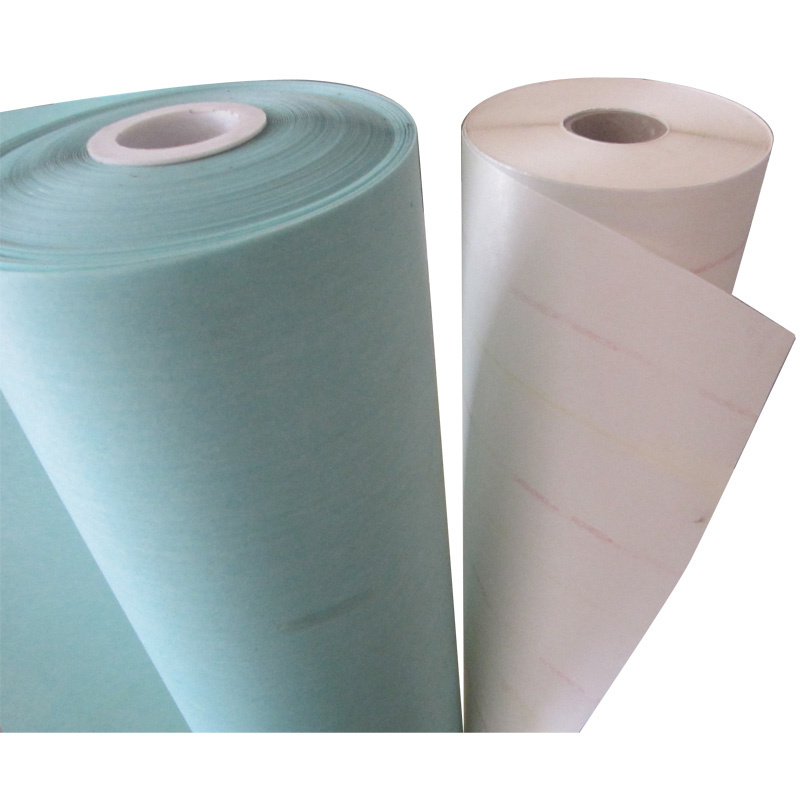

6641- F Class DMD Insulation Paper

Name: 6641- F Class DMD Insulation Paper
Brand: all-electronics-online.com
SKU: 703782352
Availability: InStock
Rating: 5 (51 reviews)

Price:	US $ 2.4kg
Trade Terms:	FOB,CFR,CIF
Min Order:	800kg
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	6641-F DMD
Markets:	South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Thickness:	0.17mm-0.35mm
Width:	1000mm
Heat-Resistance:	F Class 155
Storage Life:	1 Year
Delivery Time:	20days
Application:	Insulating Varnish
Type:	Insulation Paper
Chemistry:	Inorganic Insulation
Thermal Rating:	F 155
Maximum Voltage:	<10KV
Material:	Non-Woven Fabric
Color:	Green
Brand:	Chr

Product Description

Description: Class F DMD Flexible Laminate is a three-layer flexible composite material, produced by using F-class adhesive to adhere the two faces of high-melt-point polyester film with non-woven polyester fabric.
Advantage: This material has comparatively good heat-resistance, dielectrical property and good mechanical property, along with sound soakage capability.
Applications: Class F DMD mainly used as slot liner, slot closure, phase and turn-to-turn insulation in electrical motors. It can be used as interlayer insulation in transformers and other electrical appliances.

Technical Data

Type

Nominal Thickness

Tolerance

PET Film Thickness

Nominal Grammage

Tensile Strength

Elongation

BDV

Room Temperature

155±2°C

Not Bended

Bended

Not Bended

µm

g/m2

N/10mm

DMD 2-2-2

0.15

±0.020

150±22

≥80

≥70

≥10

≥15

≥7

≥6

DMD 2-3-2

0.18

±0.025

190±28

≥100

≥80

≥10

≥15

≥8

≥7

DMD 2-4-2

0.20

±0.030

100

210±32

≥120

≥95

≥10

≥15

≥9

≥8

DMD 2-5-2

0.23

±0.030

125

240±36

≥130

≥100

≥10

≥15

≥10

≥9

DMD 2-6-2

0.25

±0.030

150

260±39

≥150

≥120

≥10

≥15

≥11

≥10

DMD 2-7.5-2

0.30

±0.035

190

310±46

≥170

≥130

≥5

≥13

≥12

DMD 3-7-3

0.35

±0.040

175

390±58

≥200

≥160

≥5

≥15

≥14

DMD 3-10-3

0.40

±0.040

250

440±66

≥300

≥200

≥5

≥18

≥17

Temperature Index

°C

≥155

Storage Life

12 months,room temperature,dry and well-ventilated environment

Adhesive Property

Room Temperature

No delamination

180±2°C 10min

No delamination,blister,or adhersive flow

Wetted Adhesive Property

No delamination

Remark

This product is produced in accordance with GB/T5591.2-2002
