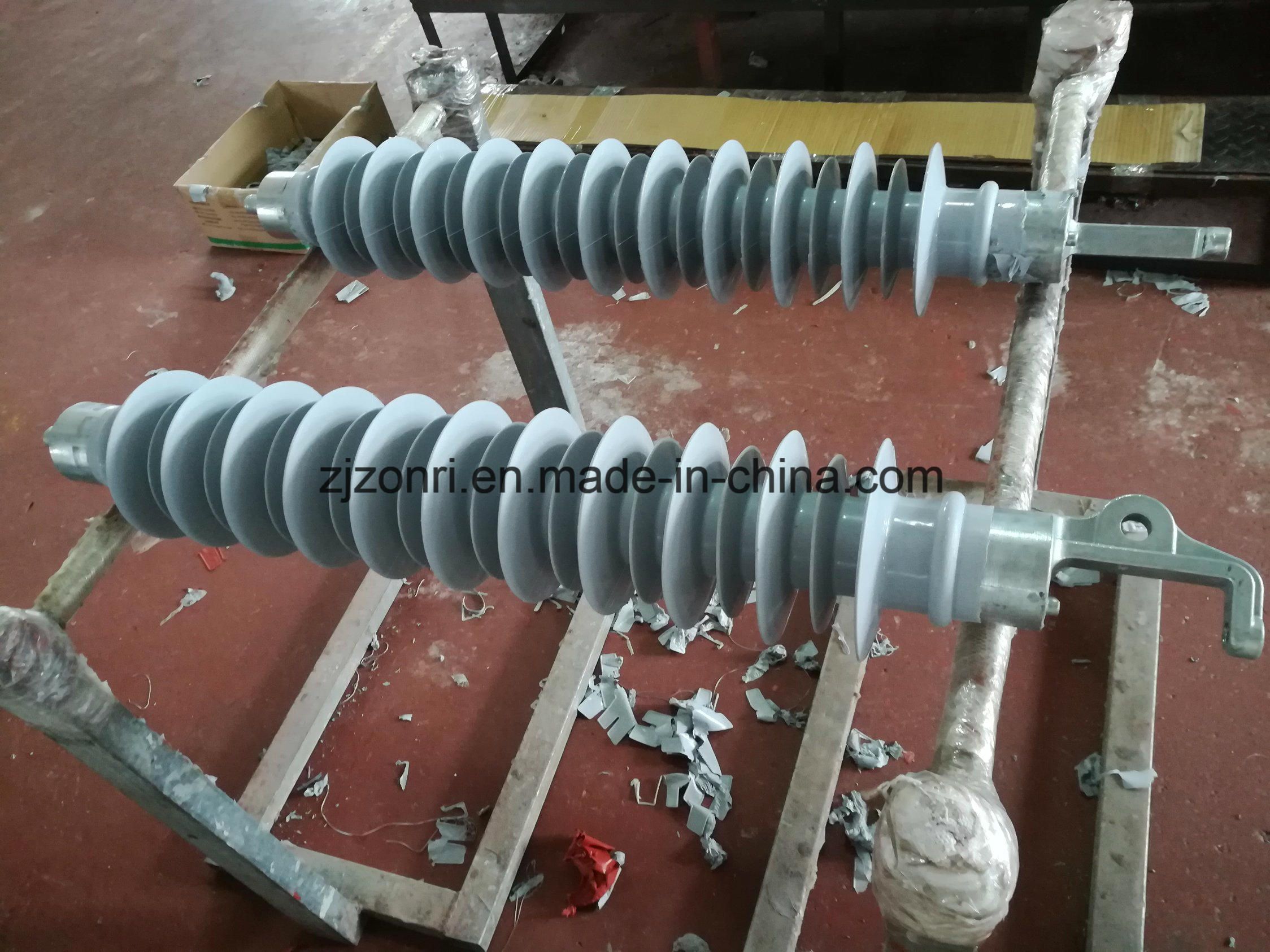

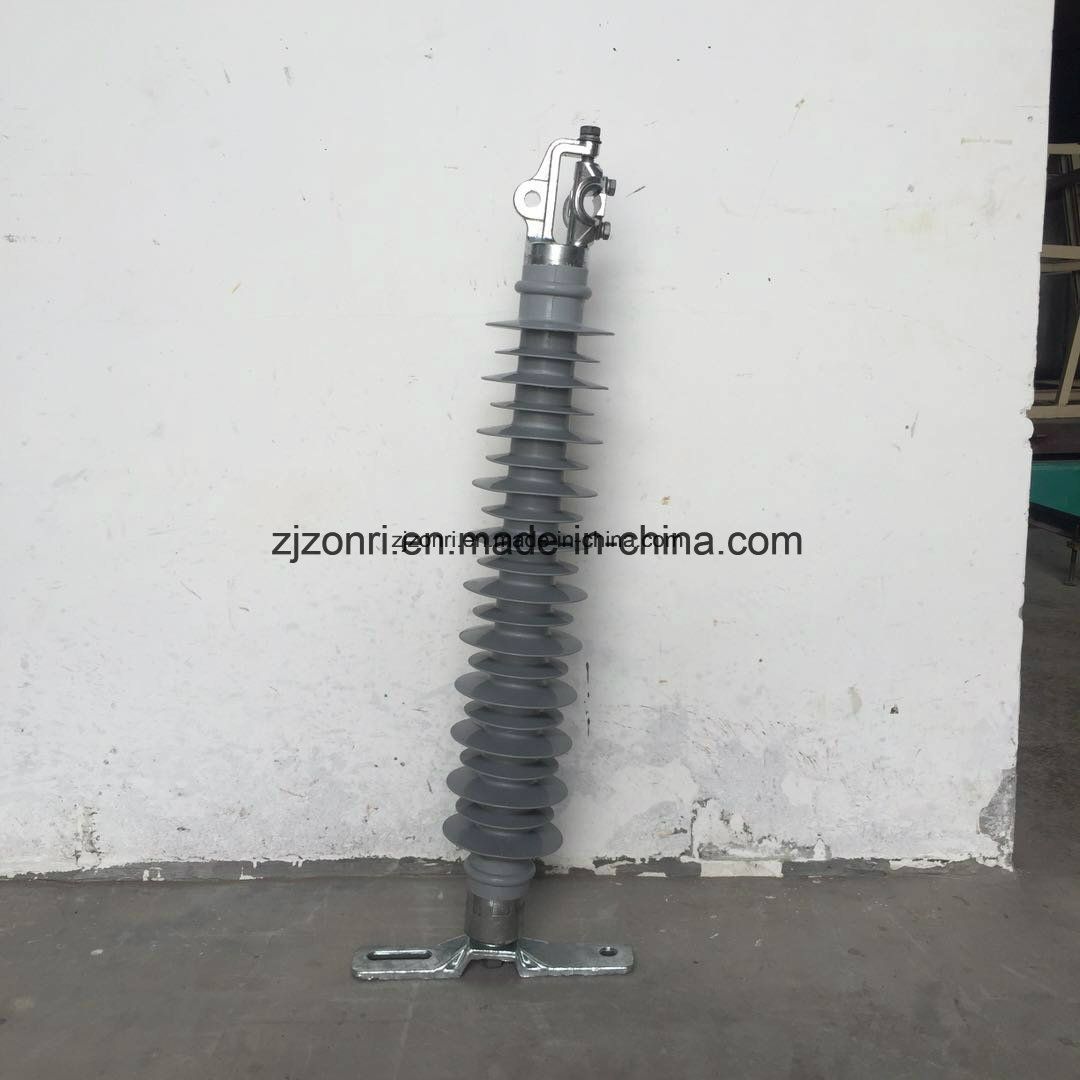

66kv Composite Insualtor
| Price: |
US $ 1-20/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Product model | Rated voltage(kV) | Rated mechanical bending load | Rated catileve load (KN.mm) | Structure height H.(mm) | Minimum arc distance Li.(mm) | Mini creepage distance Lc(mm) | Diameter of shed D.(mm) | Lightning impulse withstand voltage peak | P.F. 1 min wet withstand voltage (Virtual value)(kV) | Top accessories install dimension (hole numbers n-hole diameter d-cnter hole diameter D) |
| FZSW-10/5 | 10 | 5 | 0.6 | 215 | 125 | 290 | 100/90 | 75 | 42 | 4-M12-Φ76 |
| FZSW-15/5 | 15 | 5 | 0.6 | 245 | 170 | 600 | 138/118 | 105 | 45 | 4-M12-Φ76 |
| FZSW-20/8 | 20 | 8 | 1.2 | 360 | 270 | 850 | 122/92 | 125 | 50 | 4-Φ14-Φ140 |
| FZS-20/8 | 20 | 8 | 1.2 | 420 | 320 | 700 | 138 | 125 | 50 | 4-Φ14-Φ140 |
| FZSW-35/6 | 35 | 6 | 2 | 460 | 360 | 900 | 148/118 | 185 | 95 | 4-Φ14-Φ140 |
| FZSW-66/6 | 66 | 6 | 1.5 | 770 | 650 | 1930 | 160/130 | 325 | 140 | 4-Φ14-Φ140 |
| FZSW-66/10 | 66 | 10 | 2 | 760 | 630 | 1940 | 215/185 | 325 | 140 | 4-Φ14-Φ140 |
| FZSW-110/6 | 110 | 6 | 1.5 | 1150 | 1050 | 2950 | 160/130 | 325 | 200 | 4-Φ14-Φ140 |
| FZSW-110/10 | 110 | 10 | 4 | 1220 | 1060 | 3260 | 215/185 | 450 | 200 | 4-Φ14-Φ140 |
| FZSW-220/10 | 220 | 10 | 4 | 2440 | 2080 | 6520 | 215/185 | 950 | 395 | 4-Φ14-Φ140 |
Please contact us for more information. We can design and manufacture specially on your request. NEW PRODUCTComposite Bushing
Packaging & Shipping
Shipping: 1. DHL, EMS, TNT, Fedex, UPS and others international express for samples. 2. By air or by sea. Pin insulatorOur Services Payment term: 1.Payment: 1) T/T. 2) L/C2.Port of loading: Ningbo ,Wenzhou or Shanghai Port3.Discounts: offered based on order quantities 4.Delivery time: 5-30 days according to order quantities. Feedback: FAQWhy Us? 1. Quality assurance: All the products will go through lots of tests carefully before dispatch2. Competitive production capacity and fast shipping3. Factory direct sale, most competitive price.About Composite Insulator: Our composite insulator mainly apply to outdoor transformer substation and switches and other apparatus. 1. Made from proprietary cycloaliphatic epoxy compounds2. With high mechanical and electrical properties 3. Non tracking material 4. Design based on ANSI C29.8 and C29.9 standards 5. Standard steel zinc plated inserts (copper or brass inserts available upon request) Company InformationOur company Introduction: Our insulator, composite bushing ,surge arrester, cutout fuse sell well all over the world and are exported to kenya, Congo , Greece , Middle East, South Africa, uganda , Peru ,Viet Nam, Indonesia, South America and so on. Rated voltage for our transformer mainly is from 3KV to 660KV. We have won a good reputation among customers at home and abroad. We will do our best to provide more high-quality products and services for you in the future!1. Near 20-years experience in manufacture of composite insulators , bushing ,surge arrester ,cutout fuse, more than 15 years experience on export.2. All of material passed ROHS and Reach certification. 3. Manufacturing process is comply with ISO9001. 4. We supply the good payment terms such as TT before shipment for our cutomers ,usually we accept L/C DA payment terms. 5. We can provide free samples for customer to test it.6. Samples delivery time is within 24 hours. Freight cost pay by customers7.The fast leading time is5-20 days ,most time we send a container need about1 month to produce product. 8. Factory info: Located in Yueqing Wenzhou City, Zhejiang Province. 9. OEM Service and Buyer Label Offered.10. Above 30 production lines. 11.Including10R&D Engineers ,20QC Techinicians, 3 foreign trade colleagues ,in total 180 employees work in ZHONGRUI . Welcome your enquiry! Welcome to contact us for more details: ATTN: wendyZHONGRUI ELECTRIC CO.,LTD.Tel: 0086-577-62511868 Website: www.zonri.com We will be honored our professional service before and after sale & reasonable price. Any questions from you are welcome and will be replied in 24 hours.
| Prod Model: |
FZSW-66/8 |
| Application: |
High-voltage |
| Material: |
Composite Polymer |
| Structure: |
Post Insulator |
| Size Of Bearing Capacity: |
10 |
| Color: |
Grey |
| Brand: |
Grey |
Zhongrui Electric Co., Ltd. Located at Chinese Electric City'-Yueqing City, established 2000, own advanced manufacturing machines and complete measuring & testing equipments. We are a high technical enterprise that have succeed in turning produce, develop and sell together, one of the professional manufacturer for silicone rubber insulator in China, the member of Chinese Electrical Equipment Industry Association, one unit of National standard and technical committee of insulator, Yueqing city valuing contracts & promising enterprise, ISO2000: 2008 International Quality System Attestation enterprise, and established long-term cooperating relationship with the relevant scientific research institutions.
Our company specializes in the series products of composite insulator (power line, substation and electric railway series), composite dry wall bushing, lightning arrester and fuse cutout etc. All products are qualified by Ministry of Power Industry electric equipment quality inspection center and National Insulator & Lightning Arrester quality control test of inspection center, agreed with National industrial, IEC AND ANSI standard, and accreditation through State Power Corporation and China Machinery Industry Federation 'Two Ministry' new product and Zhejiang Province Scientific & Technological Hall, Province Electric Power Industry Bureau, Province Mechanical Industry Bureau federation authentication of new products of scientific & technical results. Product quality is insured by People's Insurance Company of China. Series of composite insulators and Zinc Oxide Arrester manufactured by our company, sharing the features of advanced design, reasonable structure, reliable performance, that achieve to the national leading level. Our silicone Rubber insulator used on high-voltage line had been placed 'National Star plan' by Chinese Technical department, Composite Cross-arm Insulator had been honored City Technical Metal; And we are the first private enterprise that got KEMA test report for Composite Insulator and Arrester in China. Our products sell well through all parts of the country, as well as finding good markets in Iran, Indonesia, Vietnam, Kampuchea, Syrian, Korean, Canada etc., gaining favorable comments of domestic and abroad users.
We can designand produce all type composite Insulators as per user's requirement. Warmly welcome old and new customers visit our company. We try our best to develop the best products at highvoltage products basic with "toward excellence for creditable brand"
ZONRI company will go ahead together with you and cooperate with you in sincerely.
