680UF SMD Ultra Low Impedance Aluminum Electrolytic Capacitor

Name: 680UF SMD Ultra Low Impedance Aluminum Electrolytic Capacitor
Brand: all-electronics-online.com
SKU: 826179335
Availability: InStock
Rating: 5 (133 reviews)

Price:	US $ 0.088/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

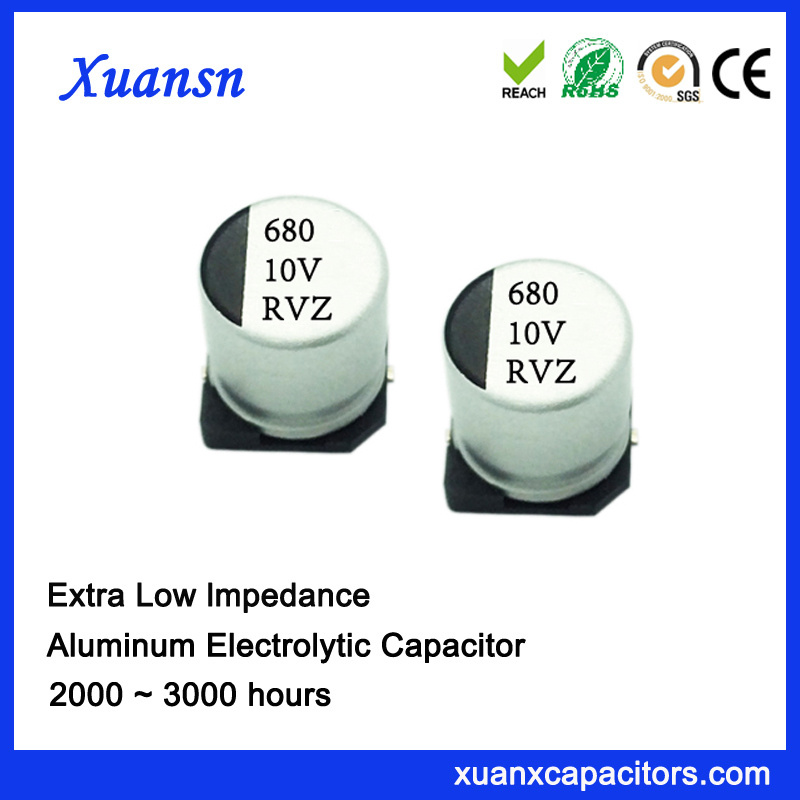

105°c High Frequency Ultra Low Impedance 680uf 10v Aluminum Electrolytic SMD Capacitors

680uf 10v Chip aluminum electrolytic capacitor
Load life of 2000 to 3000 hours at +105°c
Rated Ripple Current: 670mArms, Imppedance: 0.1Ω
Size:10*10.2
Provide Free Sample

Chip Ultra Low Impedance 680uf 10v Aluminum electrolytic capacitor is suitable for suitable for reflow soldering and high density surface assembly.
We also provide OEM and ODM services for the special requirements of your needs.

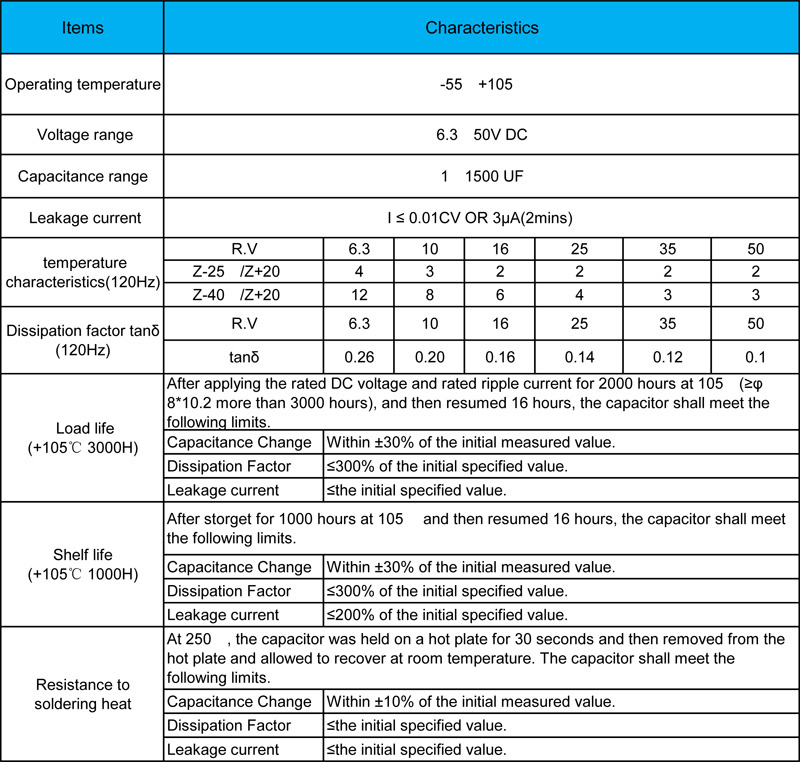

Specification:

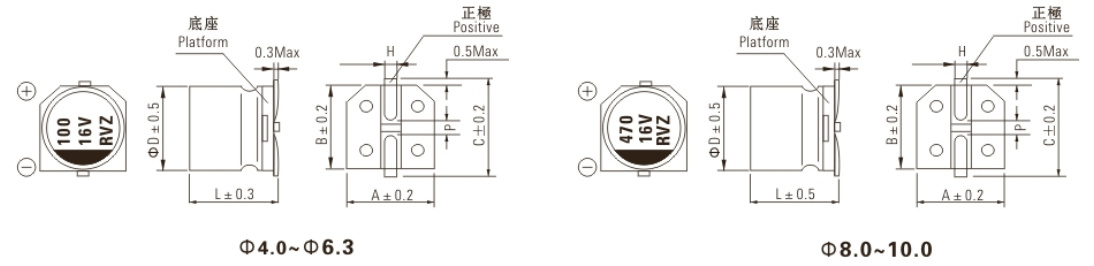

Dimensions:

ΦD(mm)	A(mm)	B(mm)	C(mm)	P(mm)	L(mm)	H(mm)
4.0	4.3	4.3	5.0	1.0	5.4	0.5~0.8
5.0	5.3	5.3	6.0	1.5	5.4	0.5~0.8
6.3	6.6	6.6	7.2	2.1	5.4	0.5~0.8
6.3	6.6	6.6	7.2	2.1	7.7	0.5~0.8
8.0	8.3	8.3	9.1	3.1	10.2	0.8~1.1
10.0	10.3	10.3	11.1	4.5		0.8~1.1

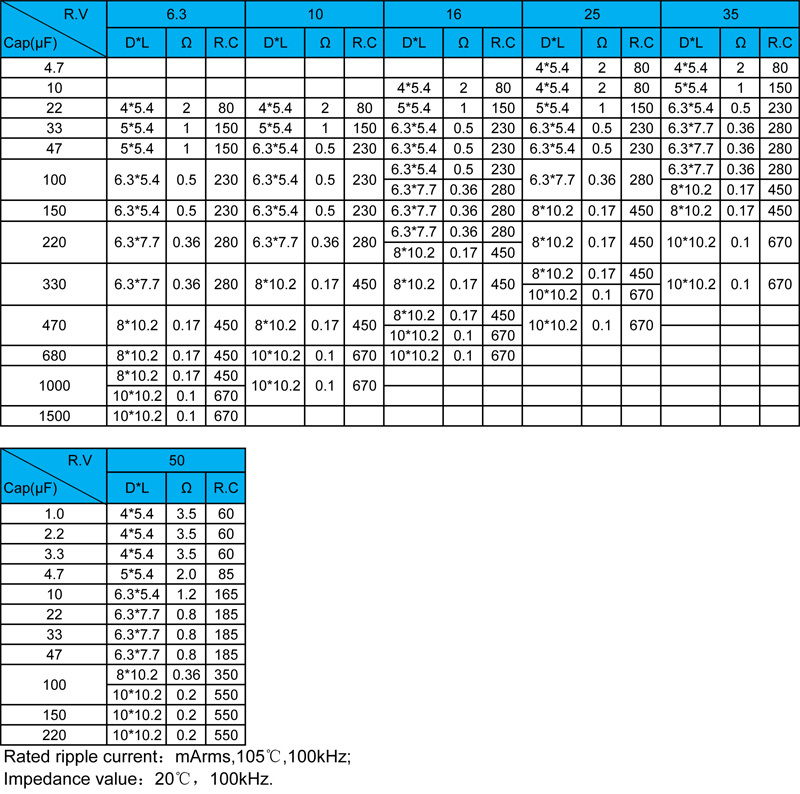

Standard Size(at 100kHz, 105°c):

Certifications:

Factory Show:

Our advantage:

We have a sound raw material cooperation system and cargo inspection mechanism.
Products with high stability, high temperature, small size, small tolerance and so on.
Product tolerances are strictly controlled between -15% to -10%.
We have the world's most advanced production equipment, and improve the management process.
We can provide custom design of your needs and provide free sample for you.
Our products comply with the RoHS Directive and the factory conforms to the ISO 9001 management system.

If you have any interesting and problems, please feel free to contact us!

Pho: +86-18825879082

Prod Model:	680UF10V
Rated Voltage:	10V
Rated Capacitance:	680UF
Ripple Current:	670marms
Impedance:	0.1Ω
Tanδ:	0.2
Type:	Aluminum Electrolytic Capacitor
Application:	Charger, Adapter,Ballast
Package Type:	Roll
Capacitance:	0.1 to 1500UF
Usage:	Reflow Soldering and High Density Surface Assembly
Tuning:	Electrolytic Capacitor

Dongguan Xuansn Electronic Tech Co., Ltd, started in 2001 and located in Changan Dongguan, is a professional manufacturer of capacitor. After almost 16 years management development and technical improvment. Now, Xuansn Electronic Tech Co., Ltd has become a leading supplier in capacitor industry.

Dongguan Xuansn Electronic Co., Limited is specialized in the manufacturing and supply of various capacitro. Xuansn main products include various types of Radial lead aluminum electrolytic capacitor, chip type SMD aluminum electrolytic capacitor and conductive polymer aluminum solid electrolytic capacitor. At the same time, we provide OEM and ODM services for the special requirements of the buyer,

Our Products are widely used in power supply(LED power supply, switching power supply, PC power supply), computer and comtuer's peripheral, communication equipment, automotive industry, industrial electronics, military equipment, medical equipment, household appliances and other fields.

After 16 years domestic and abroad market investigation, at present our products are sold to many countries and regions including the North America, Europe, Australia, the Middle East and Asia.

Dongguan Xuansn electronic Tech Co., Ltd owned the advanced production equipments, complete quality inspection system. And We have been constantly strengthening our management and consummate the quality guarantee system. And now we acquired ISO9001quality certification, RoHS environmental certification and CTI certificates.

Company Culture

Our team is the key to our success, we share common values, ideas and beliefs. Challenge ourselves and work together for the development of the company and the industry. Our mission is to become the world's leading supplier of capacitors. We will make every effort to help our customers in the common business development and growth.
