0.6m Carbon Fiber Flyaway Vsat Satellite Dish Antenna

Name: 0.6m Carbon Fiber Flyaway Vsat Satellite Dish Antenna
Brand: all-electronics-online.com
SKU: 818336285
Availability: InStock
Rating: 4.5 (59 reviews)

Price:	US $ 100-1000/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HXWTp0.6m
Size:	0.6m
Polarization:	Linear/Circular
Drive Type:	Manual
Color:	Black
Warranty:	1 Year
Enterprise Nature:	Manufacturer
Customized:	Available
Certificate:	ISO9001
Market:	Global
Logo:	Huaxin/Customized
Usage:	Communication Antenna
Usage Occasion:	Flyaway Antenna, Portable Antenna
Operating Wavelength:	Ku-Band
Material:	Carbon Fiber
Nature Of Operation:	Rxtx Antenna
Sturcture Form:	Tripod Mount

Product Description

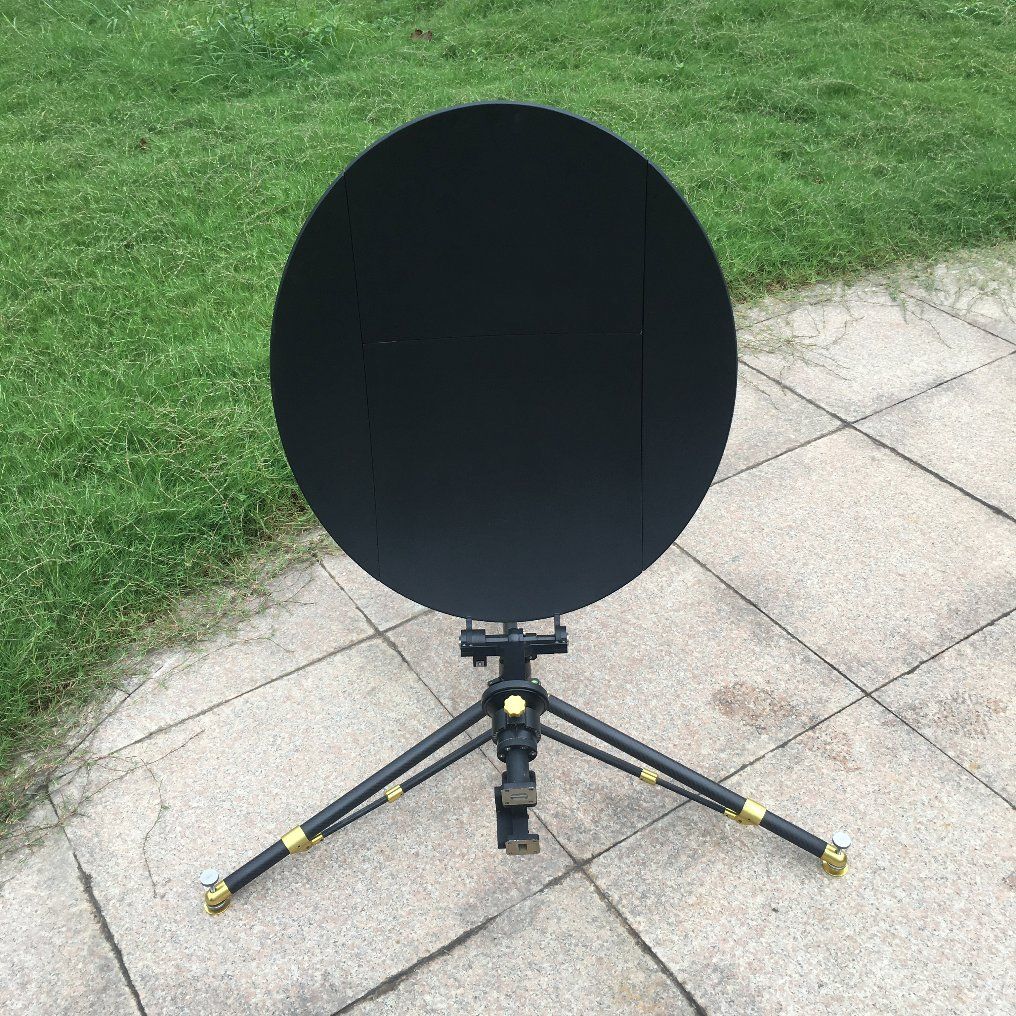

0.6m Carbon Fiber Flyaway Antenna

Features:
4 carbon fiber panels
High gain and excellent sidelobe performance
5 Minutes Setup
Easy & fast fine elevation adjustment
Nylon backpack case for tripod type

Specification of 0.6m Carbon Fiber Flyaway Antenna

R.F SPECIFICATIONS	Ku-Band
	RECEIVE				TRANSMIT
1. Frequency(GHz)	12.25-12.75				14-14.5
2. Gain(dBi)	≥35.5+20log(F/12.5)dBi				≥36.5+20log(F/14.25)dBi
3. Antenna Shape	Parabolic
4. Sidelobes	CCIR.580-6
5. The First Sidelobe Level	-14dB
6. Polarization	Linear Pol
7. Tx to Rx Isolation	≥85dB(Including filter)
8. Cross Pol Isolation
On Axis	≥30dB
9. VSWR	≤1.3:1		≤1.3:1
10. Feed Interface	WR75		WR75
MECHANICAL SPECIFICATION		ENVIRONMENTAL SPECIFICATION
1. Antenna Type	Offset	1. Wind Loading, Operational (With Ballast)				≤14m/s
2. Drive Type	Manual	2. Temperature, Operational				-40°C to 60°C
3. AZ Travel	±90°	2. Temperature, Storage				-55°C to 70°C
4. EL Travel	10° to 90°	3. Rain				12mm/h
5. POL Travel	±90°	4. Relative Humidity				0 to 100%
6. Reflector Material	Carbon fiber	5. Solar Radiation		360 BTU/h/ft²(1000Kcal/h/m²)
7. Reflector Segments	4	6. Ice			12mm
8. Mount Type	Tripod	12. Stowed Size			≤570mm×400mm×230mm (Excluding LNB, power amplifier, power supply and other followed equipment)
9. Surface Accuracy	0.3mm (R.M.S)
10. Antenna Weight(N.W.)	≤4kg
11. Feed Holder Bearing	≤2.5kg
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.

Company Introduction

Established in 1985, HUAXIN ANTENNA is a professional manufacturer which is specialized in all series of Satellite Earth Station Antennas, Carbon Fiber Antennas and Customized Antennas with size from 0.35m to 16.0m. Keeping adequate inventory and providing professional customized service, HUAXIN is able to meet clients' emergency requirements and satisfy clients' individual needs.

HUAXIN products have achieved ISO9001: 2008 Quality Management System Certification, some are type approved by Asiasat, APT, China Satcom, and some have Intelsat, Eutelsat, SES, and FCC certificates. Integrated with research, development, manufacturing and sales, HUAXIN has developed into one of the leading companies in the market with excellent quality and competitive price domestically and internationally.

Manufacturing Ability

Factory covers an area of 395000 sq FT, which owns workshop area of 215300 sq FT and research & development center area of 54000 sq FT.

Professional R&D center and test center (antenna feed technology lab, microwave test center, antenna far-field test center)

Independently design, develop and manufacture all kinds of antenna mould and antenna parts, which can effectively reduce the cost and shorten the lead time.

Excellent Production Capacity - 2 or 3 Shifts, able to operate big projects in short time; Keep a large stock of goods; Prompt and short period of delivery.

Precise CNC machine, dedicated tooling equipment:

Structural component processing equipment: CNC Machine Centre, CNC Gantry Milling Machine, CNC Boring Machine, CNC Lathe, CNC Vertical Drill Machine, CNC Cutting Machine, CNC Bending Machine

Panel processing equipment: Panel stretcher, Large-tonnage Hydraulic Machine, Autoclave

Tooling: Single Panel Riveting Tooling, Reflector Assembly Tooling

Surface Accuracy Measuring Equipment: MPS/S Single Camera Industrial Photogrammetric System

Electric Performance Test Equipment: Scalar Network Analyzer, Scalar Network Signal Source, Spectrum Analyzer, Signal Source

Surface Treatment Equipment: Shot blasting machine, Surface Grinding Machine, Professional Clean Spray Room
