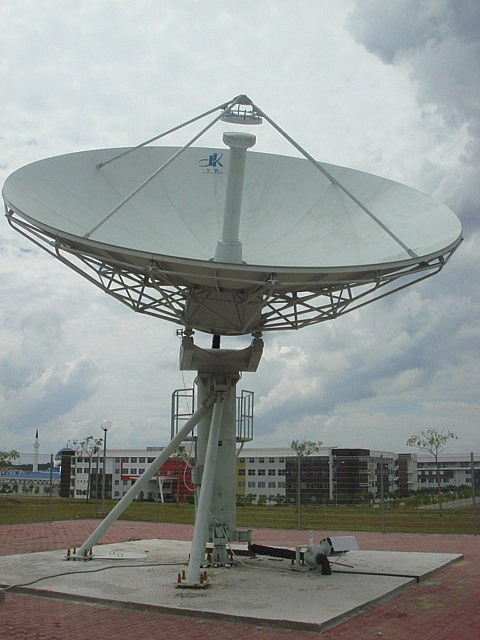

7.3m L-band Rx Only Antenna

Features:
Dual shape ring-focus design
Aluminum major reflector & sub reflector with high precision
Fashionable design, easy installation and adjustment
Factory feed system and king post pedestal assembled to reduce installation time
No field alignment required
Well in anti-corrosion
Excellent in stability

Specification of 7.3m L-band Rx Only Antenna

R.F SPECIFICATIONS	L-Band
	RECEIVE
1. Frequency(GHz)	1.1-1.5Ghz
2. Typical Gain(dBi)	38.08 at 1.3GHz
3. VSWR	1.3:1
4. Beamwidth (-3dB)	2.05°
5. Antenna Noise Temperature(K)	1Port Feed
20°Elevation	43K
6. Feed Interface	N type
7. Feed Insertion Loss	≥0.25dB
8. Cross Pol Isolation
On Axis	≥30dB
12. Sidelobes	CCIR.580-6
MECHANICAL SPECIFICATION		ENVIRONMENTAL SPECIFICATION
1. Antenna Type	Dual-reflector	1. Wind Loading, Operational (Maintain Precision)		60mph(97km/h)
2. Drive Type	Motorized	2. Wind Loading, Operational (Decrease Precision)		65mph(105km/h)
3. AZ Travel	±90°(3 segments)	3. Wind Loading, Survival (Fixed Heavenward)		125mph(200km/h)
4. EL Travel	5° to 90°	4. Ambient Temperature		-40°C to 60°C
5. POL Travel	±90°	5. Rain		100mm/h
6. Reflector Material	Precision formed aluminum	6. Relative Humidity		0 to 100%
7. Reflector Segments	16	7. Solar Radiation	360 BTU/h/ft²(1000Kcal/h/m²)
8. Mount Type	King post pedestal	8. Ice	25mm on all surface or 13mm on all surface with 130km/h wind gusts
		9. Shock and Vibration	As encountered during shipment by commercial air, sea or truck
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.
