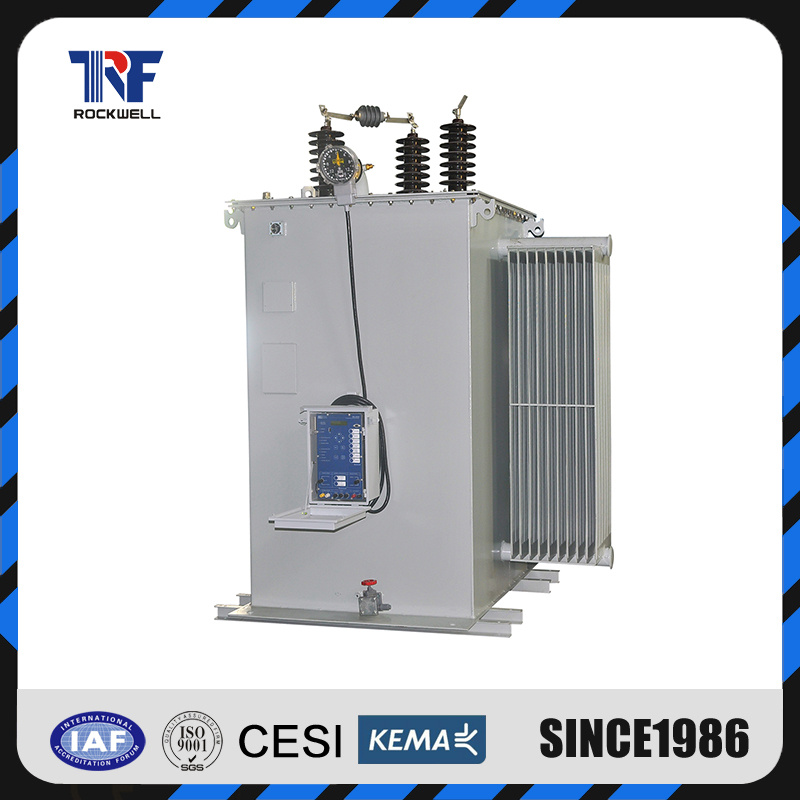

7.6kv 13.8kv 19.9kv Single Phase Voltage Regualtor 32steps Auto Transformer
| Price: |
US $ 28000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
RVR-1 Type
Single Phase 32-Step Voltage Regulator
2.5KV-14.4KV-33KV
GENERAL
The RVR-1 type feeder automatic voltage regulator is actually a single phase oil immersed auto-transformer with RVR controller and gathering sampling of voltage
¤t signal, on load tap charger controlling device to achieve gird more efficient from adjust the load character by increase and decrease the voltage.
So This RVR is a transformer equipped with on load tap charger with RVR controller sampling voltage and current data and on load tap charger steps from current transformer and voltage transformer and limit switches.
MAIN FEATURES
+The RVR-1 regulate distribution line voltages from 10% raise (boost) to 10% lower (buck) in thirty-two steps of approximately 5/8% each. Voltage ratings are available from 2400 volts (60 kV BIL) to 34,500 volts (200 kV BIL) for 60 Hz and 50 Hz systems.
+With RVR type Smart controller, a self-developed technology, GPRS/GSM, Blue-tooth.
+With self-protection LOCK-OUT functions: Line fault, Overload, OverCurrent, Under-voltage
+With adjustable voltage datum and step scope limit, step draw delay, data setting.
STANDARD FEATURES- Position indicator with ADD-AMP adjustment
- Control box
- Tap changer with motor and power supply
- Oil drain valve with sampling device
- Pressure relief device
- Lifting lugs
- Nameplates
- High-creep porcelain bushings
- Oil sight gauge
- Control cabinet with removable front panel
- Conformally coated circuit boards
- MOV-type external series arresters.
LOAD CURRENT AND KVA RATINGS, 50/60 HZ Voltage
(kV) | Load Current
(Amperes) | kVA |
2.5 kV 60 kV BIL | 200
300
400
500
668
1000
1332
1665 | 50
75
100
125
167
250
333
416 |
5.0 kV 75 kV BIL | 100
150
200
250
334
500
668
833 | 50
75
100
125
167
250
333
416 |
7.62 kV 95 kV BIL | 100
150
219
328
438
546
656
875
1093 | 76
114
167
250
333
416
500
667
833 |
13.8 kV 95 kVBIL | 100
150
200
300
400
483
604 | 138
207
276
414
552
667
833 |
19.92 kV 150 kV BIL | 50
100
167
200
335
418
502 | 100
200
333
400
667
833
1000 |
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
WHY CHOOSE ROCKWELL:
1. One-stop supplier globally.
2. More than 10 years professional experiences in electrical appliance industry.
3.We offer professional online technology support for perfecting your electrical solution free.
4. Experienced sales service and suggestion.
5. All the products with accessories under strict quality control and final inspection before shipping.
6. We can assure the powerful competitive price and reliable quality products.
7. Most competitive shipping rate from our own shipping forwarder.
8. Warranty assurance: 12 month
9. Whatever big or small order, we can provide you one-to-one service.
CONTACT US:
Contact person: Mr. Chen Chengming
Tel:86-577-27869969
Mobile:86-18668777248
Your Best Choice for Electrical Appliances Industry!!!
Please leave an inquiry to know more details about Price , Packing ,Shipping and Discount.
| Prod Model: |
RVR-1/32 |
| Material: |
Oil, Copper |
| Color: |
Gray, Green or Customized |
| Delivery Time: |
30days |
| Application: |
Power |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Auto-transformer |
| Brand: |
Rockwell |
Wenzhou Rockwell Transformer Co., Ltd. is a high-tech enterprise invested by Rockwill Transmission and distribution Group Co., Ltd. Our company is specialized in developing, manufacturing and marketing Single phase & three phase automatic step voltage regulator, Auto-transformers, power transformers, preventive auto transformer, CT and PT combinated Metering unit, and compact transformer and pad moubted substations.
Our company enjoys a worldwide reputation for our superior quality and service. In addition to the domestic market, our products are exported to America, Australia, Central Europe, Eastern Europe, Southeast Asia, the Middle East, Africa and other regions and countries.
Besides a great variety of products, we also provide you with professional technical solutions and services. If you have any problem, please feel free to contact us and our technicians will find a complete solution for you.
We always embrace the idea of developing together with customers and always try our best to provide users with safer, easier, greener and more energy-saving high and medium voltage electric equipment and components.
Note:
Rockwell's sister company Rockwill is offering manufacturing for MV and LV switchgears, ring main units, vacuum(gas) circuit breakers, reclosers, load break switches and Low voltage metering unit, Current transformer, Voltage transformer.
