7*7mm Self-Locking Switch Push Button Switch with DIP Type

Name: 7*7mm Self-Locking Switch Push Button Switch with DIP Type
Brand: all-electronics-online.com
SKU: 803152195
Availability: InStock
Rating: 4.8 (42 reviews)

Price:	US $ 0.058-0.061/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HY-77ZS
Type:	Normal Close
Kind:	Single-pole on-off Switch
Structure:	None
Brand:	HOY

Product Description

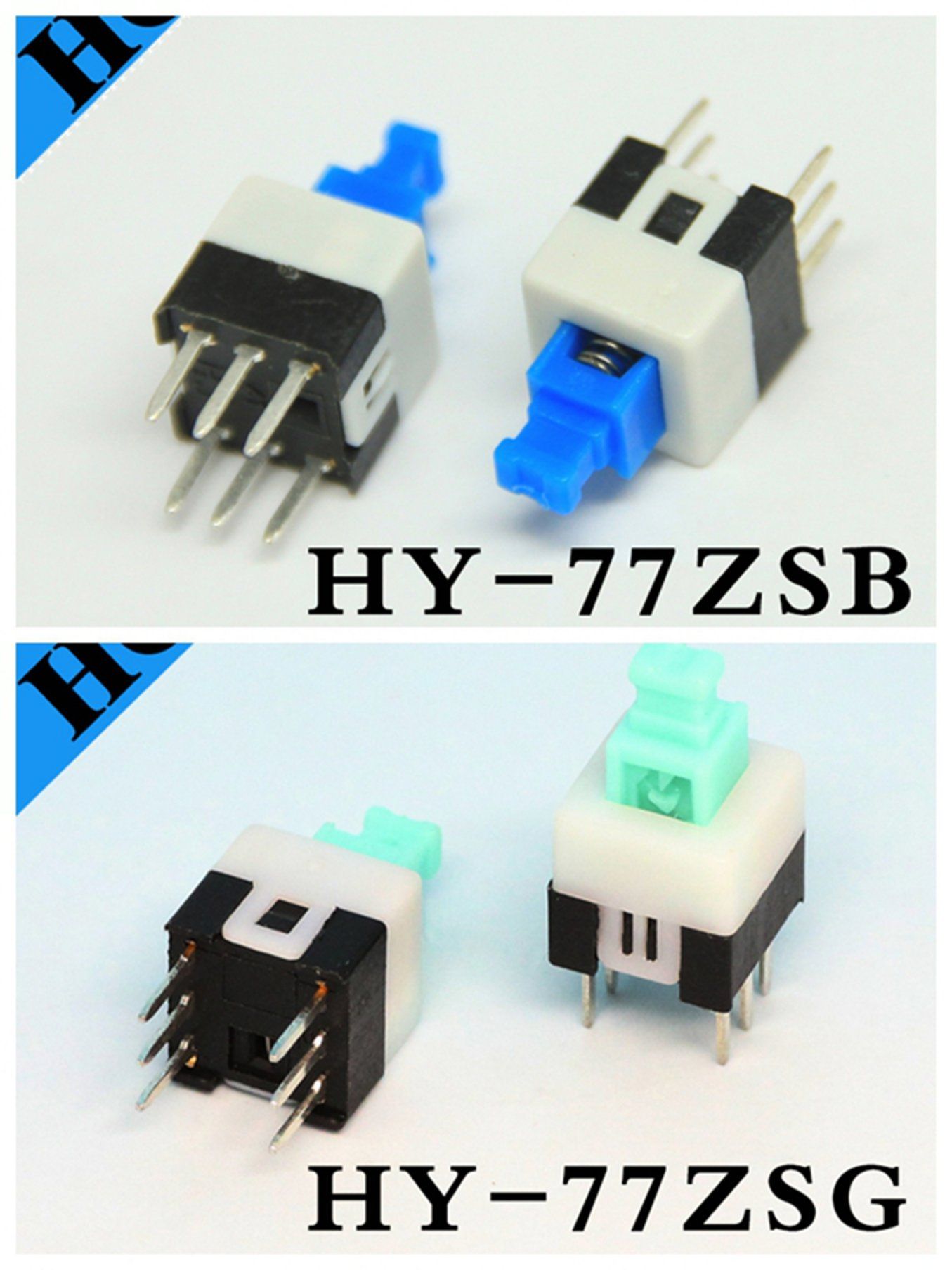

7*7mm Self-locking Switch Push Button Switch with DIP type
-------Innovative design, Good feeling and long life, Choices for button color, Easily to install

Specification:

Material:
1,Button: PA66/PBT/ABS ...
2,Base: PA66/PBT/ABS ...
3,Cover Plate: Stainless steel/PA66/PBT/ABS ...
4,Shrapnel: Stainless steel/C5210-EH-TA
5,Contact: Brass, Ag-plated

Electrical performance:

Rating	DC30V 0.1A
Operating Temperature	-25ºC~+85ºC
Relative Humidity	85%RH
Operating Force	≤3N
Contact Resistance	≤100mΩ
Insulation Resistance	≥100mΩ
Withstanding Voltage	AC 250V (50-60Hz) 1min
Life	10000 cycles Min

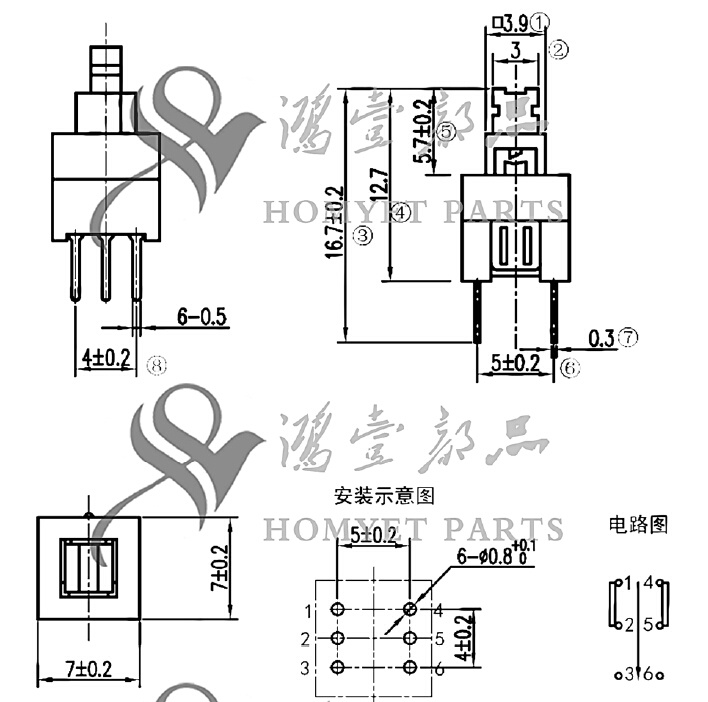

Product Datasheet:

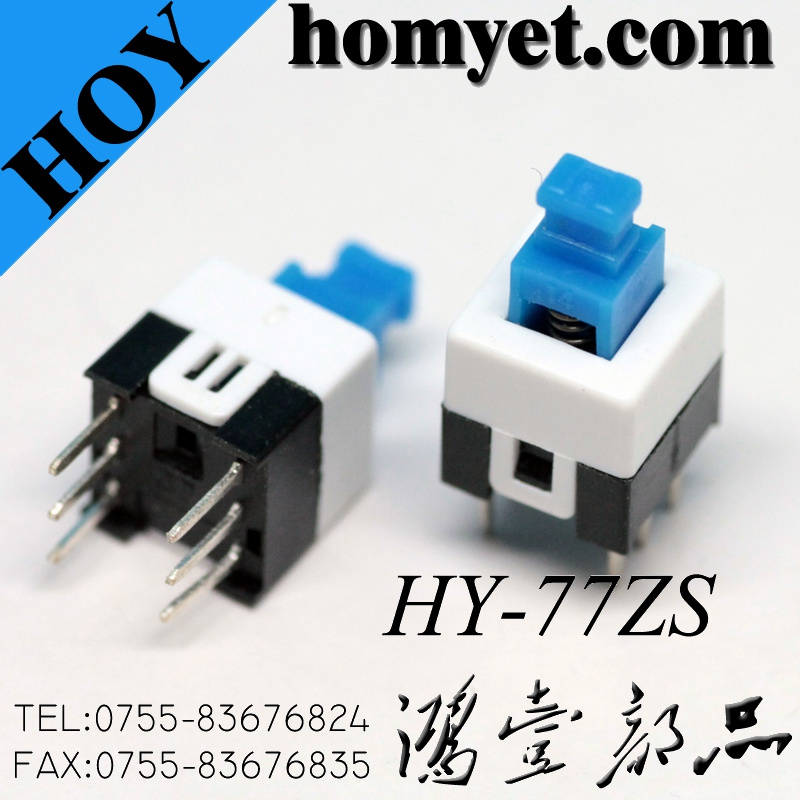

Product Detail Show:

Application Range:
1, Audio / Video product: MP3, MP4, DVD, stereo system
2. Digital devices: digital camera, digital video
3. Remote control: Vehicle, rolling door, Home security products
4. Communication products: mobiles, car telephone, telephone, building equipment, PDA etc.
5.Household Appliances: TV, microwave oven, electric cooker, electric hair drier, electronic scale, Body Fat &Water Scale, Kitchen Scale.
6. Security Products: Videophone, Monitor etc.
7. Toy: electronic toy etc.
8. Computer products: Camera, recording pen etc.
9. Fitness equipment: running machine, massage chair, timer etc.
10. Medical Equipment: sphygmomanometer, thermometer, the hospital call system and other similar products.

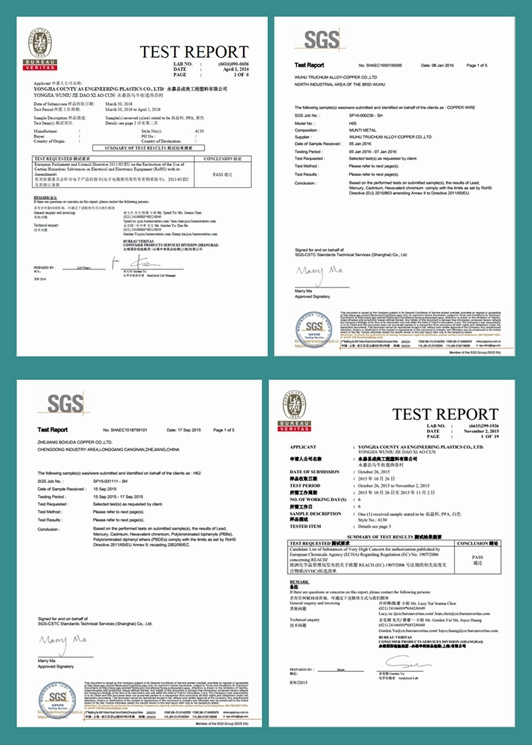

Products Certification:

Payment&Shippment:

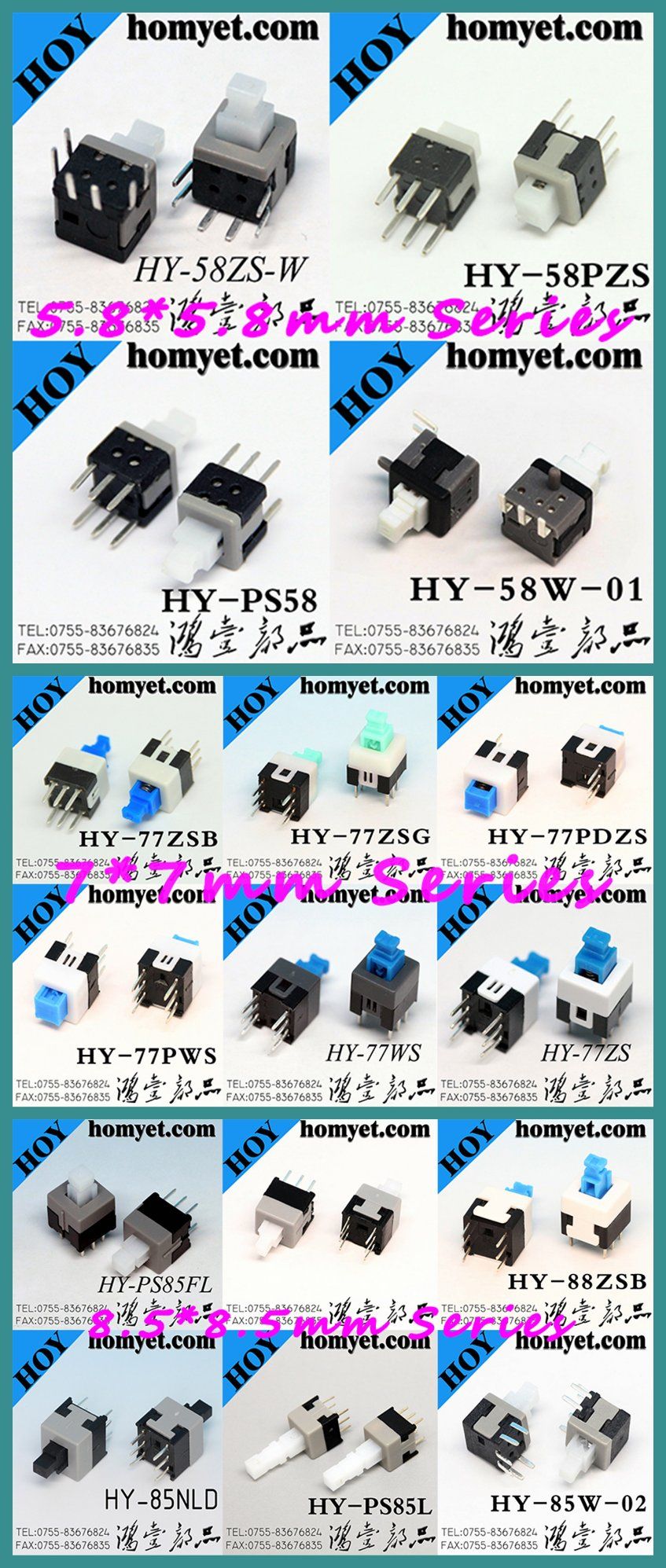

Related Products:
