72 Cores GYTS Outdoor Stranded Optical Fiber Cable for Network

Name: 72 Cores GYTS Outdoor Stranded Optical Fiber Cable for Network
Brand: all-electronics-online.com
SKU: 727345802
Availability: InStock
Rating: 5 (33 reviews)

Price:	Negotiable/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

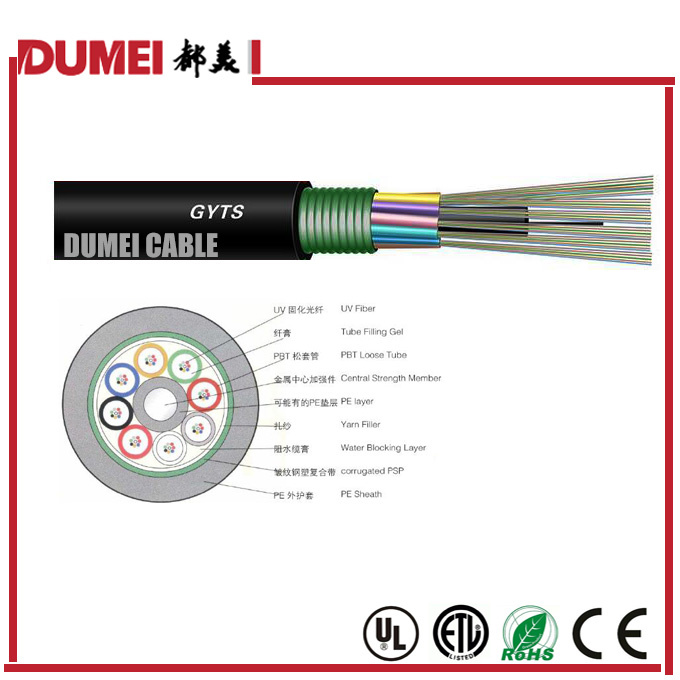

72 Cores GYTS Outdoor Stranded Optical Fiber Cable for Network

Cable Type:GYTS
Loose Tube Fiber
Central Strength Member
SZ layer stranded fiber filling with special filling Compound
Double APL adheres tightly with PE Sheath

Description
In the GYTS cable, singlemode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound. Tubes and fillers are stranded around the strength member into a circular cable core. An APL is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.

Application:
1,Long distance and local area network
2,Suitable for aerial pipeline laying method.
3,Operating Temperature:-40ºC-+60ºC

Cable Characteristic:
1,Low dispersion and attenuation
2,Proper design,precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental performance.
3,Compact fiber structure, especially using SZ layer stranded structure to keep the cable away from stress in bad environment.
4,Strength Member and water blocking filling compound is applied to keep the cable moisture proof and water proof.
5,Compact flexible structure and good bending-resistant performance.
6,PSP longitudinal wrapping structure is applied to keep cable better moisture proof performance,crush resistance performance and preventing rodent animal damage.

Product perameter

Model Number	GYTS
Type	Optical Fiber
Number of Conductors	72
Certification	TLC, ISO
OEM	Welcome to OEM
Jacket Material	PE
Outdoor Laying Mod	Directly buried
Application	1,Duct/Aerial 2,Local area network system and Subscriber network system. 3,The optical communication outdoor feeder and wiring in the network.
Operating Temperature	-40 to 60 degree

Technical parameters:

Items		unit	Details
Fiber counts		--	72
Optical fiber	Type	--	G.652,G.655
PE sheath		--	YES
Tension (Long/Short Term)		N	600/1500
Crush (Long/Short Term)		N/100mm	300/1000
Min. Bending radius		Dynamic	20times cable diameter
Min. Bending radius		Static	10times cable diameter
Temperature range		Operation	-40°C to 60°C
Application			Outdoor

1, Cable Factory

2, Advanced Measurement Equipments

3, Certifications

4, Contact Information

Prod Model:	GYTS
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC-SC
Certification:	Tlc
Brand:	Dumei
Sheath Material:	PE

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect o UR service, we provide the products with good quality at the reasonable price.
