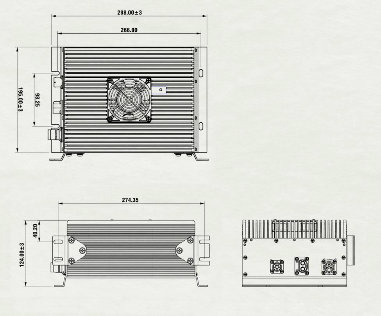

Summary PTCZ Series 2KW OBC are designed and produced, according to the national standard, for electric vehicle power battery pack to supplement the power. The product has the advantages of small size, high efficiency, long life, good stability, etc..And it also has the advantages of high degree protections, high reliability, complete protections and other features. It is the ideal electric vehicle charging power supply. The OBC is built-in with the thermal sensing device. So it is with overheating protection, can be automatically recovery. Fully sealed potting process and IP67 protection class are ensured that no failure will be caused in any complex environment. Installation and Interface definition photo

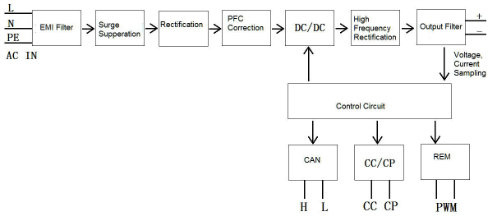

Schematic diagram:
CAN CommunicationAccording to customer requirements or provided agreement to set.
Product appearance requirements:
1. The outer surface should be smooth, no obvious scratches, deformation and other defects. Surface coating should be uniform.
2. Nameplate, logo installation is solid, writing clear.
3. Parts should be fastened reliable, no corrosion, burrs, cracks and other defects and damage.
4.It should be marked with product identification in the obvious place , including parts no., product trademarks, product models, production number, manufacturer name, warning instructions and so on.
Packaging, transportation, storage1. Packing: There are product names, product part numbers, product trademarks, product item, production number, the manufacturer,the packing list and product manual.
2.Transportation: car, boat, aircraft transportation., It should be sunscreen, moisture, civilized transportation.
3. Storage: Stored in the box when unused,kept in the cleaning, drying and ventilation good environment, temperature at 5 ºC to 40 ºC. Do not stored with chemicals, acid, alkali and corrosive substances. Avoid sunburn, roast and flood. The storage period of the product is 2 years (from the production date). The product should meet the relevant standards when the storage period expires 2 years.
Certificates
Nanjing Pengtu Power Supply Co., Ltd was established in 2007, is located in No. 381, Pugang Road, Jiangning District, Nanjing, China. Our company is a manufacturer specializing in power product development, design, production, sales and service company.
Products range are following.
Air cooling type AC/DC module power supply (AC/DC Converter), rate range from 3W to 2KW.
Air cooling type DC/DC module power supply (DC/DC Converter), rate range from 2W to 1KW.
Fan cooling type switching power supply, rate range from 5W to 10KW, including fan cooling and water cooling AC/DC on board battery charger 3.3KW and 6.6KW series.
Our company has not only passed ISO9001-2008 Quality System Certification, and some products through the Measurement of Jiangsu Province Academy of Sciences and National Electric Power Academy of Sciences and other authorities detection. Product safety and electrical properties fully comply with the Ministry of Information Industry YD/T731-2000 High Frequency Switch Rectifier Standard.
Our company is not only passed the IS09001-2008 quality system certification, but also IS014001 quality environmental protection system certification and automotive TS16949: 2009 system certification. Some products also pass electromagnetic compatibility through the "Jiangsu Institute of Metrology" and other authoritative departments of the test. Product safety and electrical performance in full compliance with the Ministry of Information Industry "YD / T731", "YD / T731-2000 high frequency switching rectifier standard", some products through UL, CE demonstration.
Since its establishment, our company adhere to the science and technology as the forerunner, take the technology as the backing, and constantly develop all kinds of hi-tech leading colleague' S new products. Currently we has a number of national patent. The "PengTu" brand power has been widely used in railway, military, aerospace, power, communication, control, instrument, car equipment, ship and major scientific research institutions, etc various fields. We have got high praise from the customers.
We will always remember the"quality first service first" business philosophy, to provide users with convenient one-stop service. With our practical, innovation, refinement spirit of enterprise, we accelerate the company' S technical innovation and product development and at the same time we will with more quality products, more detailed services and more excellent results return to the vast number of customers. Let us work together to create you and I better tomorrow.
