72V OEM 2500rmp DC Motor for Power Pump Packs
| Price: |
US $ 65-75/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
72V OEM 2500rmp DC Motor for Power Pump Packs
1. Technical Parameter| Type | ZD7201 |
| Volt | 72V |
| Power | 2.2KW |
| Current | 54A |
| Speed | 2500r/min |
| Protect Feature | IP44 |
| Duty | 2min-7.5%ED |
| Rotation | CW |
| Weight | 7.2kg |

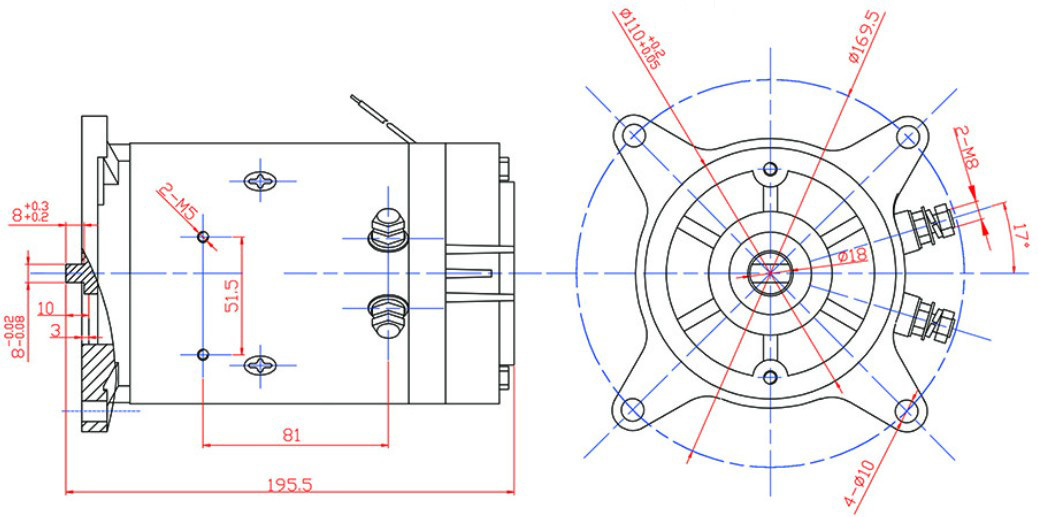

2. Outline Dimenson

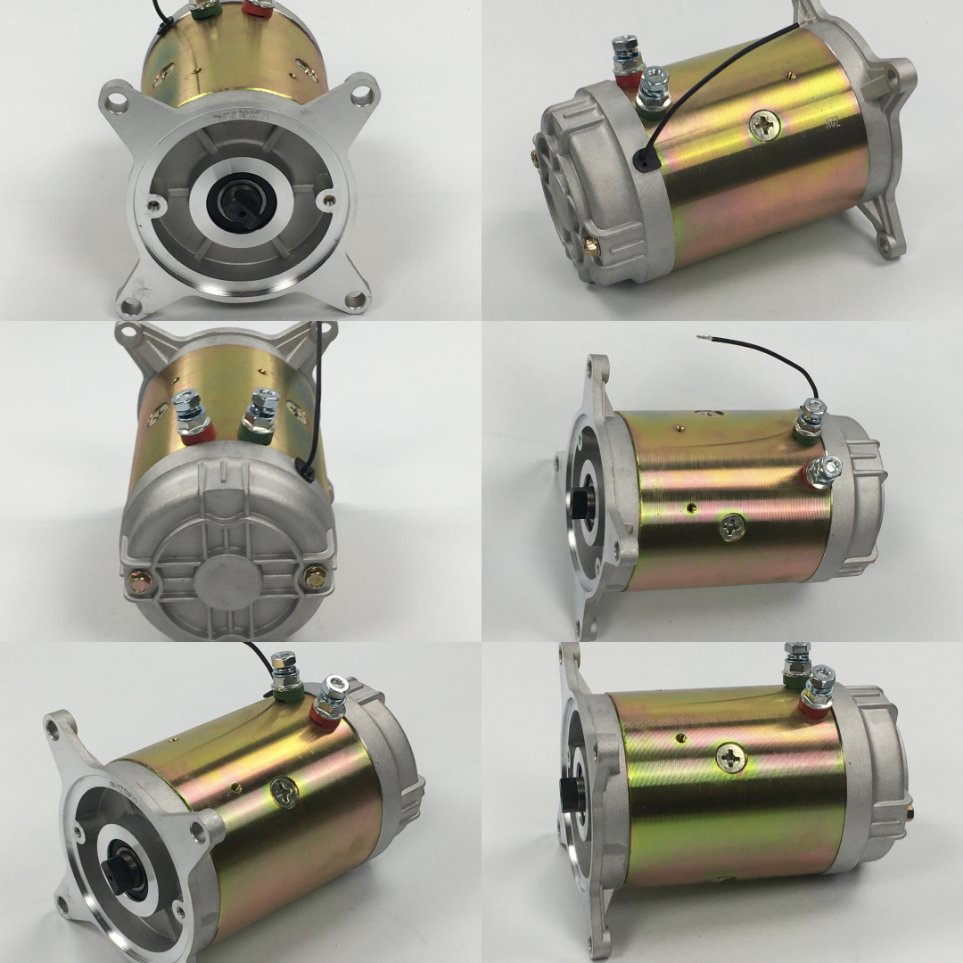

3. Product Pictures

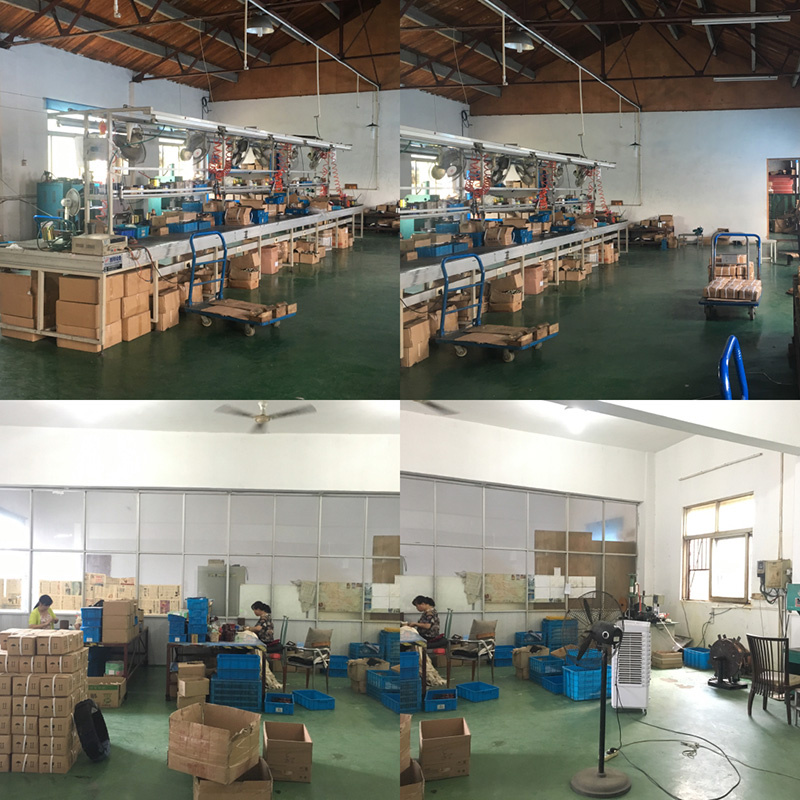

4. Motor WorkshopWe mainly have two large workshop for the motor which both equips the separate warehouse to install the accessories and each shop all has skillful workers to do the installation and winding. Our assemble workshop also has the test room to test each motor to keep the guarantee for the motor before package.
5. PackageWe commonly put each motor into one inner bag then put into carton box, then package it. If the carton boxes are more, we will put them into pallet to make the transportation more safer and convenient. Also the detail of each motor will have different, some motor needs to protect very well or if we ship them by express for example,we ship sample, then we will package it with inner carton box and outside carton box to double protect motor.
6. Our Servicesa. Helpful and passionate salesmen will help you know our product and company.
b. Professional engineer will solve your questions about our product.
c. Experienced worker will do the order and check the quality before delivery.
d. We can accept the OEM services under low MOQ.
e. Good after-sales services.7. ApplicationOur motors mainly used in hydraulic power units to provide the driving power.They can used into dump truck, lifting platform, lifter, electric stacker and etc.
8. FAQA. Are you a manufacture or trading company?
We are a manufacture which has our own company and located in Changzhou, Jiangsu.
B. Do you provide the sample?
Absolutely yes! We are glad to provide the sample.
C. Do you accept customized?
Yes, we have engineers can help you do the customized motor and had better have the sample.
D. How long you can get the products?
If our exist products, we will arrange package and send them out immediately.
If need to do it, it should depend on your qty, around 20days will send them out.
If you are interested to our products and want to know more information, pls donot hesitate to contact us. We are honored to povide the good service to you!
| Prod Model: |
7201 |
| Volt: |
72V |
| Current: |
54A |
| Power: |
2.2kw |
| Speed: |
2500r/Min |
| Rotation: |
Cw |
| Duty: |
2min-7.5%ED |
| Application: |
Power Tools |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brush |
| Operating Speed: |
Constant Speed/Low Speed |
| Casing Protection: |
Closed Type/Protection Type |
| Brand: |
Sanghao |
Changzhou Sanghao Vehicle Fitting Co., Ltd is established in 1992 and located in beautiful coast of Taihu Lake, which is a professional factory who mainly produce steel wheel hub and DC motor. The size of wheel hubs ranges from 4 inches to 12 inches, totally around 60 varieties. Different surface treatment of them can also be provided such as electrostatic spraying, hot galvanizing and etc. We have over 40 different kinds of DC motor whose power ranges from 0.3kw-4kw and all of them are used for hydraulic power unit for auto such as car tail plate, electric forklift, the lift platform of sanitation truck and etc. Our company makes 'doing every product perfectly and nicely and serving every client briskly and thoughtfully' as our purpose. Nowadays, we are constantly developing new products and absorbing new brains in order to make and improve first-class team and quality. At the same time, we have passed ISO9001-2000 to supervise our quality. We sincerely welcome customers at home and abroad to cooperate with us.
