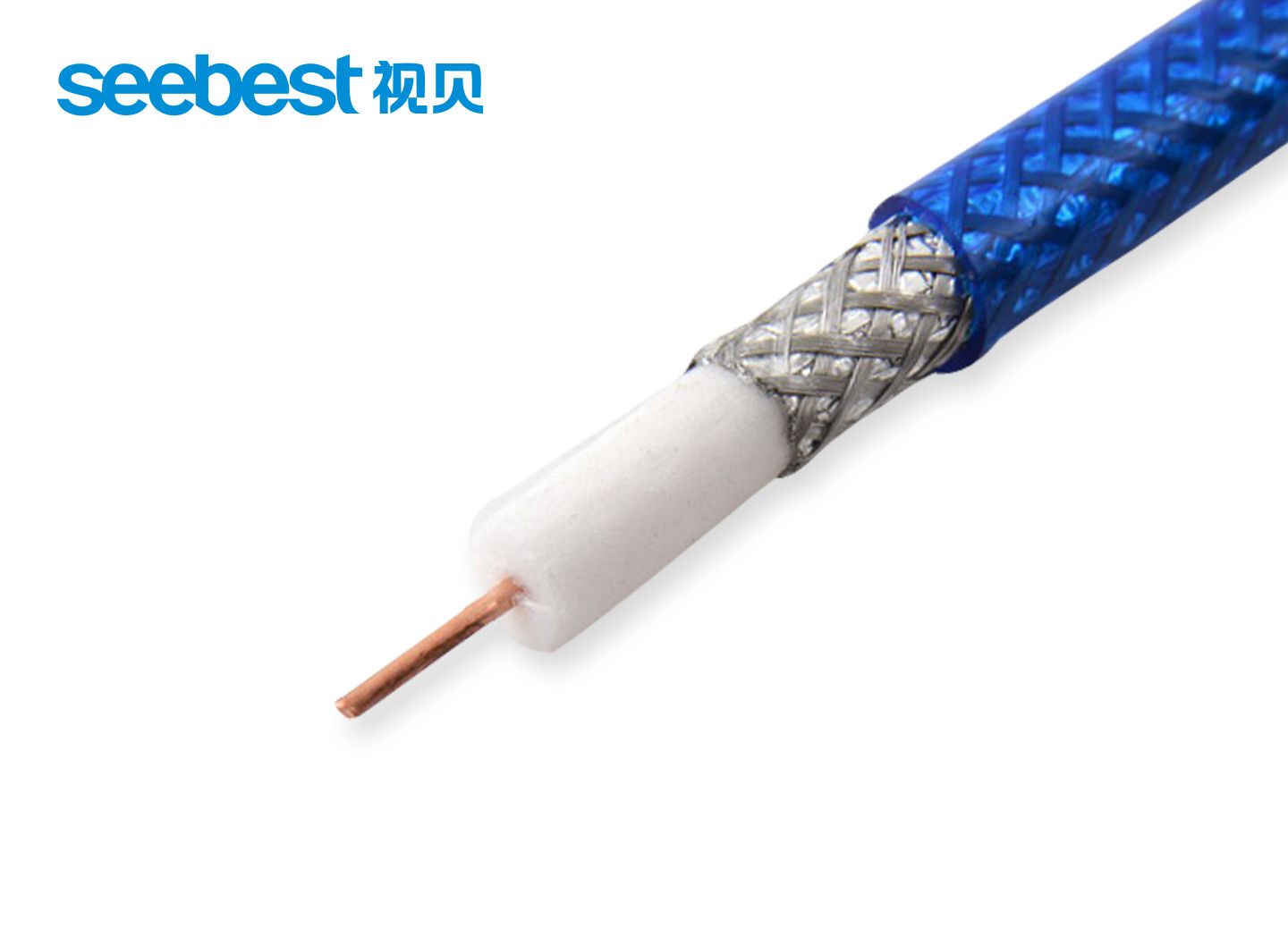

75 Ohm Flexible Coaxial Audio RF/Rg CCTV Cable
| Price: |
US $ 0.05-2kilometers |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
3kilometers |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |

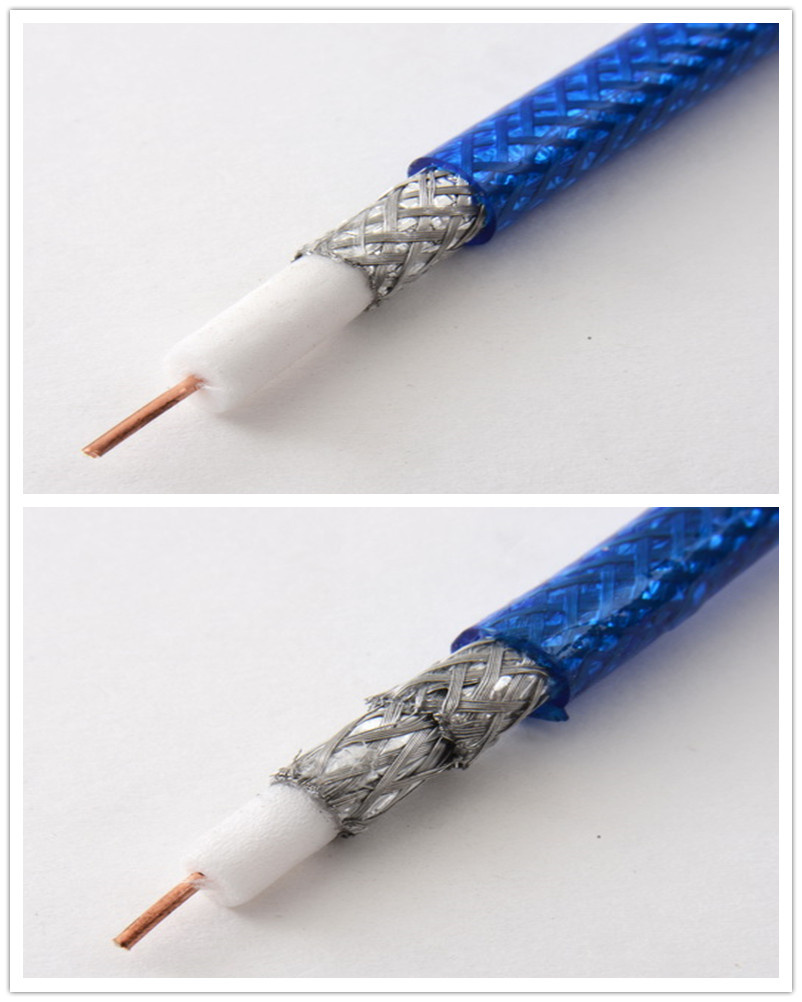

High Quality Professional 75 Ohm Coaxial Cable | Item Description | Coaxial Cable |
| Model No. | BD512-80GB |
| Center Conductor | OD | 1.0±0.02mm |
| Material | OFC/CCA/CCS/BARE COPPER |
| Dielectric | OD | 4.8±0.05mm |
| Material | Foamed PE |
| Shield | Wires | 80*0.12mm |
| Material | Al-Mg braiding |
| Coverage | 90% |
| Jacket | OD | 7.4mm±0.05mm |
| Material | PVC |
| Impedance | 75±3 ohm |
| Nominal Capacitance(pF/m) | 50 |
| Nominal Velocity of Propagation(%) | 83%-85% |
| Sparker Test(VAC) | 4000 |
| Return Loss | 20dB min (5-2250 MHz) |
| Package | 100M/Roll, 200M/Roll or as required |
Cable Options:
1. Inner Conductor: Bare Copper, CCA, CCS or SPC,
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, Copper Foil
4. Braid wire material: Bare Copper, AL, CCS CCA, AL-Mg, TC wires
5. Braid wire diameter: 0.10mm, 0.12mm, 0.13mm,0.14mm,0.15mm, 0.16mm,etc.
6. Braid Nets: 48W, 64W, 80W, 96W, 128W 144W,168W,192W and more
7. Braid Coverage: 40%, 60%, 77%, 85%, 90%, 93%, 97% or customized.
8. Jacket Material: PVC, PE, FR-PVC, LSZH, TPE, etc.
Packing & Shipping
1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients' request
5) Usually we deliver our products by SEA.
Other delivery methods are available upon request from clients.Our Service:- Quick Response --All inquiries will be replied within 24 hours.
- Professional Quotation --All pricing will be quote according to customers' detailed specifications & requirements.
- OEM & ODM Service
--Can print your own brand on the cable printing with foot or meter marking.
--Make customized designs for stickers, drums, outer cartons, etc. - Stable Quality --All materials and products passed restrict QC procedures, compliant with international standards.
- Fast Delivery --LCL orders, 15 Days after confirmation; FCL orders, 20 days after confirmation.
- Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.
FAQ:
Q: What kind of cable do you produce?
A: We specialize in producing coaxial cables, Lan cables & telephone cables, CCTV cable, Network engineering cable, HDMI cable etc
We also provide products links to cable
such as connectors, crimping tools, antenna dishes,taps, splitters etc.
Q: What's your MOQ?
A: Our MOQ is 40km per item. Free samples can be sent for your quality evaluation.
3. Q: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit. Its base on the quantity of the order.
4. Q: What are your payment terms?
A: We accept T/T, L/C. Other payments accept through negotiation.
5. Q: What is your manner of packing?
A: Inner packing: wooden reel, plastic reel, paper reel, shrink wrap;
Outer Packing: carton, pull-out-box, plastic pallet, wooden pallet;
We can provide customized packing as per your requirement or brand requirements.
6. Q: Can your factory customize cables based on customer's samples?
A: Yes, we can. OEM and ODM are both welcome.
7. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xiamen city, fujian Province, China.
Half an hour drive way from Xiamen international airport. All clients, from home or abroad, are warmly welcome to visit us.
8. Are you a factory or trading company?
We are the manufacturer of high quality bare conductor, building wire , ABC cable , power cable etc.Company Introduction:
Xiamen Seebest technology Co., ltd was established in 1999 which is a leading manufacturer of various cables located in Xiamen Fujian. The main products include BV/BVR/RVV/RVS cable, coaxial cable, communication engineering cable, jumper cable, AV connection cable, HDMI cable and so on. With advanced manufacturing and test equipment introduced from both domestic and abroad , we have standardized manufacturing process and leading ability in production and R&D. Products above can be manufactured in accordance with the standard of GB,IEC,BS,DIN,ASTM,JIS,NF and AS/NZS, etc and OEM produce service is provided. Now company have a wide marketing network both in China and abroad, such as Mid east, Asia, Africa, North America, Europe, etc. Our products enjoy a good reputation in both domestic and abroad.
Both OEM and OEM service are provided. Hoping to establish long term business relationship with customers from all over the world.
Contact Information:
Xiamen Seebest Cable Co., Ltd
Address: No.372 Huanzhou Road, Jimen Zone,Xiamen, Fujian China
Tel: 0086-592-7792623 Fax: 0086-592-7792618/7792619
Mobile: 0086-18259296972
| Prod Model: |
BD512-80GB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Braid: |
Al-Mg Braiding Wires |
| Shield: |
Al Foil |
| Dielectric: |
Foamed PE |
| Shielding Coverage: |
30%-95% |
| Impedance: |
75 Ohm |
| Sparker Test: |
4000VAC |
| Jacket Material: |
PVC, PE, Fr-PVC, Lszh, TPE |
| Application: |
Coaxial Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Type: |
Cat 6 |
| Certification: |
UL |
| Model: |
Sywv |
| Brand: |
ODM or OEM |
