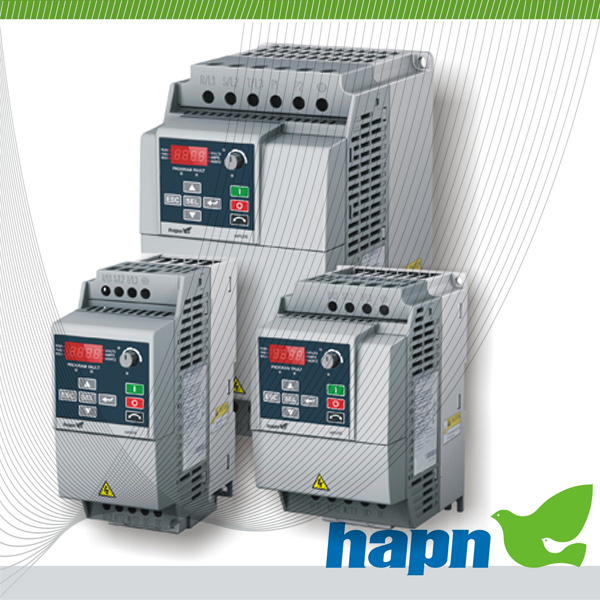

0.75kw ~11kw Hpvfe Frequency Inverter/AC Drive/VSD/VFD

Name: 0.75kw ~11kw Hpvfe Frequency Inverter/AC Drive/VSD/VFD
Brand: all-electronics-online.com
SKU: 675683072
Availability: InStock
Rating: 4.8 (101 reviews)

Price:	US $ 65-100000/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

1pH, AC240V, 0.2~2.2kW
3pH, AC240V, 0.2~7.5kW
3pH, AC380~480V, 0.4~11kW
Control: V/F mode, Built-in filter(optional)
Modbus communication, RS485 interface
150% overload for 60s, 200% overload for 3s
Under 3.7kW inclusive, DIN rail mounting is available.
Efficiency: 97.5% (typical)
150% overload for 60s, 200% overload for 3s
Dynamic Braking
Multi-protection Function
Application: Blowers, pumps, compressors, textile machinery

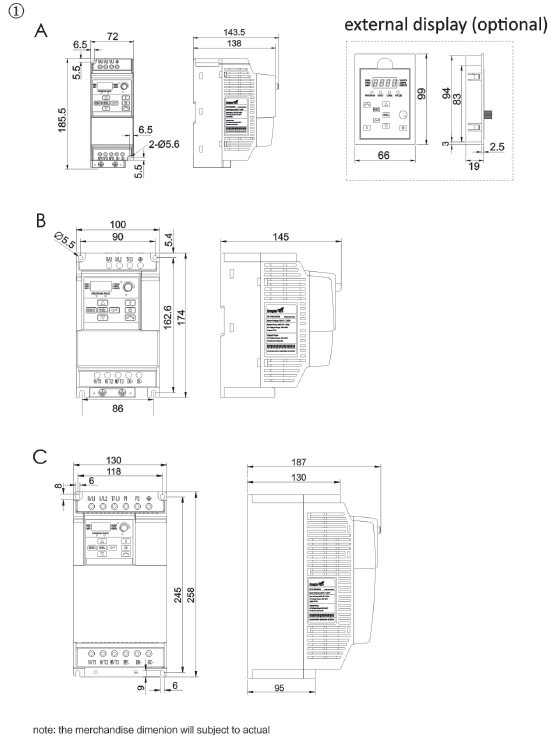

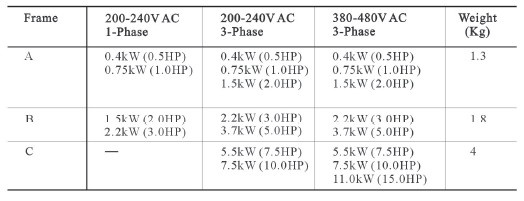

Drive Ratings				Catalog Number	Frame	Size W×H×D
Input Voltage	kW	HP	Output Current(A)	Panel Mount	Frame	Size W×H×D
240V 50/60Hz 1- phase	0.2	0.25	1.6	HPVFE02S0D2	A	72×185.5×143.5
	0.4	0.5	2.5	HPVFE02S0D4
	0.75	1	4.2	HPVFE02S0D75
	1.5	2	8	HPVFE02S1D5	B	100×174×145
	2.2	3	11	HPVFE02S2D2	B	100×174×145
240V 50/60Hz 1- phase ,with filter(1)	0.2	0.25	1.6	HPVFE02S0D201	A	72×185.5×143.5
	0.4	0.5	2.5	HPVFE02S0D401
	0.75	1	4.2	HPVFE02S0D7501
	1.5	2	8	HPVFE02S1D501	B	100×174×145
	2.2	3	11	HPVFE02S2D201	B	100×174×145
240V 50/60Hz 3- phase	0.2	0.25	1.6	HPVFE02T0D2	A	72×185.5×143.5
	0.4	0.5	2.5	HPVFE02T0D4
	0.75	1	4.2	HPVFE02T0D75
	1.5	2	8	HPVFE02T1D5
	2.2	3	12	HPVFE02T2D2	B	100×174×145
	3.7	5	17.5	HPVFE02T3D7	B	100×174×145
	5.5	7.5	25	HPVFE02T5D5	C	130×253×287
	7.5	10	33	HPVFE02T7D5	C	130×253×287
480V 50/60Hz 3- phase	0.4	0.5	1.5	HPVFE04T0D4	A	72×185.5×143.5
	0.75	1	2.5	HPVFE04T0D75
	1.5	2	4.2	HPVFE04T1D5
	2.2	3	6	HPVFE04T2D2	B	100×174×145
	3.7	5	8.7	HPVFE04T3D7	B	100×174×145
	5.5	7.5	13	HPVFE04T5D5	C	130×253×287
	7.5	10	18	HPVFE04T7D5
	11	15	24	HPVFE04T11
480V 50/60Hz 3- phase with filter(1)	0.4	0.5	1.5	HPVFE04T0D401	A	72×185.5×143.5
	0.75	1.0	2.5	HPVFE04T0D7501
	1.5	2.0	4.2	HPVFE04T1D501
	2.2	3.0	6.0	HPVFE04T2D201	B	100×174×145
	3.7	5.0	8.7	HPVFE04T3D701	B	100×174×145
	5.5	7.5	13.0	HPVFE04T5D501	C	130×253×287
	7.5	10.0	18.0	HPVFE04T7D501
	11.0	15.0	24.0	HPVFE04T1101

Prod Model:	HPVFE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	0.4~11kw
Output Voltage:	220~480V
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	V/F Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
