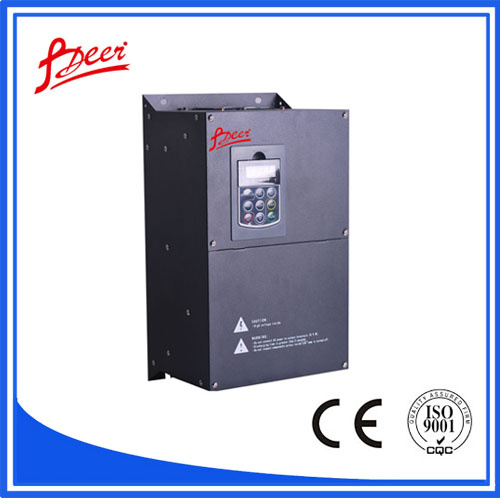

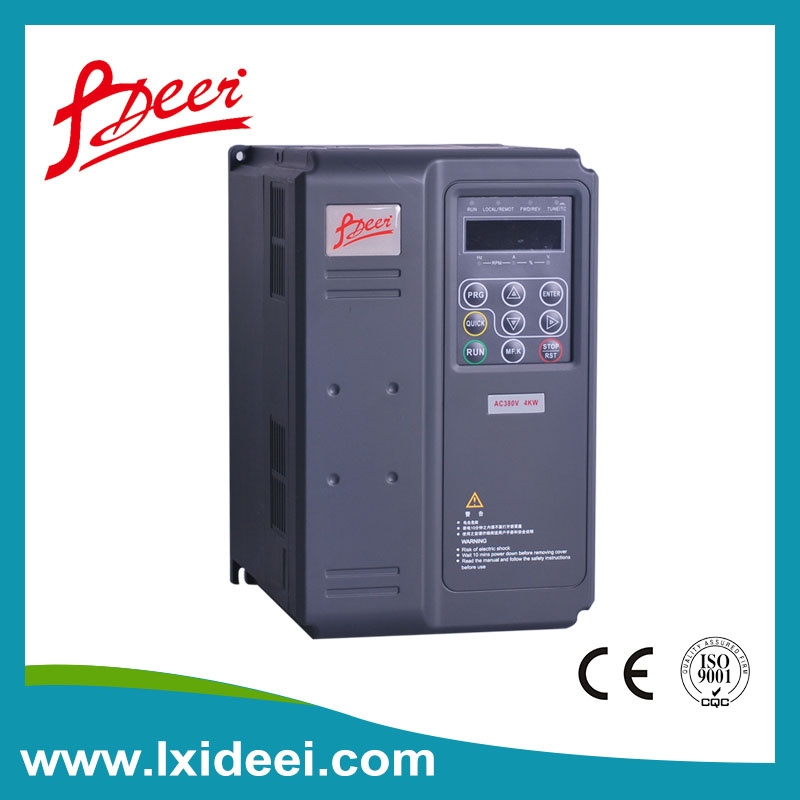

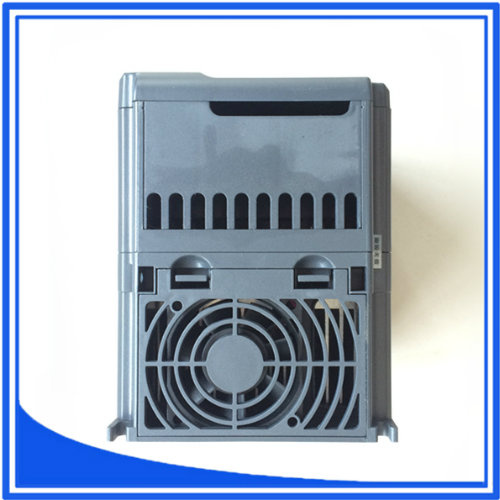

3300 series AC drive:3300-0R7G-4
The 3300 series AC drive is a general-purpose high-performance current vector control AC drive. It is an upgrade product based on 3100 and can implement the control of asynchronous motor and permanent magnet synchronous motor (PMSM). It increases the user programmable function, background monitoring software and communication bus function, and supports multi-kind PG cards. It is used to drive various automation productionequipment involving textile, paper-making, wiredrawing, machine tool, packing, food, fanand pump.

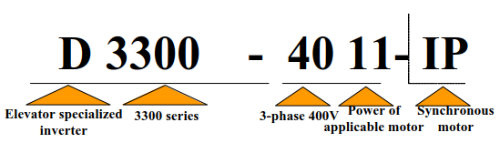

Naming rule
0.75kw Three Phase 380v variable frequency Inverter

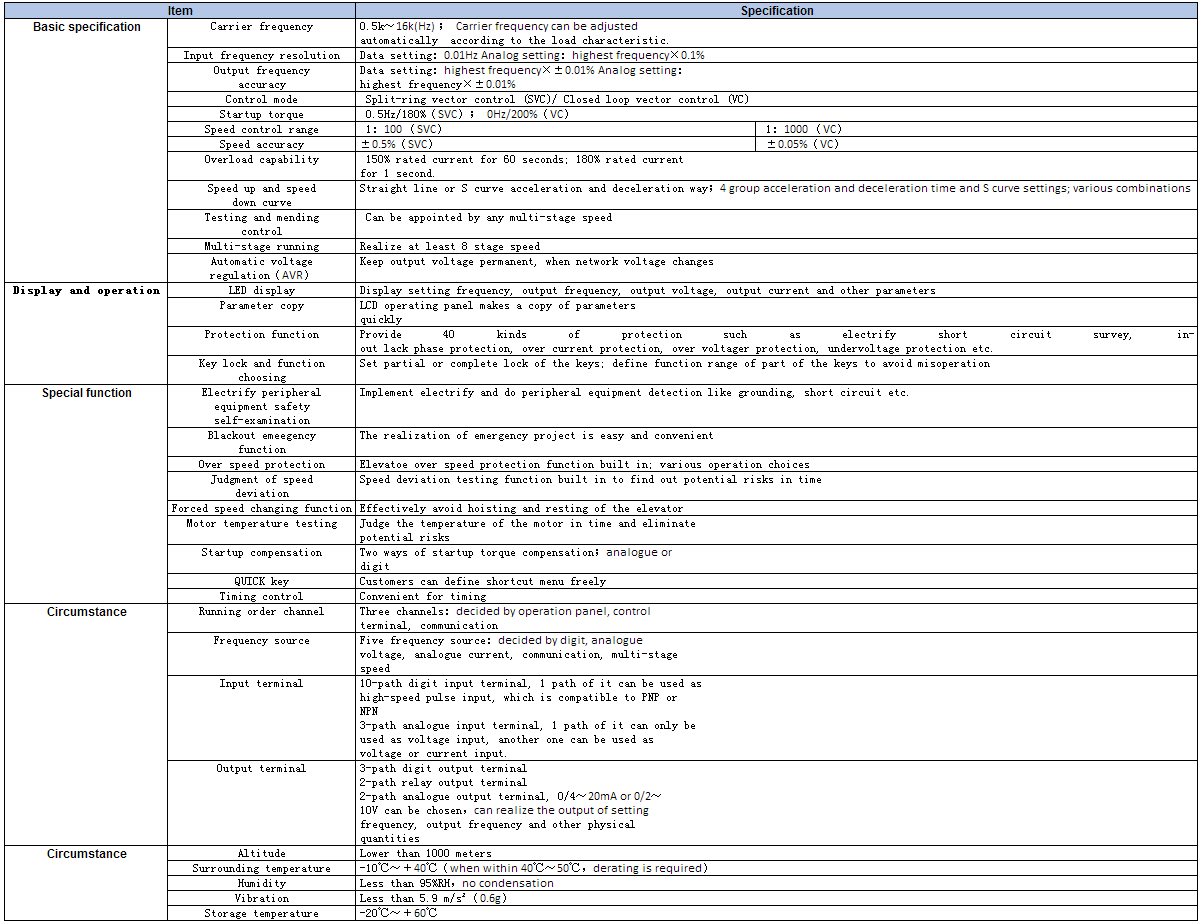

Technical Specification

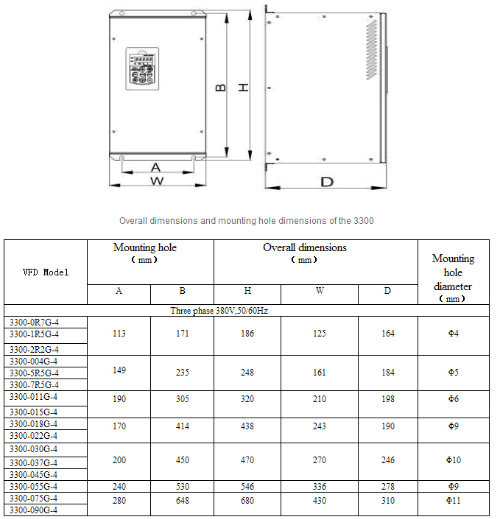

Installation Size
Our Services
OEM Service:
We can desgin and produce it according to your requirements. We have been offering OEM service for over 10 years.
Warranty of Products:
The warranty period of the product is 18 months.
Sample:
We can offer samples for free, but the freight cost must be at customer.
Packaging & Shipping
PVC BAG + SPONGE + CARTON + WOOD BOX FOR FREE FUMIGATION
Introduction
Compared with MD320, the MD380 series AC drive incorporates the following improvements:
1) Control of asynchronous motor and PMSM
It supports vector control of three-phase AC asynchronous motor and three-phase ACPMSM.
2) Diversified control modes
It supports three control modes, namely, sensorless flux vector control (SFVC), closedloop vector control (CLVC) and V/F control.
3) Multiple communication protocols
It supports communication via Modbus-RTU, PROFIBUS-DP, CANlink and CANopen.
4) Multiple encoder types
It supports various encoders such as differential encoder, open-collector encoder,resolver and UVW encoder.
5) All-new SFVC algorithm
It introduces an all-new sensorless flux vector control (SFVC) algorithm that gives better low-speed stability, enhanced low frequency loading capacity, and supports torque control.
6) User programmable function
The MD38PC1 programmable card enables you to write programs in ladder diagram.Its programming environment is compatible with that of the H1U series PLC.
7) Advanced background software
The background monitoring software helps to achieve functions of parameter upload &download and a real-time oscilloscope.
8) Other new functions
Company Information
Haiyan Lxdeer Electronic Technology Co., Ltd. is located in rich and prosperous Zhejiang Haiyan. The company is a professional inverter manufacturer integrating R&D, manufacture and sales.
We have been devoted to R&D, manufacture and sales of inverters for a long time. We insist on the policy and concept of "Technological Innovation, Excellence Pursuit, People Orientation, Technology Revitalization" and tenet of "Create Value for Customers". Our products are widely used for petrochemical industry, steel, building material, oil field, spinning, chemical industry, printing, plastic, machine tool, mine and other industries.
Our company has national sales service network, solid R&D and engineering strength, advanced production equipment, world-class inspection equipment and nearly 10,000m2 modern production base, and establishes long-term partnership with hundreds of dealers and thousands of users, and our products are exported to Southeast Asia, Middle East, Europe, America and other countries and regions.
We believe that we will become one of the most influential specialized companies in the field of variable frequency drive! We will become your trustworthy partner!
Haiyan Lixiang Electronic Technology Co., Ltd. Was founded in 2012, located in the Haiyan city. It is a professional frequency converter manufacturer engaged in R&D, production and sales.
Lixiang has the principles and concept of "technology innovation, pursuit of excellence, people - centered, science and technology enterprise", and "creating values for customers" is its business purpose. We commit to innovate and research for special machine, and improve the frequency inverters according to customers' needs. It achieves good results.
The products are used widely in steel, building materials, textile, printing and machine tool industries, etc.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
The company owns a large sales service network throughout China, and it also has a modern production base with international manufacturing and testing equipments. We have created the partnerships with hundreds of distributors and thousands of customers. At the same time, the products and exported to Southeast Asia, Middle East, Europe, the US and other areas.
We believe Lixiang Electronic Technology will become one of the most influential companies in frequency conversion field. And we will be your trustworthy partner!
