7s BMS / PCM PCM-L07s10-269 for Li-ion / LiFePO4 Battery

Name: 7s BMS / PCM PCM-L07s10-269 for Li-ion / LiFePO4 Battery
Brand: all-electronics-online.com
SKU: 722644945
Availability: InStock
Rating: 4.4 (30 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

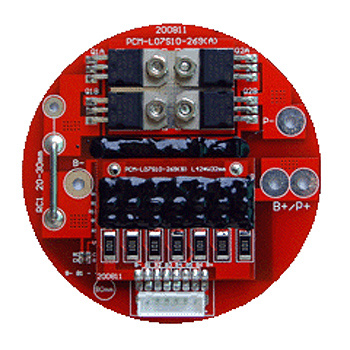

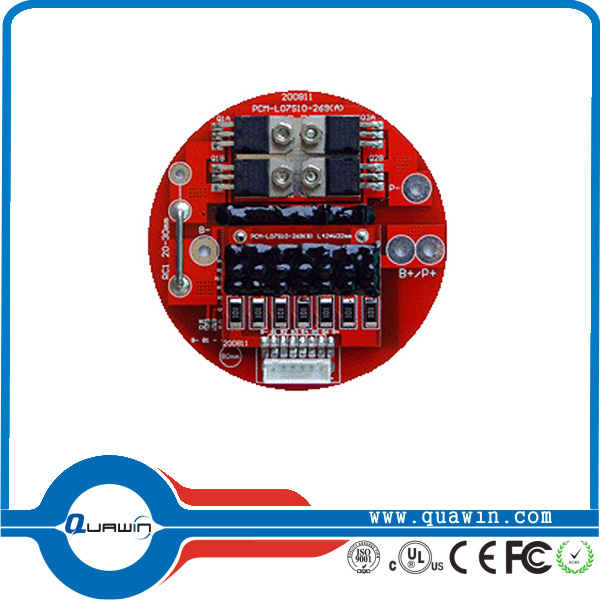

Protection Circuit Module For 7S Li-ion/Li-polymer/LiFePO4 Battery Pack

Maximal continuous charging and discharging current is 10A

No.	Test item		Criterion
1	Voltage:	Charging voltage:	CC/CV: Li-ion/Li-polymer(4.2V/cell); LiFePO4(3.6V/cell)
1	Voltage:	Balance voltage for single cell	Li-ion:4.20 V±0.025V LiFePO4:3.60V±0.025V
2	Current	Balance current for single cell	085-mA
		Balance current for single cell	≤20μA
		Maximal continuous charging and discharging current	10A
3	Over-charge Protection	Over charge detection voltage	3.8-4.4V(can adjust)
		Over charge detection delay time	0.5~2.5S
		Over charge release voltage	3.8-4.4V(can adjust)
4	Over-discharge Protection	Over discharge detection voltage	1.9-3.1V(can adjust)
		Over discharge detection delay time	50-300mS
		Over discharge release voltage	1.9-3.1V(can adjust)
5	Over-Current Protection	Over current detection voltage	0.6V
		Over current detection current	30-100A
		Detection delay time	1~50ms
		Release condition	Cut load
6	Short Protection	Detection condition	Exterior short circuit
		Detection delay time	200-500us
		Release condition	Cut load
7	Resistance	Protection circuitry(B- to P-)	≤20mΩ
8	Temperature	Operating temperature range	-40-+85
8	Temperature	Storage temperature range	-40-+125
9	Size		Φ80mm

Prod Model:	PCM-L07S10-269
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	4.2V/Cell
Current:	10A
Over Charge Detection Voltage:	3.8~4.4V(Can Adjust)
Over Charge Detection Delay Time:	0.5~2.5s
Over Charge Release Voltage:	3.8~4.4V(Can Adjust)
Over Discharge Detection Voltage:	1.9~3.1V(Can Adjust)
Over Discharge Detection Delay Time:	50~300ms
Over Discharge Release Voltage:	1.9~3.1V(Can Adjust)
Over Current Detection Voltage:	0.6V
Over Current Detection Current:	30~100A
Metal Coating:	Silver
Mode Of Production:	SMT
Customized:	Customized
Condition:	New
