Lianyungang Hongkang Quartz Products Co., Ltd. >> 8" Quartz Boat High Purity Quartz Boat for Solar and Semiconductor

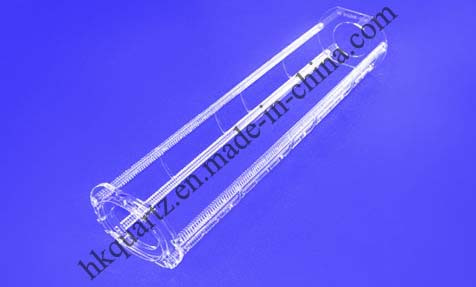

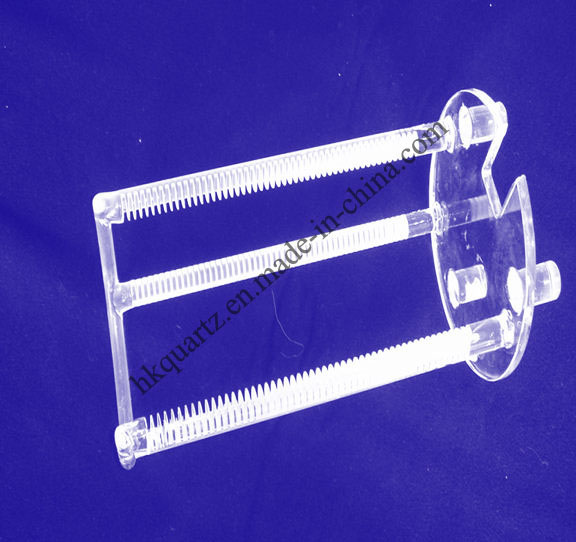

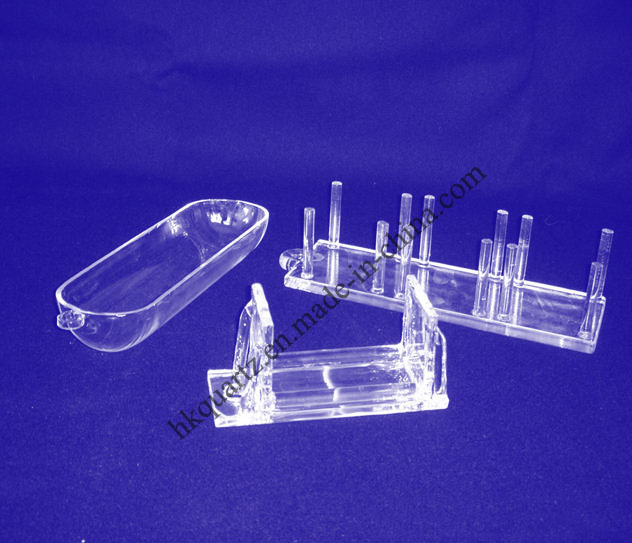

8" Quartz Boat High Purity Quartz Boat for Solar and Semiconductor

8
Price: US $ 12/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 2000/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
TYPEMATERIALUSINGSPEC
QUARTZ BOATGE 214SEMICONDUCTOR8 INCH
Packaging & Delivery

Packaging Detail: Outside wooden cases, inside carton case with foam.
Delivery Detail: Within 15days after confirm contract
Specifications
1, clear quartz tube
2 purity 99.99% min
3, Resistance 1100 degree, 1000 long time work
4, Low OH
5, Nice Appearances
Specification and Advantage of the quartz tube:

1. Quartz tube: OD3mm-450mm
2. Wall thickness: 1mm-10mm
3. Length: Max1240mm (or according to your special requirement)
4. Purity: 99.99% min
5. Shape: One end closed
5. Resistance 1100 degree, 1000 long time work
6. Low OH
7. Nice Appearances
8. Strong Corrosion-resistant
9. Good thermal stability
10. Good transparency for light>90%
11. Good electrical insulation
12. Special dimension and tolerances are available upone requests
13. Useful: Electric light source, semiconductor, optical, photovoltaic, chemical industries

· GOOD QUARTZ MATERIAL
· STRICT CONTROL OF THE PRODUCTION PROCESS
· GOOD QUALITY
· COMPETITIVE PRICES
· ON-TIME DELIVERIES
· GOOD AFTER-SALE SERVICE

We can also make tubes according to your requirement!

Dimensional Tolerance

Range of OD OD WT SidingOut of Round Bow\1220mm
≤ 6mm± 2.0% ± 10% 12%2.0%2.5mm
6.00-15.00mm± 1.25% ± 8% 10%1.5% 2.5mm
15.00-20.00mm± 1.25% ± 10% 15%1.5%2.5mm
20.00-25.00mm± 1.25% ± 10% 15%1.5%3.0mm
25.00-30.00mm± 1.35% ± 12% 15% 1.5% 3.0mm
30.00-80.00mm± 1.5% ± 14% 15%2.0%3.0mm
80.00-100.00mm± 1.0% ± 0.5mm 15%2.0%3.0mm
100.00-120.00± 1.5% ± 0.8mm 15%2.0%3.0mm
120.00-160.00± 1.8% ± 1.0mm 20%2.5%3.0mm
160.00-180.00± 3.0% ± 1.0mm 25%2.5%3.0mm
180.00-200.00± 4.0% ± 1.5mm 25%2.5%3.0mm
200.00-240.00± 4.0% ± 1.5mm 25%2.5%3.0mm
240.00-280.00± 6.0% ± 2.0mm 25%2.5%3.0mm
280.00 above± 8.0% ± 3.0mm 25%2.5%3.0mm

Chemical composition (ppm)

ALFeKNaLiCaMgCuMnCrBTi
5-120.19-1.50.71-1.60.12-1.760.38-0.760.17-1.230.05-0.50.050.05<0.05<0.1<1.0

Spectral transmission at 1.0mm thickness

Mm<22025528031535038590780
%89919393939393.293.4

Physical Properties

(g/CC)Density20 ° C kg. M-32.2
Degree of Hardness Moh's Scale5.5-5.6
Softening point(degree)1683
Annealing point1215
Defoamation Point1120
Prod Model: HKQT-036
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
11: 13
Pipe Material: Glass
Pressurized: Non-Pressure
Application: Air Conditioning System, Solar Thermal, Water Heater
Lianyungang Hong Kang quartz Products Co., Ltd. is located in "Chinese quartz Center ---- Donghai County, Jiangsu Province. Hong Kang Technology Company is a production and sales of high-tech materials industry. The company mainly involved in: A the quartz industry (quartz plate, quartz windows, quartz observation window, gold-plated quartz plate, etc. ), the semiconductor industry, fiber industry (quartz tube, quartz tail rod, hand-held stick products) and the solar industry. The products include all kinds of quartz products, quartz tube, thick-walled quartz tube, the back cover of quartz tube, quartz rod (the ingot furnace quasi long grain test quartz rod, fiber quartz rod, high purity quartz rod, fiber optic lighting quartz rod), quartz plate, quartz products, quartz parts, quartz boat, quartz block, quartz cleaning tank, quartz mound, quartz sight glass, quartz ring, quartz flange, quartz crucible, quartz beaker, quartz tube, quartz, quartz reagent bottle of quartz, quartz instruments.

The Hong Kang Shiying professional production of all kinds of quartz glass with, semiconductor the (quartz boat, tube cleaning tank), microelectronics (quartz-oxidation furnace, grinding mouth diffusion furnace, sintering furnace tube, the reaction tube, quartz rod groove boat, quartz journey, boat-shaped quartz boat, the semicircle boat, flat boat. Quartz groove cleaning flowers blue, the circular sieve bottom cleaning blue flowers, to cleaning with a quartz square cylinder, square quartz Cup. Quartz plastic bottles, Shiying Yuan bottle, quartz bubbling bottles. Quartz pure water heater, quartz hook), optoelectronics, solar energy (suction pen, waste container, the source bottle insulation mass diffusion tube, quartz boat, the PECVD pipe and furnace insulation tube), Chemicals (quartz beaker, flask, flask, spherical flask, flask, spherical cold Instrument, serpentine cold Instrument, distillation high water horizontal distiller, secondary distillation of high pure water, silicon tetrachloride fractionator Park The bottom evaporating dish, flat-bottomed evaporating dish, test tubes, watch glass, triangular funnel, separating funnel) quartz glass products, specializing in the production of various types of semiconductor quartz tooling, specializing in the production of semiconductor industry, according to customer requirements.

A, in accordance with the drawings of the customer, or in accordance with the requirements of customers design. B, with a number of semiconductor and solar photovoltaic companies have partnerships, quality and reputation can be assured. C, my company's products in addition to selling more than twenty provinces, municipalities and autonomous regions. We are currently the main supporting customers in Taiwan, 70% of quartz products exported to Taiwan, Japan, South Korea, the United Kingdom, the United States, Germany, France, Russia and other countries D, raw materials used in domestic high-purity, GE, Heraeus, high purity quartz. E, we have timely support services, to provide maintenance for customers to solve all your worries.

The increasing development of China's high-tech, microelectronics (solar photovoltaic), optical fiber manufacturing industry, Hong Kang Danying is willing to work with you together to seek common development!
