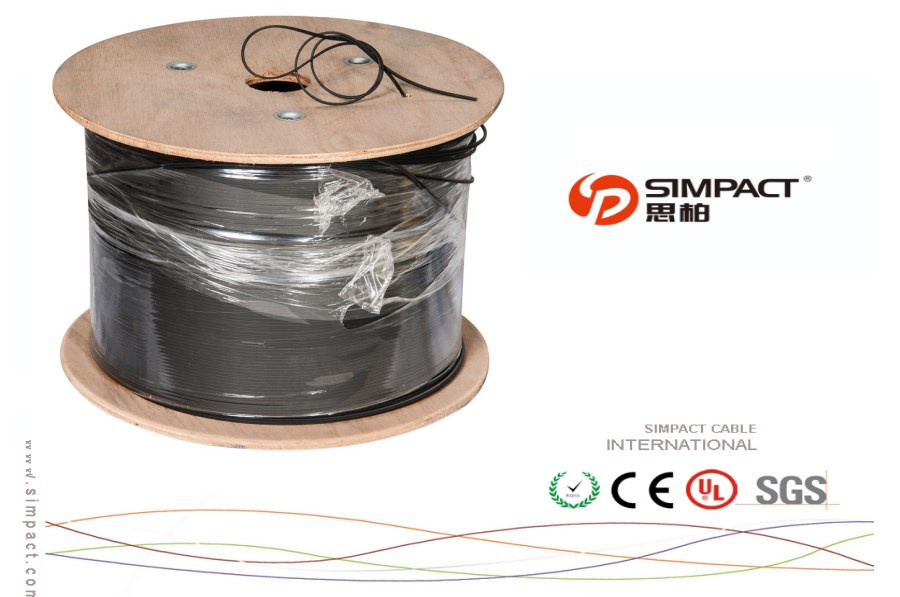

8-Shape of Self Support Communications Outdoors Optical Fiber Cable Gyfxtc8s
| Price: |
US $ 20-200/Roll |
| Min Order: |
10/Roll |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GYFXTC8S |
| Max. Allowable Crush(N/100m): |
1000/300 (Short Term/ Long Term) |
| Attenuation(dB/Km): |
≤0.36dB/Km@1310nm, ≤0.22dB/Km@1550nm |
| Minimum Bend Radius (mm): |
During Installation 20d, During Service 10d |
| Operating Temperature (ºC ): |
-40~+60 |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
SC-SC |
| Certification: |
ISO9001 |
| Sheath Material: |
PE |
Product Description
| Jacket printing | Application |
| Per request | Used for core net, city local net and OAN and applied to aerial. |
| Characteristic: |
| 1. The messenger wire together with OFC as a whole part. OFC installation can be completed at one time. Ease construction and less affected by environment, reducing installagion cost. |
| 2. It adopts stranded galvanize steel wire with high tensile strength, which can meet the requirement of existing telelphone pole. |
| 3. Loose tube filled with gel and wrapped longitudinal water blocking tap, ensuring good moisture protection and water blocking. |
| 4. It makes the whole structure compact with internal melting gluey drop coated on the loose tube surface. Precision control for over length ensures OFC with excellent performances of mechanical tensile strain and environment temperature. |
| 5. It could ensure much better moisture resistance and improve side press resistance perform with corrugated longitudinal steel plastic tape wrapping cable core. |
| Technical Parameters: |
| Items | Unit | Index |
| Core No. | | 2~12 | 14~24 |
| Diameter/Height | mm | 8~15 | 9.1~16.2 |
| Unit Weight | Kg/Km | 135 | 160 |
| Max. Allowable Tension | N | 3500/1000 (Short Term/ Long Term) |
| Max. Allowable Crush | N/100m | 1000/300 (Short Term/ Long Term) |
| Attenuation | dB/Km | ≤0.36dB/Km@1310nm, ≤0.22dB/Km@1550nm |
| Minimum Bend Radius | mm | During Installation 20D, During Service 10D |
| Operating Temperature | ºC | -40~+60 |
| | | | | |
| Add: Overseas Chinese Sci-Tech Industrial Park, Huashan Town, Huadu District, Guangzhou, China. Web: www.simpact.com.cn |
| Contact: Joan Lau Mobile +86-13430325469 Tel: +86-020-37700866 |
