| Prod Model: |
SC300-SC10KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
300W to 10kw |
| Rated DC Voltage: |
12/24/48/96V |
| Output Voltage: |
110V/120/220/230V |
| Solar System Type: |
off Grid System |
| Controller Capacity: |
10A to 100A |
| Control Method: |
PWM/MPPT |
| Phase: |
Single Phase |
| Type: |
Standby |
| Protection: |
Short Circuit |
| Application: |
Solar System |
| Brand: |
Tanfon |
Product Description
8000W Off grid solar inverter solar pv inverter for big house
Tanfon Advantages: Installtion service and technical support
Foshan tanfon energy technology Co., Ltdcan supply
Solar panel kit, solar panel system complete set, solar power systems, solar panel system all equipment,
Multifaceted Nature of Solar Power, power system manufacturer, solar panel system for my home(500W, 1kw, 2kw, 3kw, 4kw, 5kw, 6kw, 8kw, 10kw, 15kw, 20kw 30kw )
Tanfon Hybrid Inverter Features:1.Combine with solar power controller and inverter hybrid function.
2.Completely controlled by CPU.output have 5V and 12V USB,can take LED light and mobile phone
3.Inverter use copper transformer, pure sine wave output.
4..LCD displays, clearly to know the status.
5.have bypass function and AC charger (UPS function)
6.Perfect protection. Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection ,etc.
7.city grid power and solar power complementary. When there are not sunshine and battery power used off ,inverter will charge from city power automatically to take the loads and charge battery ,keep the solar power system working 24 hours ,have switch "city power charge" and "solar power charge",you can change any time FAQQ: Can the inverter switch automatically to national grid to protect batteries.A: Yes. It can also connect to third generator like diesel generator. Please tell our sales before production. Q:what is TANFON solar system after sales service?A: during the warranty ,Solar panel--ship free new one ;battery-ship the new one ,Inverter/controller---ship free PCB by DHL or Fedex. Q:how about TANFON solar products quality?A: we promise our quality materials ,and after sales service ,also have many project in all over the world ,contact our sales get the project picture Q:what is your trade AsusuranceA:100% product quality protection 100% product on time shipment protection 100% payment protection for your covered amount If you have more question, welcome to contact us freely, Choose TANFON, Choose Satisfaction!
Technical data:| Model | SC1500 | SC2000 | SC3000 | SC5000 |
| Rated power(W) | 1500W | 2000W | 3000W | 5000W |
| Rated DC voltage(V) | 24Vor48V | 48V or 96V |
Line input | Input voltage(V) | 145-280V, 90-127V |
| Charge current(A) | 7-25A |
| Inverter output | Output voltage(V) | 220VAC±5% &5V,12V DC |
| Output frequency | 50Hz/60Hz±1% |
| Wave form | Pure Sine Wave, THD<4%(Full Load) |
| Solar input | Maximum voltage(V) | 42V or 88V or 176V |
| Rated power(Wp) | 1500 | 2000 | 3000 | 5000 |
| Solar Controller | Charge current(A) | 50/30 | 40/30 | 60/40 | 80/60 |
| MPPT range(V) | 24v(20-34)48v(40-68),96v(80-136) |
| Charging efficiency | 90%-95%, Peak on 97% |
Other
| Over charge
protective voltage of battery(V) | 24V(28.6),48V(57.2),96V(114) |
| Over charge recover-voltage of battery(V) | 24V(27.4),48V(54.8),96V(109.6) |
Voltage drop between solar
module and battery(V) | ≤0.5V |
Voltage drop between loads
and battery(V) | ≤0.25V |
| Start speed of cooling fan | Have |
| Environment Humidity | 0-90% Maximum,non-condensable |
| Protective Functions | Protection against anti-charge at night;Battery over charge/over discharge protection; Joint-reversed of solar modules |
| Control method | MPPT |
| Size :D*W*H(mm) | 470*230*480 | 470*230*560 |
| N.W&G.W(kg) | 26/32 | 32/38 | 40/49 | 44/52 |

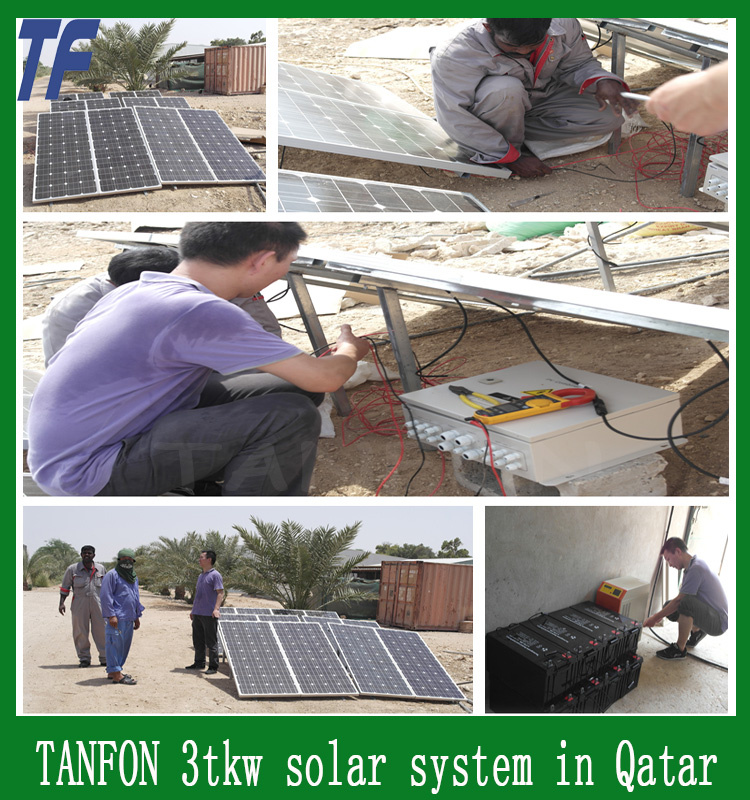

Share some project picture with you:
