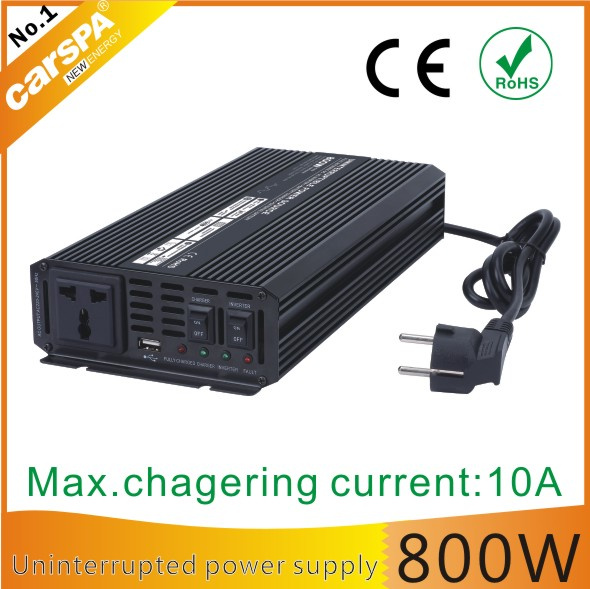

800W Modified sine wave inverter with chargerFeatures:1)Input protections: Polarity reverse / Over and under voltage / Low battery Alarm and shut down
2)Output protections: Short circuit / Overload / Over temperature
3)charge power/public power and inverter/protection, intelligent LED indication
4)Input and output fully isolation
5)Low power consumption(standby)
6)inverter and public power intelligently switch, load can properly work without switch
7)LVD meet EN60950 and E8 mark
8)EMC meet EN61000-6-1-3, EN55022
Auto re-start function:When the inverter shuts off once it being in protection, it is not necessary to press the switch (on/off), just moving the high loads, the inverter can restart automatically. So there is no need to place the spare fuse.
This product is built with UPS auto conversion: When the main power is shut off, the unit can be changed automatically to supply the power by inverter, but after the main power resume, the inverter stop work automatically, and get into the state chargin for battery
Specifications:Inverter Part
1) Max. Continuous output power: 800W
2) Surge capability peak output power: 1600W
3) DC input static current (no load): ≤ 1.0AMP
4) AC output wave form: Modified Sine wave
5) Normal input voltage range: 11-15V / 21~30V
6) High voltage cut off level: >15V / 30V
7) Low voltage alarm: 10.6V+ -0.3V(DC12V) / 20.5V+ -0.5V(DC24V)
8) Low voltage cut off level: 9.5V+ -0.5V(DC12V) / 19.5V+ -0.5V(DC24V)
9) Output AC voltage: AC 115V+ -5% RMS / AC 230V + -5% RMS
10) Output frequency level: 60Hz+ -1Hz / 50Hz
11) Overload power range: 800W, 5-30%
12) Hi-pot test: PRI/sec, 1500V/AC 5mA/60s
13) Temperature protection: <65c
14) Full load max. Optimum efficiency: ≥ 90%
15) AC output short circuit protection: System shut down (no damage)
16) Fan run: Working with load
17) Fault warning: Alarm beep
18) LED indicator:
A) Normal: Green
B) Fault: Red green
19) Fuse (spade type): 40Ax 3PCS
20) Dimensions (L x W x H): 275X 176 X 77mm
21) Environmental condition:
A) Operating temperature: -5~45c
B) Operating relative humidity: 10-90% RH
C) Storage temperature: -10~50c
D) Storage relative humidity: 10-95% RH
Charger Part:
Charger Current: 8A (constant current)
Input voltage range: AC115V / AC230V + -10%
Input charger power Fuse: 10A
LED indicator:
A) green: Public power /charge
B) Red: Fully charge
Charge ON/OFF switch
Through unremitting efforts over manny years, the scale has leaping development. In 2010, we moved to our new building, and we changed our company name to "Zhejiang Carspa New Energy Co., Ltd" (former name is Wenzhou Carspa Electronics Technology Co., Ltd) in 2011.
We have research center in Shenzhen (Shenzhen Sunpulse Industrial Co., Ltd), and in 2012, we establish our own import & export company ( Wenzhou Sunpulse Import & Export Co., Ltd).
We are a high and new technology manufacturer and exporter in China which is mainly specialized in researching, developing, manufacturing and marketing of power inverter which including mini car inverter, smart inverter, modified sine wave power inverter, pure sine wave power inverter, battery charger, pure sine wave inverter with charger, modified sine wave inverter with charger, domestic and industrial use UPS, DC voltage booster, negative booster, stabilizer, air purifier & ozone sterilizer and other car electrical products, solar modules, PV on grid inverter, microinverter, High-tech off grid inverter, solar charge controller, solar and wind system and other solar related products. Also, we deal with some other low voltage electric appliances and power supply products.
Established in 2004, Carspa Company located in wenzhou, the largest manufacturing base of low voltage electric equipment in China, and has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Carspa products have exported to many regions and many countries. Along with several leading experts, our company has developed a sound operation system consists of manufacturing, studying, researching, marketing, and servicing.
Our company has obtained ISO9001 quality certificate, CE-EMC/LVD, RoHS, E-MARK, SONCAP etc. Certification. And we have won numerous honors at home and abroad for our good quality, competitive prices and considerate services. Our motto is '' Harmony, Sincerity, Creativity and Win-Win ". We have been constantly pursuing to promote the development of the technology of the renewable energy, we try to make great efforts for saving global energy resources, making our future brighter.
We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied with in 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication. We believe that with our best quality products and your marketing channel, we are certain to establish a lasting mutual benefit cooperation relationship with you.
