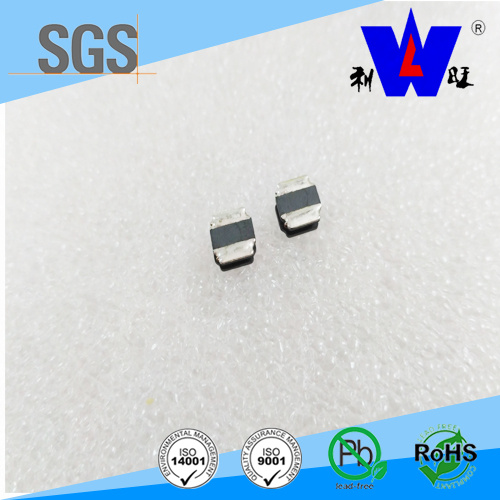

8040 SMT Power Inductors 22uh

Name: 8040 SMT Power Inductors 22uh
Brand: all-electronics-online.com
SKU: 811944375
Availability: InStock
Rating: 4.3 (148 reviews)

Price:	US $ 0.01-1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	8040
Product Name:	SMD Power Inductor with ISO9001 (Cdrh 4b18/4b28/5b
Quality Certification:	ISO9001: 2008
Environmental Certification:	ISO14000
Tolerance:	J,K,L,M
Application:	Vtr
Type:	Fixed Inductor
Structure:	Core
Brand:	Liwang

Product Description

Features of SMD Power Inductor with ISO9001 (CDRH 4b18/4b28/5b18/5b28):
Various high power inductors are superior to be high saturation for surface mounting.
Application of SMD Power Inductor with ISO9001 (CDRH 4b18/4b28/5b18/5b28):
1. VTR
2. OA equipment
3. Digital camera
4. LCD TV set
5. Notebook PC
6. Partable communication equipments
7. DC/DC converters

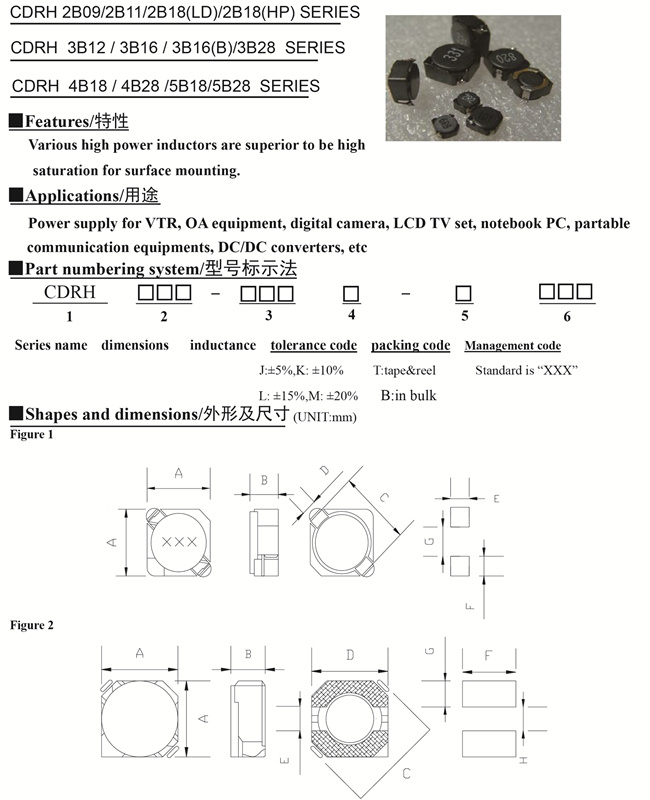

Dimensions of SMD Power Inductor with ISO9001 (CDRH 4b18/4b28/5b18/5b28):

type	Amax	Bmax	C	D	E	F	G	H	Fir gre
CDH4B18	5.0	2.0	6.9	4.5	1.5	5.3	1.9	1.5	2
CDH4B28	5.0	3.0	6.9	4.5	1.5	5.3	1.9	1.5	2
CDH5B18	6.0	2.0	8.2	5.5	2.0	6.3	2.15	2.0	2
CDH5B28	6.0	3.0	8.2	5.5	2.0	6.3	2.15	2.0	2

Part number	inductance	tolerance	Rdc(ohm)Max	Rated Current Amp
4B18/4B28/5B18/5B28	1	M	28.6/25.7/17.7/15.6m	1.80/2.7/3.0/3.5

For special specifications please contact with us.

Advantage of our company:
1.Fastest lead time
2.Low cost and high reliability
3.Low minimum order
4.Standard Boxes,Special carton was required!
5.on-time delivery
6.quick response to the needs of our customers
7.professional and experienced management team

Selling point:
1)prompt delivery
2)variety of packing: Bulk and carton
3)stable performance, extensive resistance
4)factory direct price
5)none forbidden
6)all materials&machines importer from holand

Its mechanical strength and thermal stability is good enough to bear the temperature changes from the reflow soldering and the outside force. It is mini size, high energy-stored, low resistance makes itself an ideal inductor when used in the PDA, DC/DC switches. Be suitable to work in the big current condition.

Don't hesitate to contact us if you have any interest in our products,welcome to provide us your specification,we will submit the best quotation shortly.

It's our pleasure to be on service of you.Thanks.

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
