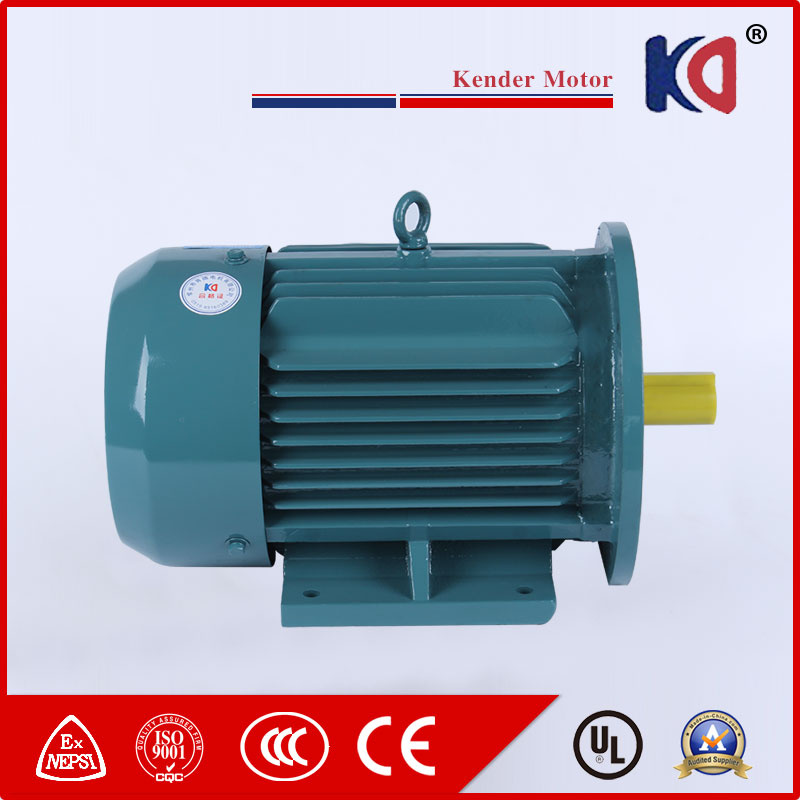

80m1-2 380V 1HP AC General Electric (Electrical) Motor
| Price: |
US $ 60-65/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Voltage: 220V/380V/415V/660V
Type: Three-Phase Asynchronous Motor
Output Power: 0.37KW-90KW
Certification: ISO9001 CE CCC Ex
Pole: 2 4 6 8P
Speed:3000 1500 980(r/min)
Rated Frequency: 50HZ/60HZ
Warranty: 1Years | Specification: |
| Brand | KD |
| Place Of Origin: | Changzhou |
| Type: | YX3 Y2 |
| HS Code: | 8501520000 |
| Quality: | Well and high quality control. |
| MOQ | Offer sample testing for distributor; more quantity, better price. |
| Packaging Detail: | Wooden case, Customized Packing is acceptable. |
| Inspected | All of our products are gel-coated and highly inspected before shipping. |
| Payment Terms: | T/T accept :FOB generally 30% deposit ,
the balance need to accepted before shipment ;
CIF: The balance can be paid when you see copy of the Bill of Lading;
Others W/U,D/P, Paypal acceptable. |
| Delivery Time: | 7~10days for samples, 25~30days for order after we get the deposit. |
Advantage of 80m1-2 380V 1HP AC General Electric (Electrical) Motor
1.Easy to install
2.Require less maintenance
3.Robust in structure
4.High efficiency and torque
5.Energy saving
6.Little vibration
7.Low noise 8.safe and reliable operationApplication of 80m1-2 380V 1HP AC General Electric (Electrical) Motor 1,Pack-aging machinery
2,Woodworker machinery
3,Food processing machinery
4,Chemical engineering machinery
5,Textile machinery
6.Construction machinery
Technical Data of 80m1-2 380V 1HP AC General Electric (Electrical) MotorModel
Type | Rated Power | Current | Speed | Frequency | Efficiency | Stall /Rated
current | Stall/Rated
torque | Max
/Rated
torque | Minimum/
Rated
Torque | Noise |
| | KW | HP | In(A) | (r/min) | HZ | (%) | Lst/IN | Tst/TN | | | dB(A) |
| YX3-80M1-2 | 0.75 | 1 | 1.70 | 2800 | 80.7 | 0.83 | 6.8 | 2.3 | 2.3 | 1.5 | 64 |
| YX3-80M2-2 | 1.1 | 1.5 | 2.43 | 2800 | 82.7 | 0.83 | 7.3 | 2.3 | 2.3 | 1.5 | 64 |
| YX3-90S-2 | 1.5 | 2 | 3.22 | 2825 | 84.2 | 0.84 | 7.6 | 2.3 | 2.3 | 1.5 | 69 |
| YX3-90L-2 | 2.2 | 3 | 4.58 | 2825 | 85.9 | 0.85 | 7.8 | 2.3 | 2.3 | 1.4 | 69 |
| YX3-100L-2 | 3.0 | 4 | 6.02 | 2840 | 87.1 | 0.87 | 8.1 | 2.3 | 2.3 | 1.4 | 76 |
| YX3-80M1-4 | 0.55 | 0.75 | 1.38 | 1390 | 80.7 | 0.75 | 6.3 | 2.3 | 2.3 | 1.7 | 61 |
| YX3-80M2-4 | 0.75 | 1 | 1.84 | 1390 | 82.5 | 0.75 | 6.5 | 2.3 | 2.3 | 1.6 | 61 |
| YX3-90S-4 | 1.1 | 1.5 | 2.65 | 1390 | 84.1 | 0.75 | 6.6 | 2.3 | 2.3 | 1.6 | 64 |
| YX3-90L-4 | 1.5 | 2 | 3.56 | 1390 | 85.3 | 0.75 | 6.9 | 2.3 | 2.3 | 1.6 | 64 |
| YX3-100L1-4 | 2.2 | 3 | 4.76 | 1410 | 86.7 | 0.81 | 7.5 | 2.3 | 2.3 | 1.5 | 69 |
| YX3-90S-6 | 0.75 | 1 | 2.01 | 910 | 78.9 | 0.72 | 5.8 | 2.1 | 2.1 | 1.5 | 64 |
| YXS-90L-6 | 1.1 | 1.5 | 2.83 | 910 | 81.0 | 0.73 | 5.9 | 2.1 | 2.1 | 1.3 | 64 |
| YX3-100L-6 | 1.5 | 2 | 3.73 | 920 | 82.5 | 0.74 | 6.0 | 2.1 | 2.1 | 1.3 | 68 |
| YX3-112M-6 | 2.2 | 3 | 5.36 | 935 | 84.3 | 0.74 | 6.0 | 2.1 | 2.1 | 1.3 | 72 |
| YX3-132S-6 | 3.0 | 4 | 7.20 | 960 | 85.6 | 0.74 | 6.2 | 2.0 | 2.1 | 1.3 | 76 |
FAQ :Q:What's the mounting size of your motor?
A:Foot mount , face mount, Flange mount ,foot cum face mount,face cum flange mount and design as customer required.
Q: Do you offer OEM service?
A: Yes.and we provide the best quality service to our customers.
Q: What is your payment term?
A: TT, western union ,Paypal. L/C,Cash.
Q: What is your lead time?
A:About 10-45 days after receiving deposit or original L/C.the balance need to accepted before shipment.
Q: What certificate do you have?
A: We have CE, ISO9001,CCC ,EX and so on.
Q:How long the warranty?
A:one year ,but except man-made destroyed.
Why you choose us:Quality Assured
These 3 phase motors adhere to the latest European mechanical and electrical standards to ensure safe operation for the life of the product. Our range of motors can rotate at speeds of up to 3000 RPM and we offer a variety of options for mounting. Water and dust tight cooling fans mean the operating conditions can be preserved inside the unit in most working environments.
3 Phase Motors - Options
Additionally we are able to offer custom modifications to three phase motors which help tailor the equipment you choose to your specific needs. For a full list of these features, select a motor from this section. For any further information, feel free to contact us.
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing.Our services1. Free maintenance within 12 months guarantee.
2. Professional research and development team.
3. Technical support for installation.
4. Strict quality control system.
5. Customize production. packed in carton box accroding to the wheel size,different wheel size needs different plywood case.
Name Card:Jiangsu Kender Motor CO., LTD
Contact Person:Lynn Zhu Tel:86-519-69655640Fax:86-519-85160023Address:No.19 Wenya Road Qianhuang Town Wujin District Changzhou City,Jiangsu Province,China
| Prod Model: |
Y2-80M1-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Y2-80m1-2 |
| Power In Kw: |
0.75kw |
| Power In HP: |
1HP |
| Current: |
1.7A |
| Voltage: |
380V |
| Efficiency: |
83% |
| Stall /Rated Torque: |
2.3tst/Tn |
| Noise: |
64dB |
| Frequency: |
50Hz |
| Number Of Stator: |
Three-Phase |
| Function: |
Control |
| Brand: |
Kd |
Kender Main Product YB3 series explosion proof motor, YBX3 series energy-efficient explosion proof motor, Y2, YX3, YE3 series normal motor, YEJ series Electromagnetic braking motor, YVF2 series variable-frequency and variable-speed motor, cycloidal pin gear speed reducer Special long axis motor. At the same time for the customer customization of all kinds of different voltage and non-standard motor.
The company has professional testing instruments(The stator test system, Fully automatic intelligent factory test term) and sophisticated technology and equipment(vertical CNC lathe, CNC grinding machine, disposable porous drill and so on). Our products are manufactured and control in strict accordance with the IS09001 quality system. And successively obtained CCC certification, CE certification and explosion-proof motor industrial products production license.
The company has been adhering to the "total quality control, keep improving, perfect quality, customer satisfaction" concept of the camp, Continue to strengthen management innovation, overall raise modern quality management level, Insist on brand strategy, pay attention to product quality, Based on the market at home and abroad with Sophisticated technology and equipment perfect detection means, good after-sales service strict and efficient management system.
