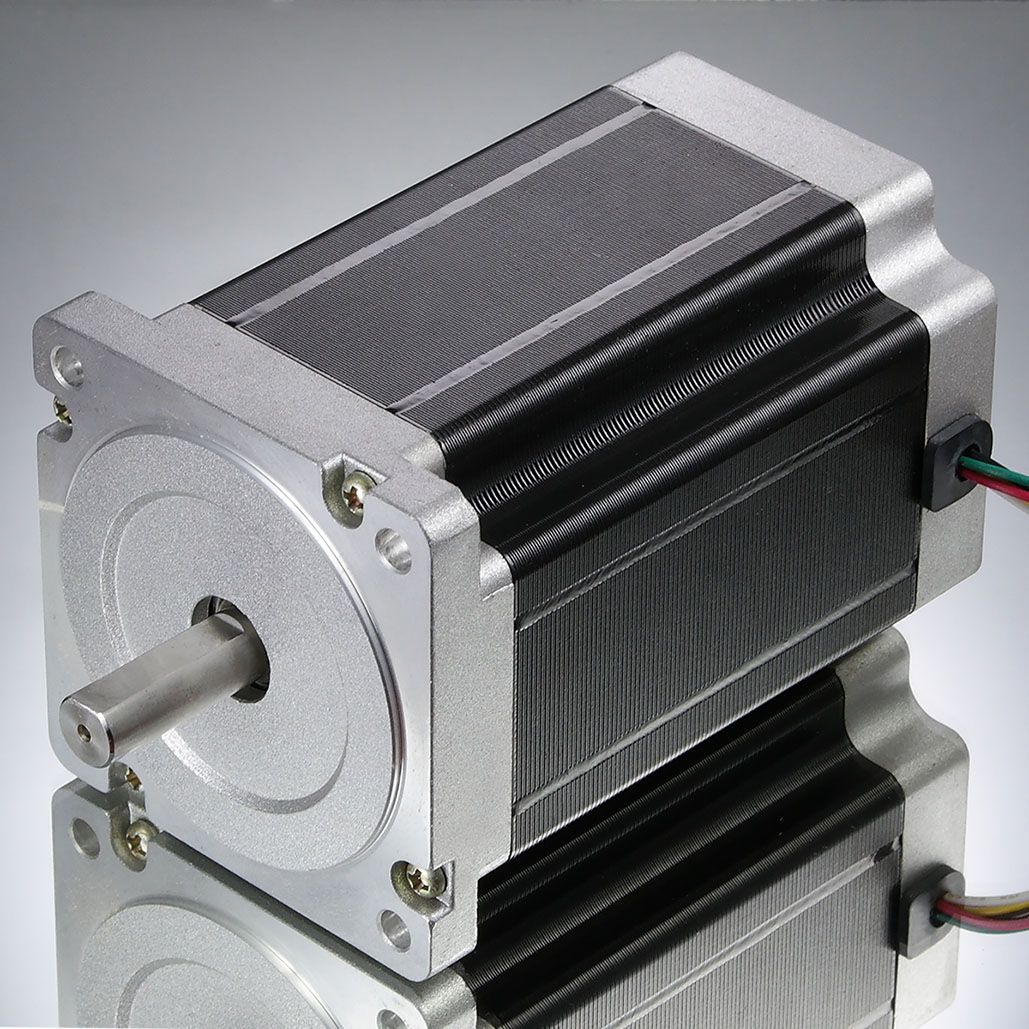

86 mm High Torque Hybrid Stepper Electrical Motor for CNC
Features:High torque
High accuracy

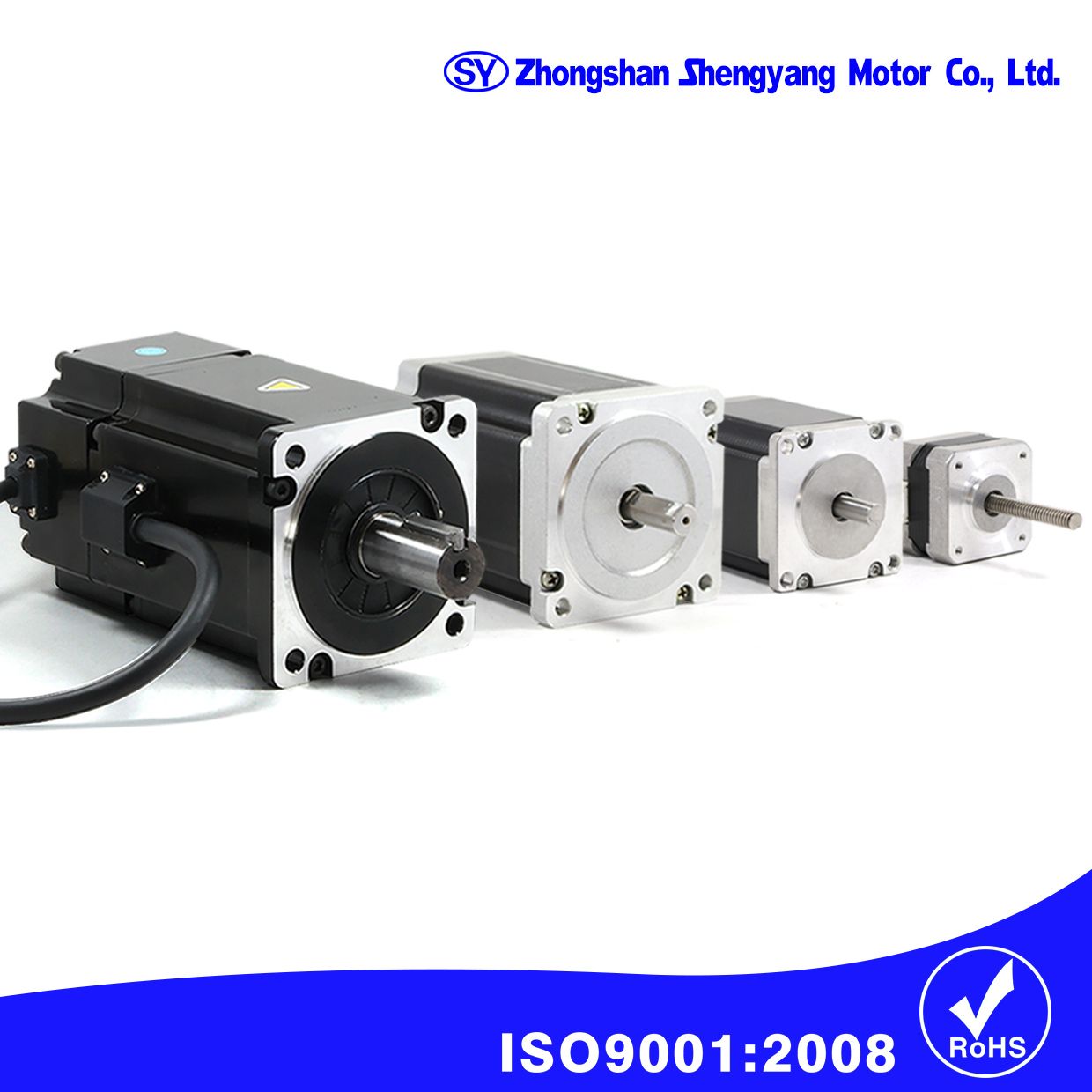

Smooth movement Stepper motors, AC servo motors and brushless dc motors are avaiable to customized for the world, NEMA 11, 14, 16, 17, 23, 24, 34 stepper motor, 50W, 100W, 200W, 400W, 500W, 750W, 1000W, 1200W AC servo motor, and brushless dc motor are all included.
The derived products are widely used in ATM machines, digital scanners, stylus printers, plotters, slot machines, CD-ROM drivers, stage lighting, camera lenses, CNC machines, medical machines, 3D printers, cleaning machines and quadcopter for industry and our life.
All the derived products of us can be customized for your needs.
Product Description 1. Speficications:
Motor Model: 86BYGH 204-C-30
Step Angle: 1.8°± 5% full step, no load
Motor Length: 100 mm (3.94 in)
Holding Torque: 4900 mNm (694 oz-in)
Rated Current: 5.2 A DC
Resistance per Phase: 0.43 ohm
Inductance per Phase: 2.7 mH
Shaft Length: 30 mm (1.18 in)
Shaft: D-Cut Shaft
Connectors: Lead Wires
Ambient Temperature: -24 ºC - +60 ºC
Relative humidity: 90% MAX
Resistance Accuracy: ± 10%
Insulation Resistance: Larger than 100mΩ 500V DC
Dielectric Strength: 600V AC for 1S, leakage current less than 1mA.
2. Note:
Performance and parameters are customized, just simply send your motor diagram or samples to us, we will provide the competitive price for your reference.
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2015 quality system, all of raw materials comply with RoHS,CE contact us and talk details.
Contacts: Ms Rita Law
Mobile: (+86) 13631101993
www.shengyangmotor.com
Series
&
Length | Model
Number | Holding
Torque | Rated
Current | Resistance
per Phase | Inductance
per Phase |
| mNm oz-in | A | ohm | Mh |
86BYGH0
68mm
(2.64in) | 86BGYH002 | 2500 354 | 3.8 | 0.8 | 6 |
86BYGH1
77mm
(3.03in) | 86BYGH102 | 411.6 58.28 | 5 | 0.65 | 4.5 |
86BYGH2
100mm
3.94in | 86BYGH204 | 4900 694 | 5.2 | 0.43 | 2.7 |
Established in 2011, Shengyang Motor Co., Ltd is a professional manufacturer which produces, researches, develops, and sells various of stepping motors. It is well located in Zhongshan, Guangdong--in the Pearl River Delta where is very beautiful and wealthy with convenient communication.
Shengyang Motor constantly focuses on technological specification, unswervingly insists in providing high-quality products and best service and keeps firmly the service concept: To satisfy our clients is our eternal tenet. Shengyang Motor Co., Ltd has the advanced production facility, production line, quality controlled system and testing equipment for stepping motor.
Especially in producing, developing and selling precise motors, Shengyang Motor has developed a wide range of products which are widely used in laser light, stage lighting, printer, currency detector, industry control, monitors and so on. Being a supplier of professional precise stepping motor facing the nation and viewing the world with annual capacity more than 4, 000, 000 sets, Shengyang Motor enhances the quality of products constantly by absorbing the experience of motor manufacturer both at home and abroad, and introducing the latest technology and equipment to ensure the constant development of the company. Apart from providing standard products (following the national standard or international standard), we can also customize products according to the requirements of customers.
With high-quality products and supports from a large number of suppliers and customers, Shengyang Motor won great credit in stepping industry and is becoming a famous brand in the field.
Shengyang Motor insists on consolidating its good reputation by stabilizing quality and reacting quickly to meet promises that we make to all customers.
As a young, energetic, practice and creative team, Shengyang Motor emphasizes the service idea of thinking all customers' profit firstly and highlights making the best cost performance programme. Shengyang Motor unswervingly insists the principle of "humanist, introducing and optimizing technology, stabling quality, moving customer, base on dometic and following the world" to serve customers all over the world.
