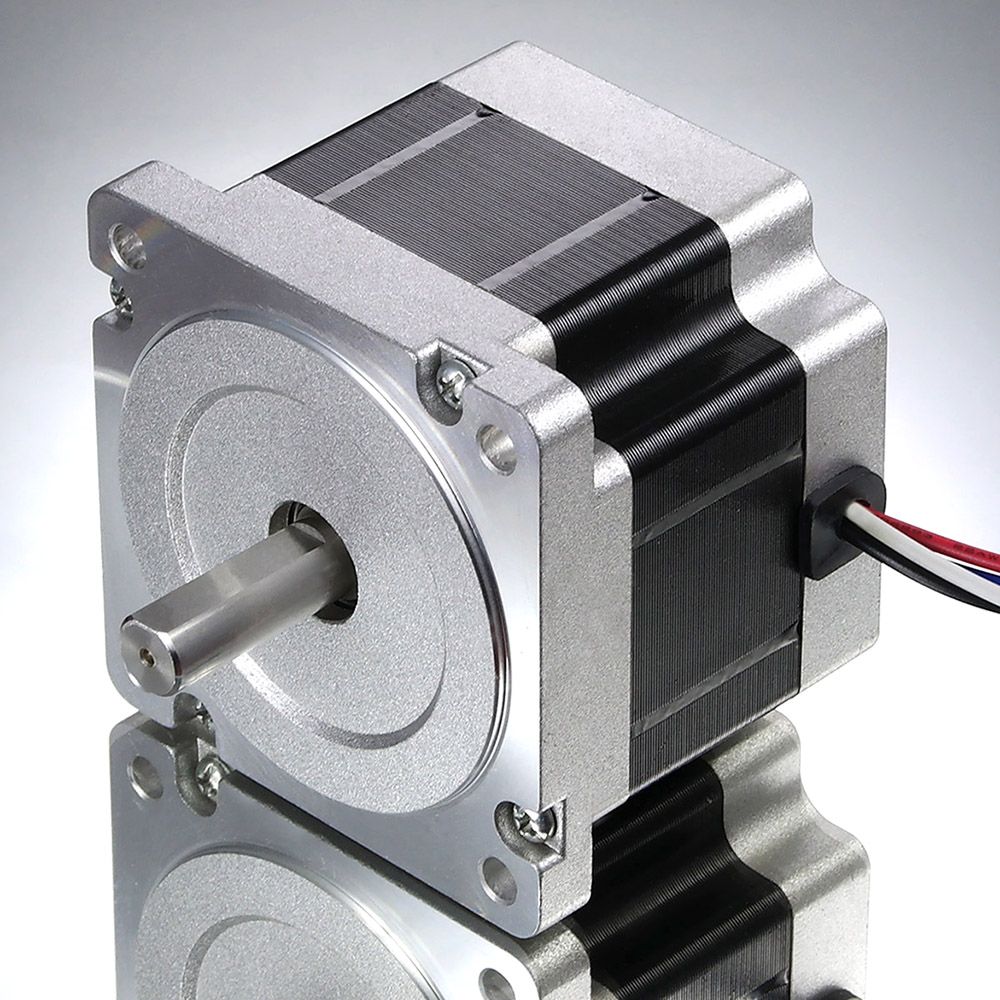

86MM High Accuracy Stepper Motor for CNC, 3D Printer
Features:
High torque
High accuracy
Smooth movement
Stepper motors, AC servo motors and brushless dc motors are avaiable to customized for the world, NEMA 11, 14, 16, 17, 23, 24, 34 stepper motor, 50W, 100W, 200W, 400W, 500W, 750W, 1000W, 1200W AC servo motor, and brushless dc motor are all included.
The derived products are widely used in ATM machines, digital scanners, stylus printers, plotters, slot machines, CD-ROM drivers, stage lighting, camera lenses, CNC machines, medical machines, 3D printers, cleaning machines and quadcopter for industry and our life.
All the derived products of us can be customized as your required.
Product description
1. Specifications:
Motor Model: 86BYGH101-C-30
Resistance per Phase: 0.8ohm
Inductance per Phase: 4.3mH
Step Angle: 1.8°± 5% full step, no load
Ambient Temperature: -24ºC- +60ºC
Relative humidity: 90% MAX
Resistance Accuracy: ± 10%
Insulation Resistance: Larger than 100mΩ 500V DC
Dielectric Strength: 600V AC for 1S, leakage current less than 1mA;
2. Note:
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the best price will be sent to you soon for your reference.
Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list.
3. Payment term:
T/T in advanced, 30% deposit, 70% balance before shipment or LC at sight.
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, all of raw materials comply with RoHS, contact us and talk details.
Contacts: Ms Land
/Mobile (+86) 13425768350
Website: http://shengyangmotor.en.made-in-china.com
Series
&
Length | Model
Number | Holding
Torque | Rated
Current | Resistance
per Phase | Inductance
per Phase |
| mNm oz-in | A | ohm | Mh |
86BYGH0
68mm
(2.64in) | 86BGYH002 | 2500 354 | 3.8 | 0.8 | 6 |
86BYGH1
77mm
(3.03in) | 86BYGH102 | 411.6 58.28 | 5 | 0.65 | 4.5 |
86BYGH2
100mm
3.94in | 86BYGH204 | 4900 694 | 5.2 | 0.43 | 2.7 |
