86X110mm White Contactor for Leakage Protecting with 32/40A

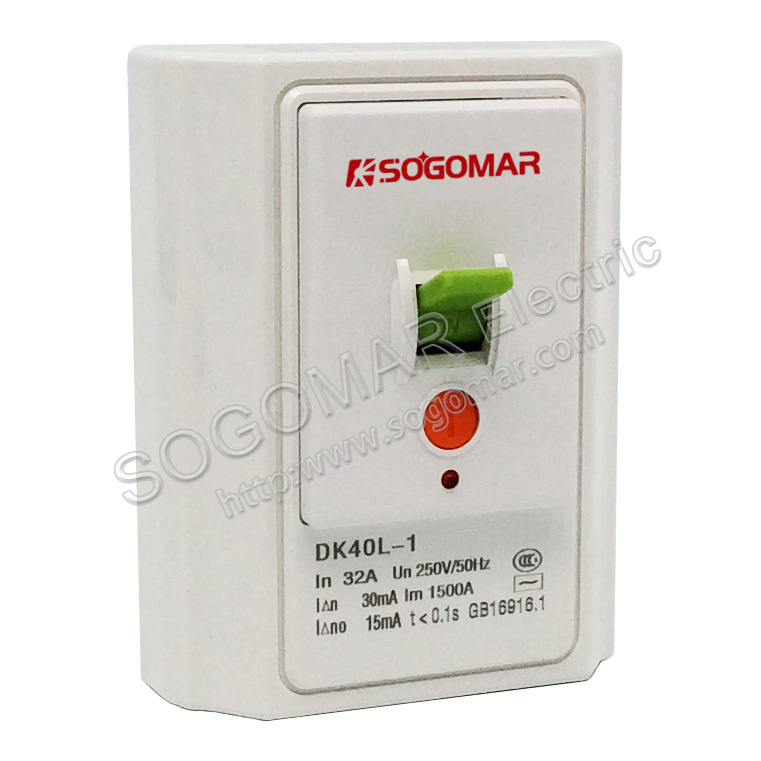

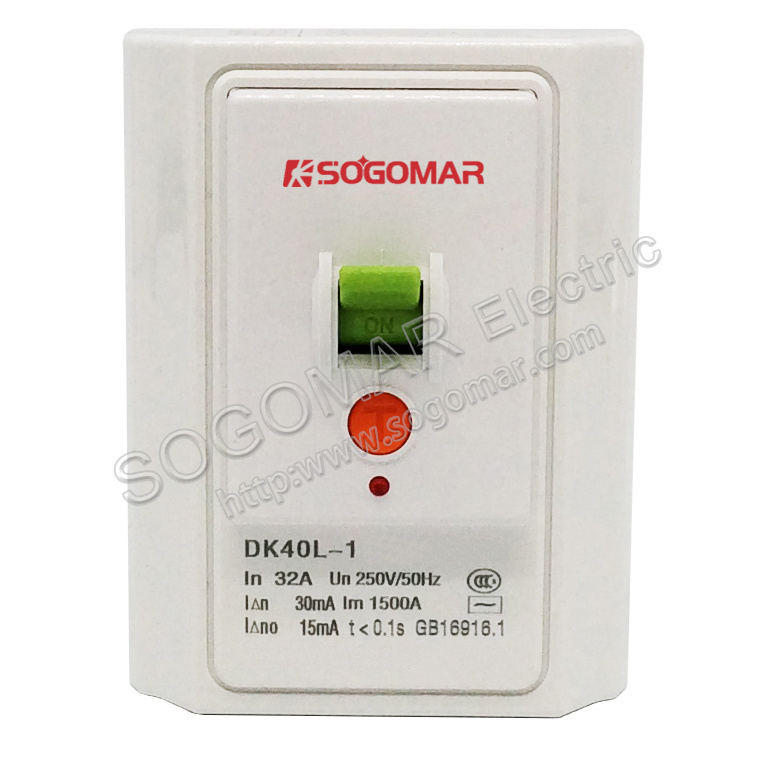

Name: 86X110mm White Contactor for Leakage Protecting with 32/40A
Brand: all-electronics-online.com
SKU: 833831855
Availability: InStock
Rating: 4.8 (116 reviews)

Price:	US $ 5.85-6.23/Piece
Min Order:	10/Piece
Pay Type:	T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DK50L-1
Color:	White and Silver
Shell Material:	Flame Retardant PC Plastic
Rated Current:	32A/40A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	CE

Product Description

Quick Details

Rated Current (Im:A)	32
Rated Voltage (Un:V)	230
Rated connecting and breaking capacity (Im:A)	500
Action time (s)	0.1
Rated residual action current (I△n:mA)	30
Rated residual non action current (I△n:mA)	15

APPLICATION--Leakage Protection Switch/ Circuit Breaker
This product is suitable for air conditioner, water heaters, refrigerators, washing machines, electric pumps, electric lawn mower and other electrical leakage protection.

Pole	Refrigerating Capacity	Rated Current	Reference Power	Air Conditioning Type	Recommended Type
1P	2324W	16A	3520W	Hanging type	16A Big Plug
1.5P	3200-3600W	16A	3520W	Hanging type	16A Big Plug
2P	4500-5500W	32A	7040W	Cabinet type	32A Switch
3P	6000-7500W	32A	7040W	Cabinet type	32A Switch
5P	12000W	40A	8800W	Cabinet type	40A Switch

The product is used for installation in the single-phase 230 v / 50 hz power lines, over current, over voltage and short circuit protection function, which completely replace the ordinary 16A air conditioner socket. It is suitable for air conditioning, electric water heater, solar water heater, vending machine, water dispenser, refrigerator, washing machine and other electric equipment. It is especially suitable for the installation of the power plug of the air conditioner. It has the function of electricity leakage, electric shock protection and disconnecting the power in time. At the same time, it can prevent the electrical fire danger caused by the aging of the equipment insulation and the ground fault caused by the damage.

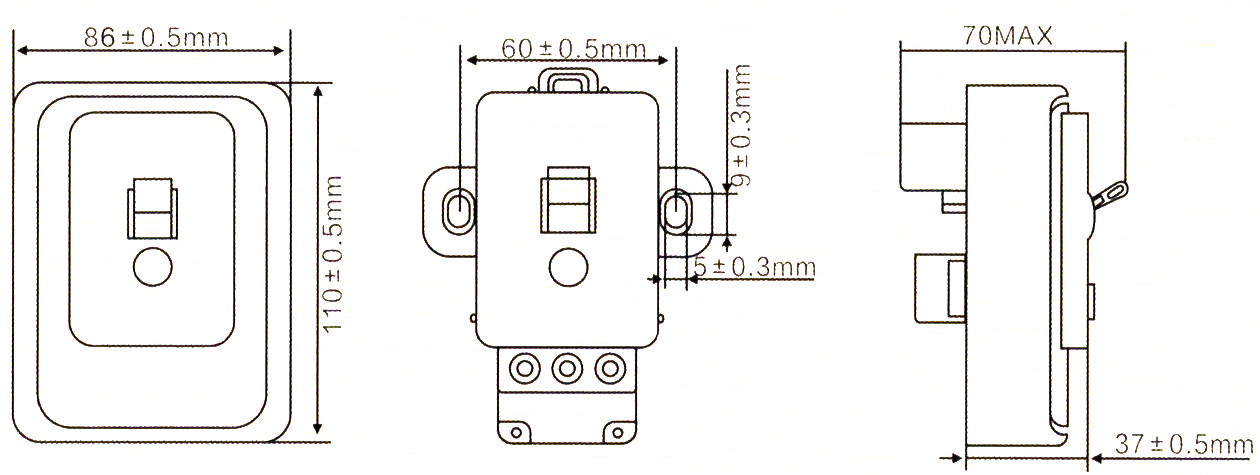

Dimension

FAQ
Q 1. What's the payment term?
A. 30% TT before production, 70% balance before delivery.

Q 2. How long is production time ?
A. Normally 15-30 days.

Q 3.Could you send me some samples ?
A. No problem and the samples are free ,you can only pay the delivery fee.

Q 4. Could you accept small order?
A. Yes, we accept small order, but if you order more than 100 cartons, the price will be cheaper.
