0.8A, 600V Bridge Rectifier Diode MB6s/MB10s

Name: 0.8A, 600V Bridge Rectifier Diode MB6s/MB10s
Brand: all-electronics-online.com
SKU: 709646542
Availability: InStock
Rating: 4.8 (30 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	9000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

0.8A,600-1000V-BRIDGE RECTIFIER-MB6S/MB10S

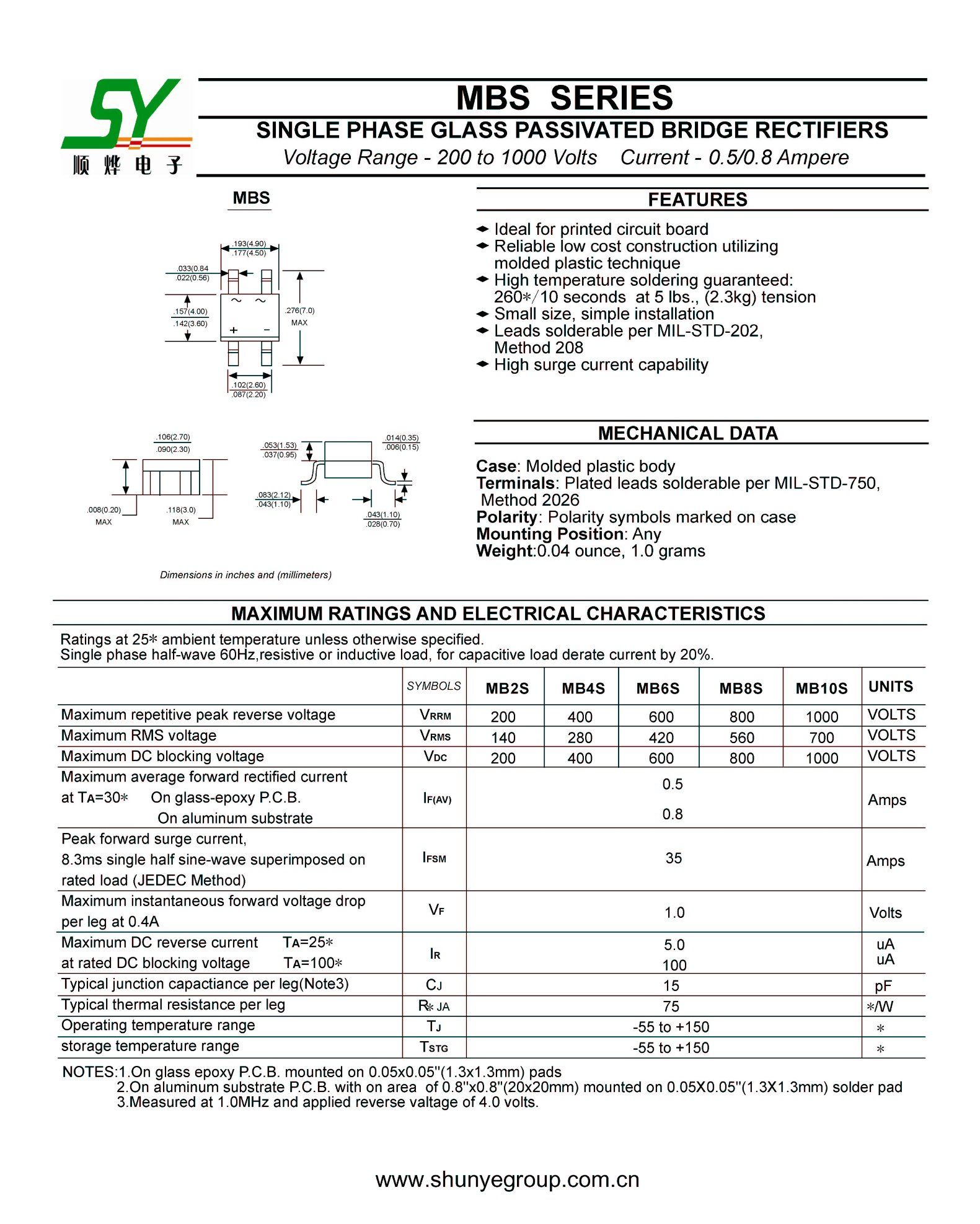

1.Datasheet:

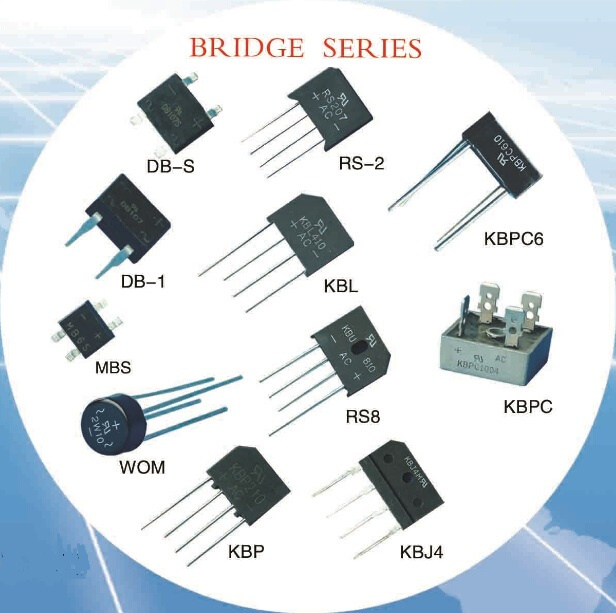

2.Products list:

BRIDGE RECTIFIERS
TYPE	Maximum Peak	Maximum Average	Maximum Forward	Maximum Reverse	Maximum Forward		Package
	Reversee	Rectified	Prak Surge Current	Current	Voltage
	Voltag	Current	@8.3ms Superimposed	@VRRM TA=25ºC	TA=25ºC
	VRRM	I(AV)	IFSM	IR	IF	VF
	V	A	A	μA	A	V
ABS2	200	0.8/1.0	30	5.0	0.4	0.95	ABS
ABS4	400	0.8/1.0	30	5.0	0.4	0.95
ABS6	600	0.8/1.0	30	5.0	0.4	0.95
ABS8	800	0.8/1.0	30	5.0	0.4	0.95
ABS10	1000	0.8/1.0	30	5.0	0.4	0.95
MB2S	200	0.5/0.8	30	5.0	0.5	1.0	MBS
MB4S	400	0.5/0.8	30	5.0	0.5	1.0
MB6S	600	0.5/0.8	30	5.0	0.5	1.0
MB8S	800	0.5/0.8	30	5.0	0.5	1.0
MB10S	1000	0.5/0.8	30	5.0	0.5	1.0
MB2F	200	0.5/0.8	30	5.0	0.5	1.0	MBF
MB4F	400	0.5/0.8	30	5.0	0.5	1.0
MB6F	600	0.5/0.8	30	5.0	0.5	1.0
MB8F	800	0.5/0.8	30	5.0	0.5	1.0
MB10F	1000	0.5/0.8	30	5.0	0.5	1.0
MB2M	200	0.8	30	5.0	0.8	1.1	MBM
MB4M	400	0.8	30	5.0	0.8	1.1
MB6M	600	0.8	30	5.0	0.8	1.1
MB8M	800	0.8	30	5.0	0.8	1.1
MB10M	1000	0.8	30	5.0	0.8	1.1
DF005 DB101	50	1.0	50	10	1.0	1.1	DB-1
DF01 DB102	100	1.0	50	10	1.0	1.1
DF02 DB103	200	1.0	50	10	1.0	1.1
DF04 DB104	400	1.0	50	10	1.0	1.1
DF06 DB105	600	1.0	50	10	1.0	1.1
DF08 DB106	800	1.0	50	10	1.0	1.1
DF10 DB107	1000	1.0	50	10	1.0	1.1
DF005S DB101S	50	1.0	50	10	1.0	1.1	DB-S
DF01S DB102S	100	1.0	50	10	1.0	1.1
DF02S DB103S	200	1.0	50	10	1.0	1.1
DF04S DB104S	400	1.0	50	10	1.0	1.1
DF06S DB105S	600	1.0	50	10	1.0	1.1
DF08S DB106S	800	1.0	50	10	1.0	1.1
DF10S DB107S	1000	1.0	50	10	1.0	1.1
DB151	50	1.5	50	10	1.5	1.1	DB-1
DB152	100	1.5	50	10	1.5	1.1
DB153	200	1.5	50	10	1.5	1.1
DB154	400	1.5	50	10	1.5	1.1
DB155	600	1.5	50	10	1.5	1.1
DB156	800	1.5	50	10	1.5	1.1
DB157	1000	1.5	50	10	1.5	1.1
DB151S	50	1.5	50	10	1.5	1.1	DB-S
DB152S	100	1.5	50	10	1.5	1.1
DB153S	200	1.5	50	10	1.5	1.1
DB154S	400	1.5	50	10	1.5	1.1
DB155S	600	1.5	50	10	1.5	1.1
DB156S	800	1.5	50	10	1.5	1.1
DB157S	1000	1.5	50	10	1.5	1.1
RB151	50	1.5	40	10	1.5	1.1	WOB
RB152	100	1.5	40	10	1.5	1.1
RB153	200	1.5	40	10	1.5	1.1
RB154	400	1.5	40	10	1.5	1.1
RB155	600	1.5	40	10	1.5	1.1
RB156	800	1.5	40	10	1.5	1.1
RB157	1000	1.5	40	10	1.5	1.1
TYPE	Maximum Peak	Maximum Average	Maximum Forward	Maximum Reverse	Maximum Forward		Package
	Reversee	Rectified	Prak Surge Current	Current	Voltage
	Voltag	Current	@8.3ms Superimposed	@VRRM TA=25ºC	TA=25ºC
	VRRM	I(AV)	IFSM	IR	IF	VF
	V	A	A	μA	A	V
W005	50	1.0	30	10	1.0	1.1	WOB
W01	100	1.0	30	10	1.0	1.1
W02	200	1.0	30	10	1.0	1.1
W04	400	1.0	30	10	1.0	1.1
W06	600	1.0	30	10	1.0	1.1
W08	800	1.0	30	10	1.0	1.1
W10	1000	1.0	30	10	1.0	1.1
2W005	50	2.0	50	10	2.0	1.1	WOB
2W01	100	2.0	50	10	2.0	1.1
2W02	200	2.0	50	10	2.0	1.1
2W04	400	2.0	50	10	2.0	1.1
2W06	600	2.0	50	10	2.0	1.1
2W08	800	2.0	50	10	2.0	1.1
2W10	1000	2.0	50	10	2.0	1.1
RS201	50	2.0	50	10	2.0	1.1	RS-2
RS202	100	2.0	50	10	2.0	1.1
RS203	200	2.0	50	10	2.0	1.1
RS204	400	2.0	50	10	2.0	1.1
RS205	600	2.0	50	10	2.0	1.1
RS206	800	2.0	50	10	2.0	1.1
RS207	1000	2.0	50	10	2.0	1.1
KBP2005	50	2.0	50	10	2.0	1.1	KBP
KBP201	100	2.0	50	10	2.0	1.1
KBP202	200	2.0	50	10	2.0	1.1
KBP204	400	2.0	50	10	2.0	1.1
KBP206	600	2.0	50	10	2.0	1.1
KBP208	800	2.0	50	10	2.0	1.1
KBP210	1000	2.0	50	10	2.0	1.1
KBJ2005 GBJ2005	50	2.0	50	10	2.0	1.1	GBJ2
KBJ201 GBJ201	100	2.0	50	10	2.0	1.1
KBJ202 GBJ202	200	2.0	50	10	2.0	1.1
KBJ204 GBJ204	400	2.0	50	10	2.0	1.1
KBJ206 GBJ206	600	2.0	50	10	2.0	1.1
KBJ208 GBJ208	800	2.0	50	10	2.0	1.1
KBJ210 GBJ210	1000	2.0	50	10	2.0	1.1
KBPC1005 BR305	50	3.0	50	10	3.0	1.1	KBPC1
KBPC101 BR31	100	3.0	50	10	3.0	1.1
KBPC102 BR32	200	3.0	50	10	3.0	1.1
KBPC104 BR34	400	3.0	50	10	3.0	1.1
KBPC106 BR36	600	3.0	50	10	3.0	1.1
KBPC108 BR38	800	3.0	50	10	3.0	1.1
KBPC110 BR310	1000	3.0	50	10	3.0	1.1
KBP3005	50	3.0	50	10	3.0	1.1	KBP
KBP301	100	3.0	50	10	3.0	1.1
KBP302	200	3.0	50	10	3.0	1.1
KBP304	400	3.0	50	10	3.0	1.1
KBP306	600	3.0	50	10	3.0	1.1
KBP308	800	3.0	50	10	3.0	1.1
KBP310	1000	3.0	50	10	3.0	1.1
KBL005 RS401	50	4.0	150	10	4.0	1.1	KBL
KBL01 RS402	100	4.0	150	10	4.0	1.1
KBL02 RS403	200	4.0	150	10	4.0	1.1
KBL04 RS404	400	4.0	150	10	4.0	1.1
KBL06 RS405	600	4.0	150	10	4.0	1.1
KBL08 RS406	800	4.0	150	10	4.0	1.1
KBL10 RS407	1000	4.0	150	10	4.0	1.1
TYPE	Maximum Peak	Maximum Average	Maximum Forward	Maximum Reverse	Maximum Forward		Package
	Reversee	Rectified	Prak Surge Current	Current	Voltage
	Voltag	Current	@8.3ms Superimposed	@VRRM TA=25ºC	TA=25ºC
	VRRM	I(AV)	IFSM	IR	IF	VF
	V	A	A	μA	A	V
KBJ4005 GBJ4005	50	4.0	150	10	4.0	1.1	GBJ4
KBJ401 GBJ401	100	4.0	150	10	4.0	1.1
KBJ402 GBJ402	200	4.0	150	10	4.0	1.1
KBJ404 GBJ404	400	4.0	150	10	4.0	1.1
KBJ406 GBJ406	600	4.0	150	10	4.0	1.1
KBJ408 GBJ408	800	4.0	150	10	4.0	1.1
KBJ410 GBJ410	1000	4.0	150	10	4.0	1.1
GBU4005	50	4.0	150	10	4.0	1.1	GBU
GBU401	100	4.0	150	10	4.0	1.1
GBU402	200	4.0	150	10	4.0	1.1
GBU404	400	4.0	150	10	4.0	1.1
GBU406	600	4.0	150	10	4.0	1.1
GBU408	800	4.0	150	10	4.0	1.1
GBU410	1000	4.0	150	10	4.0	1.1
KBU6A	50	6.0	250	10	6.0	1.0	KBU
KBU6B	100	6.0	250	10	6.0	1.0
KBU6D	200	6.0	250	10	6.0	1.0
KBU6G	400	6.0	250	10	6.0	1.0
KBU6J	600	6.0	250	10	6.0	1.0
KBU6K	800	6.0	250	10	6.0	1.0
KBU6M	1000	6.0	250	10	6.0	1.0
KBPC6005	50	6.0	125	10	6.0	1.0	KBPC6
KBPC601	100	6.0	125	10	6.0	1.0
KBPC602	200	6.0	125	10	6.0	1.0
KBPC604	400	6.0	125	10	6.0	1.0
KBPC606	600	6.0	125	10	6.0	1.0
KBPC608	800	6.0	125	10	6.0	1.0
KBPC610	1000	6.0	125	10	6.0	1.0
GBU6005	50	6.0	150	10	6.0	1.1	GBU
GBU601	100	6.0	150	10	6.0	1.1
GBU602	200	6.0	150	10	6.0	1.1
GBU604	400	6.0	150	10	6.0	1.1
GBU606	600	6.0	150	10	6.0	1.1
GBU608	800	6.0	150	10	6.0	1.1
GBU610	1000	6.0	150	10	6.0	1.1
KBU8A	50	8.0	250	10	8.0	1.1	KBU
KBU8B	100	8.0	250	10	8.0	1.1
KBU8D	200	8.0	250	10	8.0	1.1
KBU8G	400	8.0	250	10	8.0	1.1
KBU8J	600	8.0	250	10	8.0	1.1
KBU8K	800	8.0	250	10	8.0	1.1
KBU8M	1000	8.0	250	10	8.0	1.1
GBJ8005	50	8.0	170	10	8.0	1.1	GBJ6
GBJ801	100	8.0	170	10	8.0	1.1
GBJ802	200	8.0	170	10	8.0	1.1
GBJ804	400	8.0	170	10	8.0	1.1
GBJ806	600	8.0	170	10	8.0	1.1
GBJ808	800	8.0	170	10	8.0	1.1
GBJ810	1000	8.0	170	10	8.0	1.1
KBPC8005	50	8.0	250	10	8.0	1.1	KBPC8
KBPC801	100	8.0	250	10	8.0	1.1
KBPC802	200	8.0	250	10	8.0	1.1
KBPC804	400	8.0	250	10	8.0	1.1
KBPC806	600	8.0	250	10	8.0	1.1
KBPC808	800	8.0	250	10	8.0	1.1
KBPC810	1000	8.0	250	10	8.0	1.1
TYPE	Maximum Peak	Maximum Average	Maximum Forward	Maximum Reverse	Maximum Forward		Package
	Reversee	Rectified	Prak Surge Current	Current	Voltage
	Voltag	Current	@8.3ms Superimposed	@VRRM TA=25ºC	TA=25ºC
	VRRM	I(AV)	IFSM	IR	IF	VF
	V	A	A	μA	A	V
KBPC10005	50	10	150	10	10	1.1	KBPC8
KBPC1001	100	10	150	10	10	1.1
KBPC1002	200	10	150	10	10	1.1
KBPC1004	400	10	150	10	10	1.1
KBPC1006	600	10	150	10	10	1.1
KBPC1008	800	10	150	10	10	1.1
KBPC1010	1000	10	150	10	10	1.1
GBU1005	50	10	200	10	10	1.1	GBU
GBU101	100	10	200	10	10	1.1
GBU102	200	10	200	10	10	1.1
GBU104	400	10	200	10	10	1.1
GBU106	600	10	200	10	10	1.1
GBU108	800	10	200	10	10	1.1
GBU1010	1000	10	200	10	10	1.1
KBPC15005	50	15	300	10	15	1.1	KBPC25
KBPC1501	100	15	300	10	15	1.1
KBPC1502	200	15	300	10	15	1.1
KBPC1504	400	15	300	10	15	1.1
KBPC1506	600	15	300	10	15	1.1
KBPC1508	800	15	300	10	15	1.1
KBPC1510	1000	15	300	10	15	1.1
KBPC15005W	50	15	300	10	15	1.1	KBPC25-W
KBPC1501W	100	15	300	10	15	1.1
KBPC1502W	200	15	300	10	15	1.1
KBPC1504W	400	15	300	10	15	1.1
KBPC1506W	600	15	300	10	15	1.1
KBPC1508W	800	15	300	10	15	1.1
KBPC1510W	1000	15	300	10	15	1.1
KBPC25005	50	25	300	10	25	1.1	KBPC25
KBPC2501	100	25	300	10	25	1.1
KBPC2502	200	25	300	10	25	1.1
KBPC2504	400	25	300	10	25	1.1
KBPC2506	600	25	300	10	25	1.1
KBPC2508	800	25	300	10	25	1.1
KBPC2510	1000	25	300	10	25	1.1
KBPC25005W	50	25	300	10	25	1.1	KBPC25-W
KBPC2501W	100	25	300	10	25	1.1
KBPC2502W	200	25	300	10	25	1.1
KBPC2504W	400	25	300	10	25	1.1
KBPC2506W/	600	25	300	10	25	1.1
KBPC2508W	800	25	300	10	25	1.1
KBPC2510W	1000	25	300	10	25	1.1
KBPC35005	50	35	400	10	35	1.1	KBPC25
KBPC3501	100	35	400	10	35	1.1
KBPC3502	200	35	400	10	35	1.1
KBPC3504	400	35	400	10	35	1.1
KBPC3506	600	35	400	10	35	1.1
KBPC3508	800	35	400	10	35	1.1
KBPC3510	1000	35	400	10	35	1.1
KBPC35005W	50	35	400	10	35	1.1	KBPC25-W
KBPC3501W	100	35	400	10	35	1.1
KBPC3502W	200	35	400	10	35	1.1
KBPC3504W	400	35	400	10	35	1.1
KBPC3506W	600	35	400	10	35	1.1
KBPC3508W	800	35	400	10	35	1.1
KBPC3510W	1000	35	400	10	35	1.1

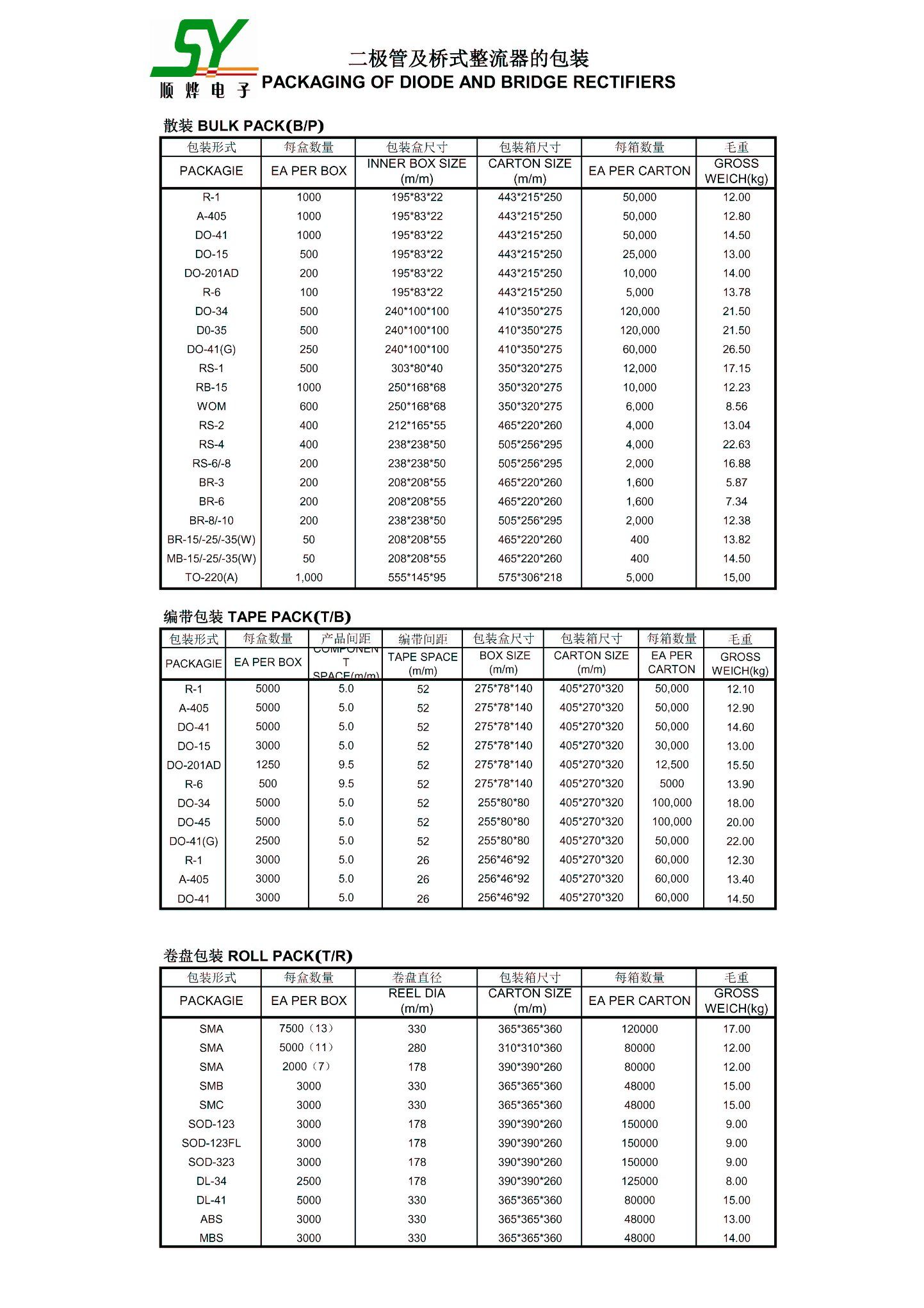

3.Package:

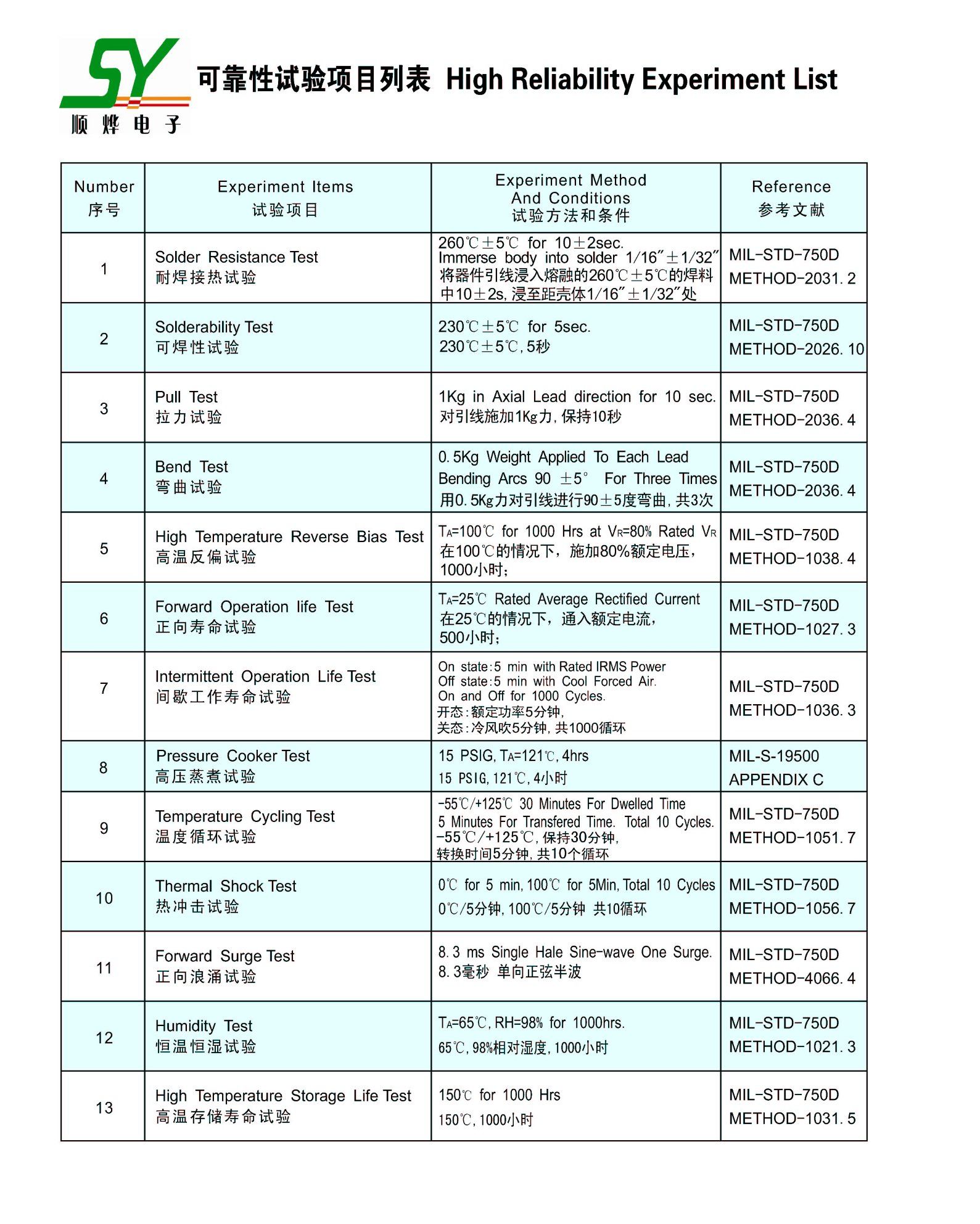

4.Reliability Test List:

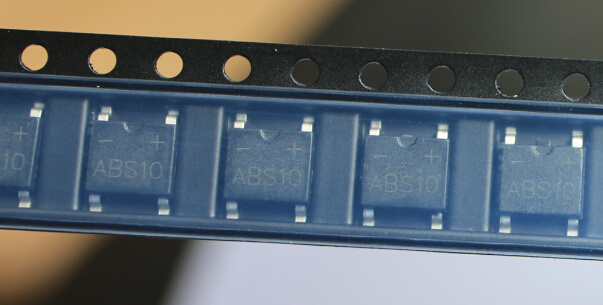

5.Product Picture:

6.Our Fair:

7.Contact Us:

8. FAQ:

1, Are you Manufacturer or trading company?
We are a manufacturer only in diode, bridge rectifier and automotive rectifier diode. We could supply competitive price and fast delivery and good quality with prompt service, we guarantee that we will reply to our customers within 1-12H once we receive the inquiry, we will do the utmost to help to reduce your cost.

2. May I have some samples for testing?

Yes, sure. We offer free samples for you and you only need to cover the international freight for samples. when you have 1st order with us, we will deduct the freight from your first order.

3. What about the delivery ?

Usually the lead time is about 1-2 weeks after receiving payment. For many normal parts, we have the quantity in stock and we have the system to ensure the delivery will be on time.

4. What about the payment terms ?
Order amount is less than $10000: 100% Advance.
Order amount is between $10000 and $20000: 50% Advance and 50% before shipment.
Order amount is more than $20000: 30% Advance and 70% before shipment.
Old customer with good reputation: NET 30days.

5. What about the shipment terms ?
FOB Shanghai by air;
CFR your city seaport by sea;

We also work with DHL, FEDEX, TNT and etc. For large quantity , it's up to you to choose the freight forwarder and if you need, we could assist you.

If you have any question or need techical support, please do not hesitate to contact us, we will try our best to serve you.

Prod Model:	MB6S, mb10s, mb6f, mb10f, mb6m, MB10M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia,Western Europe
Ampere:	0.5/0.8
Voltage:	200-1000V
Case:	Mbs
Vf:	1.1

Changzhou Shunye Electronics Co., Ltd. is a professional manufacturer in diode and Automotive diode.

Over the past years of practices, we always set "excellent quality, competitive price, superior service" as our key managing policy & guide lines for our daily behavior. We provide wide products lines to our customers, including all kinds of rectifier diodes, TVS, small signal diodes, bridge rectifiers and automotive rectifier etc. The major application industries cover automobile, computer, consumer appliances, telecommunication etc.

We always take our clients personally, we have a dedicating & proficient management team with good understanding, whose mind is set on continuous quality improvement, effective cost saving & customer satisfaction.

Your demand is our top priority, you are welcome to contact us at any time at your convenience for any inquiries or any possible business discussions.

---------------------------------------------------------------------------

Our Mission:

Our aim is to become one of the largest manufacturers of rectifier diodes in the world based on excellence in:

- Innovative product

- First Class Quality

- Competitive Price

- Best Customer Service

- Manufacturing Strength As your valued business partner

---------------------------------------------------------------------------------

Team Message:

Dear Customers,

Thanks for visiting our website.

We would like to ensure that our all customers and business partners will get good service from us, we always prove our commitment to you by serving you better. Delight customers profitably is our common goal.

----------------------------------------------------------------------------------

Main Products:

Silicon Rectifier Diode

Zener Diode

Schottky Barrier Diode,

Switching Diode,

Bridge Rectifier Diode

Soza Cell Diode,

Automotive Button Diode,

Lead Button Diode,

Press Fit Diode,

Avalanche Diode,
