8f/12f/24f MTP/MPO Patchcord Jumper Optical Fiber Connector Sm/Om3/Om4 PVC/LSZH/Ofnp

Name: 8f/12f/24f MTP/MPO Patchcord Jumper Optical Fiber Connector Sm/Om3/Om4 PVC/LSZH/Ofnp
Brand: all-electronics-online.com
SKU: 839577925
Availability: InStock
Rating: 4.4 (55 reviews)

Price:	US $ 18-21/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Description:

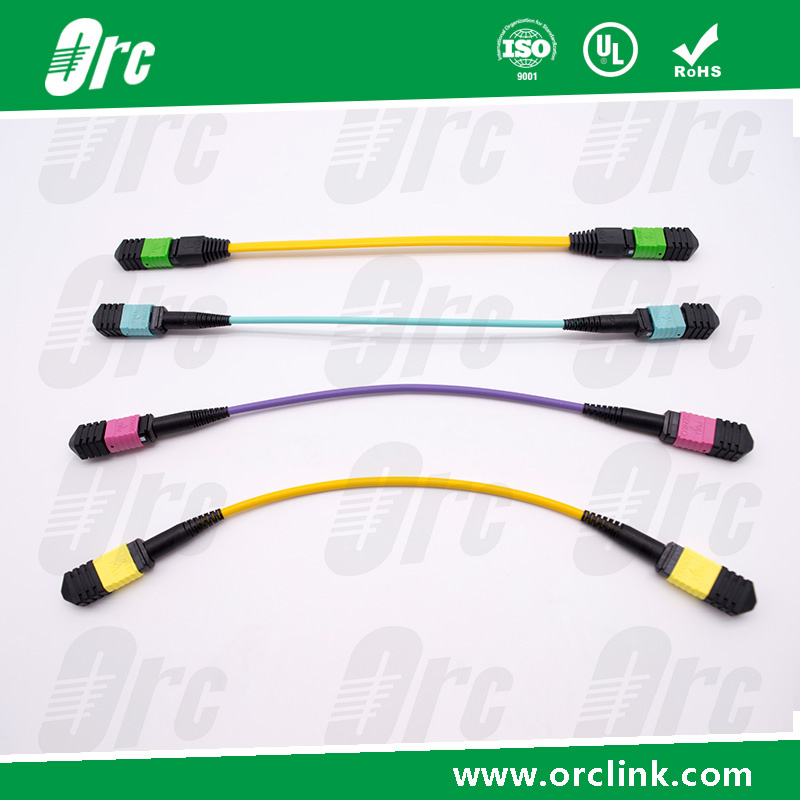

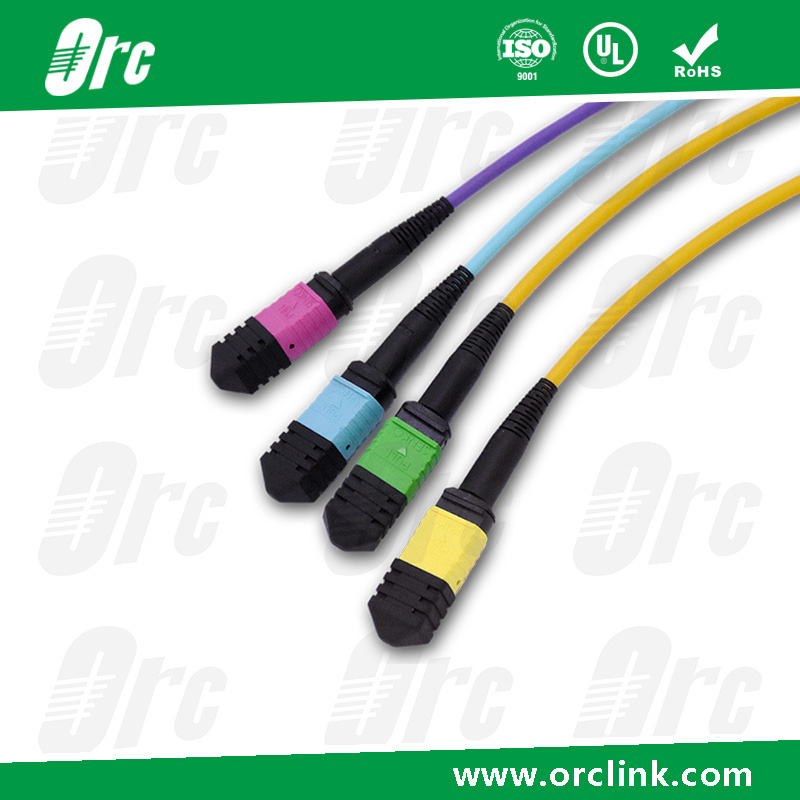

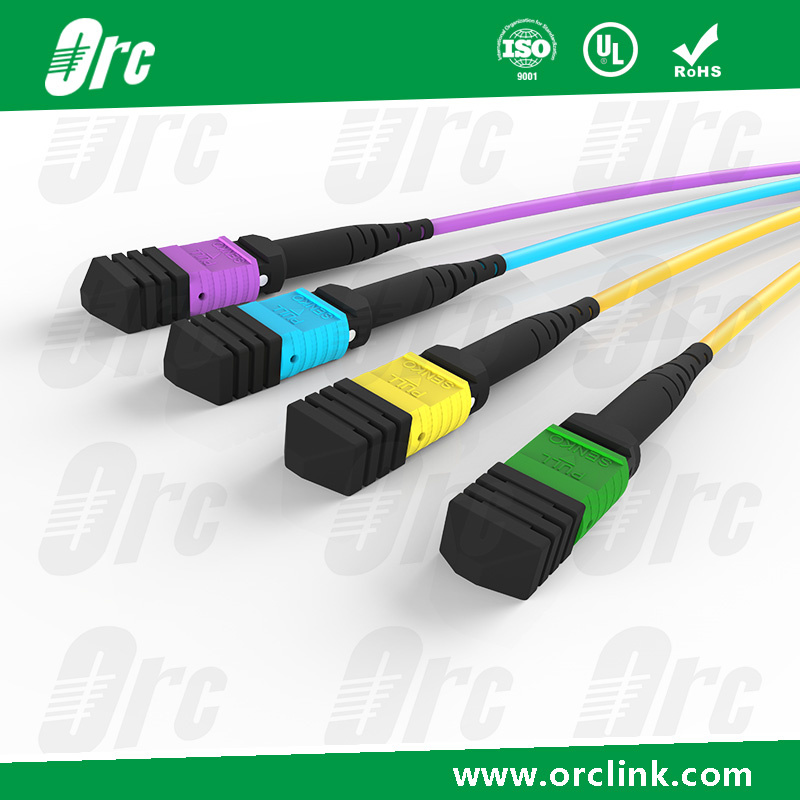

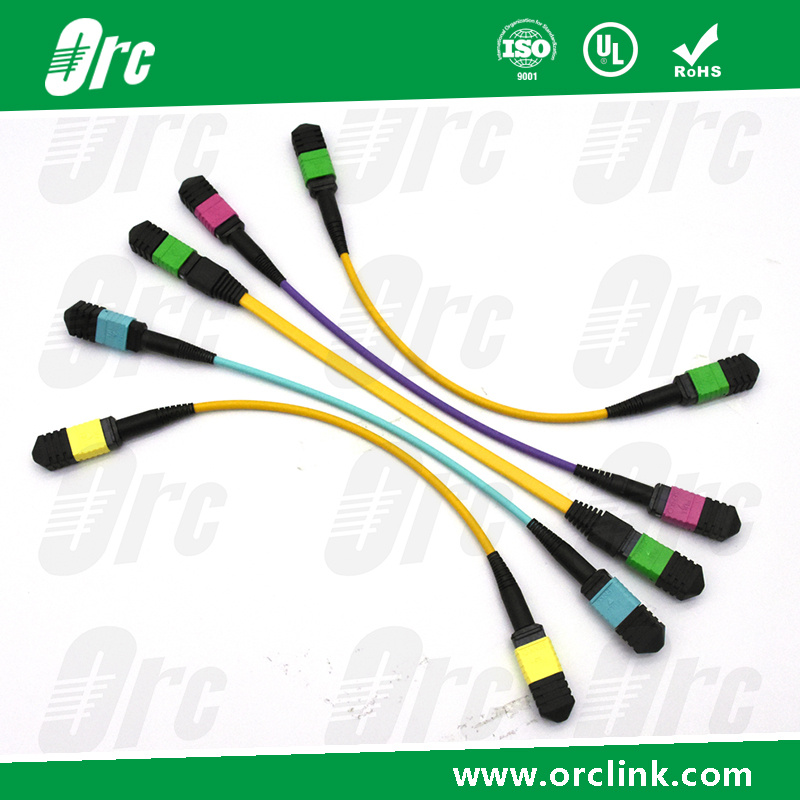

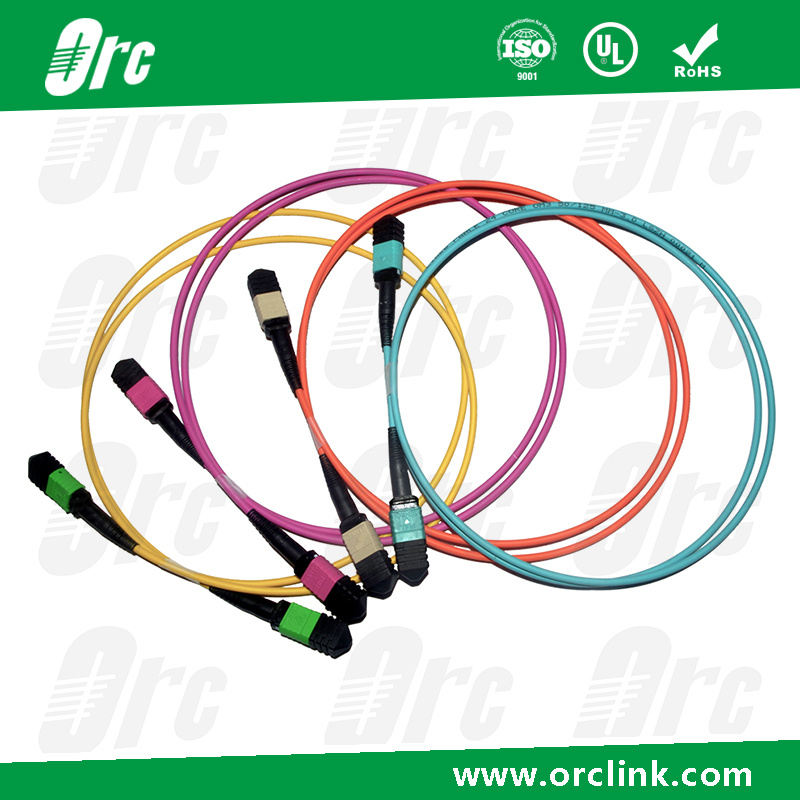

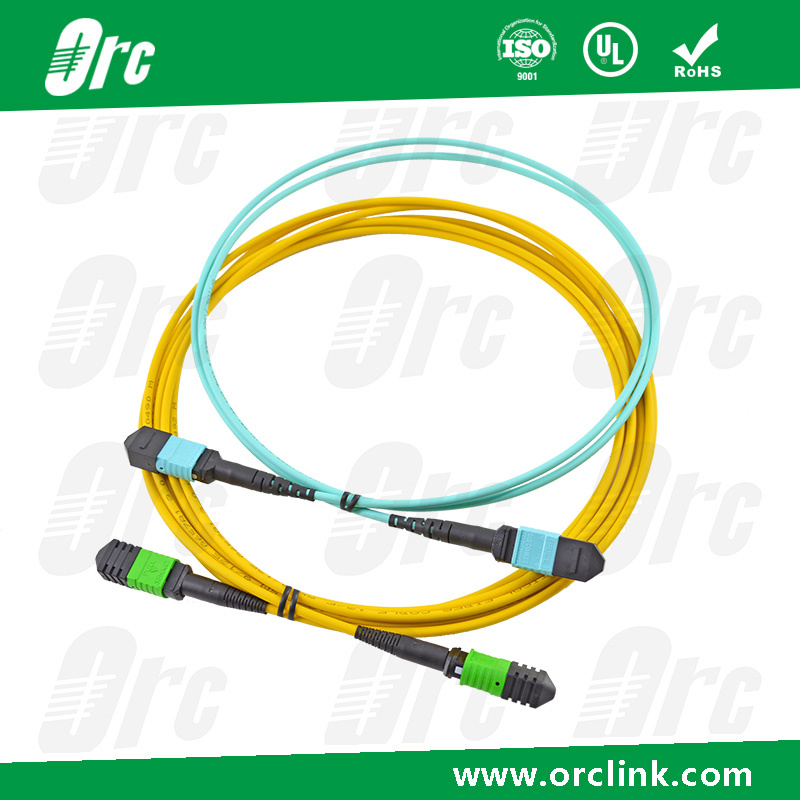

MTP/MPO patchcord is definitely an efficient and economical solution at data center, ORC provides SM and MM MTP/MPO patchcord with 8-32 cores, compatible for round cable or flat cable, male and female connector and customized cable length and color are available.

Our strengths

As a rapid response of a mid-size, customer oriented company, flexibly meet the needs and expectations of customers around the globe
Consultancy, development, industrial engineering services, original design manufacturing and original equipment manufacturing
Superb engineering and design capabilities, strong quality control systems, and substantial manufacturing capacity allows us to deliver both high-volume and customized solutions extremely rapidly for global customers.
Employees with fiber optic industrial engineering skills and experienced in international collaboration, project management, product development and implementation
Excellent operator workmanship with ISO 9001 certified quality management system
Location with excellent logistics

Physical Characteristics
Cable Length	3 meters, 10 meters, Customized
Cable Color	Yellow, Aqua, Violet, Customized
Cable Diameter	2.0mm, 3mm, 3.6mm, 4.5mm, Customized
Fiber Count	8/ 12/ 16/ 24/ 32 Fibers
Fiber Type	Single mode/ OM3/ OM4/OM5
Polarity	Method A/ Method B/Method C/ Method D
Jacket Rating	LSZH/ PVC/ Plenum (OFNP)
Performance
Testing	100% IL, RL and Interferometer Tested
Environmental
RoHS	Yes
UL	UL Listed Cable

Optical Performance
Item		Parameter
MTP/MPO Connector		SM		MM
		Standard	Low Loss	Standard	Low Loss
Insertion Loss	Typical	0.50dB	0.20dB	0.50dB	0.20dB
	Maximum	0.70dB	0.35dB	0.60dB	0.35dB
Return Loss		≥60dB for APC		≥20dB for PC
		≥40dB for PC		--
Male/Female		Male: With Pins, Female: Without Pins
Tensile Strength		≤0.3dB (Max 66N)
Vibration		≤0.3dB (10 ~ 55Hz)
Thermal Cycle		≤0.3dB (-40 ~ 75ºC, 21Cycles)

Transmission Medium:	Multimode
Structure:	MT
Number Of Cores:	Multi-Core
Ferrule Endface:	PC(',UPC)
Fabrication Process:	Assembling
Application:	Data Center Connecting
Connector Type:	MPO
Brand:	Senko

Optic river communication Ltd (ORC), established in 2009, is a leading manufacture and supplier of cable fiber optic interconnect products in China with advanced manufacturing capabilities. Located in Shenzhen, the biggest special economic zones in China, ORC designs and manufactures fiber optic connectivity and cabling products utilized in datacom, telecom and FTTX networking. We not only offer a complete line of superior quality products, but also work with our customers to develop new formulas and address the burgeoning market.

Our main products as below:

Data Center Solution:

1. Data center cabling: MPO/MTP trunk cable, Fan-out cable, Pre-terminated cable

2. Data center cable management: MPO/MTP Rack/Cassette/Cabinet

FTTX Solution:

1. FTTX cabling: Cable, Patchcord, Pre-terminated Cable

2. FTTX Components: PLC splitter, Fused Biconic Coupler

3. FTTX system: ODF, cabinet, ONU, OLT

High Speed Module Packaging:

1. MT series: AOC, MT-MT, MT-Ferrule, MT-FA etc.

2. Free Space Isolator

4CH AWG packaging.

With the rapid development over the past years, ORC has won widespread praise and recognition of customer satisfaction. Aim to high quality, superior reliability and strong sustainability for the products, ORCorc has passed the most rigorous tests, including GR326, GR1435, GR1209 by Telcordia, RoHS compliance, and ISO9001: 2008 certification as well.
