8pH Air-Cooled Heat Pump Used for Petrochemical
Main Features
1. Suitable for the building with 200-10000m2.
2. Air conditioner system with cold and heat source unity, no boiler room needed, more suitable for simultaneous heating and cooling needs of users.
3. Install it outdoor, do not need refrigerator room, eliminating the need for refrigeration room, saving construction investment.
4. The first energy utilization rate is up to 90%, saving energy consumption, greatly reducing the cost of the user.
5. No cooling tower needed, at the same time, eliminating the need of water pump and pipe system, reducing the cost of extra equipment.
6. No cooling water system power consumption, no cooling water loss, more suitable for water shortage areas.
Technical Parameters:
| Model No. | RHP
-008A | RHP
-010A | RHP
-015A | RHP
-020A | RHP
-025A | RHP
-030A |
| Characteristics | Nominal refrigeration capacity(Kcal/h) | 16000 | 20000 | 30000 | 40000 | 50000 | 60000 |
| Nominal heating capacity (Kw) | 23 | 28.8 | 43.1 | 57.5 | 71.9 | 86.3 |
| Capacity control (%) | 100, 0 | 100, 50, 0 |
| Power supply | 3N - 50HZ - 380V |
| Power consumption (Kw) | 7.1 | 8.2 | 12.5 | 16.3 | 19 | 26 |
| Refrigerant | Type | Standard R-22 / Eco-friendly R134a or R407c |
| Vol (Kg) | 4 | 5 | 7.5 | 10 | 12.5 | 15 |
| Control | Thermostatic Expansion Valve |
| Refrigeration system | Compressor | Type | Scroll Type / Piston Type |
| Qty | 1 | 2 |
| Input(kw) | 7.91 | 8.94 | 4.66+8.94 | 8.94*2 | 10.1*2 | 14.1*2 |
| Condenser | Type | Finned Type |
| Windward Area (m2) | 0.96 | 1.2 | 1.8 | 2.4 | 3 | 3.6 |
| Evaporator | Type | GDD-008 | GDD-010 | GDD-015 | GDD-020 | GDD-025 | GDD-030 |
| Pipe Dia. (PT) | 1-1/2" | 1-1/2" | 2" | 2" | 2-1/2" | 2-1/2" |
| Resistance ( Kpa) | 30 | 32 | 34 | 34 | 32 | 35 |
| Cooling System | Fan | Type | Low Noise Screw Axis-flow |
| Circulating Flow (m3/h) | 8000 | 10000 | 15000 | 19000 | 23000 | 28000 |
| Motor | Type | Bearing Drive |
| Input (Kw) | 0.42 | 0.65 | 1.1 | 0.65*2 | 1.0*2 | 1.1*2 |
| Protection Devices | high/low pressure switch, freeze protection device, overload protection device, coil overheat protector, temperature automatic protective switch |
| Size | W (mm) | 1550 | 1550 | 1550 | 1900 | 2600 | 2600 |
| D (mm) | 800 | 800 | 800 | 900 | 900 | 1200 |
| H (mm) | 1900 | 1900 | 1900 | 2000 | 2000 | 2300 |
| Weight (Kg) | 420 | 450 | 480 | 550 | 650 | 730 |
Work Condition:1. The above data is based on ice water inlet temp 12degree, outlet temp 7degree, cooling water head loss under 6.6M, ambient temperature 35CDB 31CWB.
2. No prior notice if any modified about above specification.
3. Please always confirm before you order.
4. If the frequency of power supply is 60HZ, all the data above should be dived by 0.83.
Structure Drawing

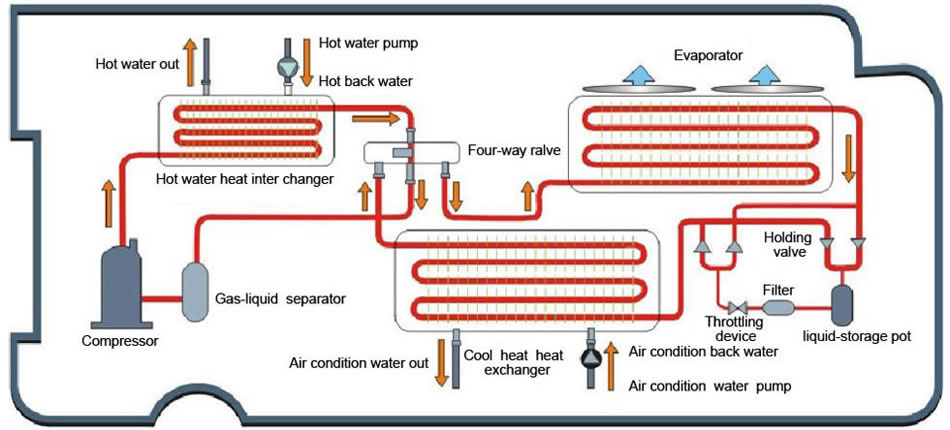

Work Principle
Applications
Be widely used in Chemical Plant, Foam Factory, Pack PE Foam Plant, Rubber Plant, Central Air-Conditioning, Hotel, Restaurant and etc.
Package & Shipping
Use standard export plywood case with forklift truck feet, easy to load and unload
5-7 days to finish the production after receiving the deposit
Shipping by LCL or FCL
After-sales service:
12 months quality warranty since the date of delivery.
Free of charge to replace new chillersif quality problems.
Cost price to buy extra parts with Chillers from Ruihai if needed.
24 hours online service by e-mail, WhatsApp, Skype or Telephone Calling.
Installation Video to help installation even send engineer to customer's jobsite if needed.
Necessary info to Quote1.What is your cooling capacity?_____ Kcal/hr or _____KW?
2. What's your power supply?
For example: 220V-50Hz-1N (N=Phase )3.What refrigerant type do you require?
R22 or R134a or R407c?4. What's your ambient temperature? And what is your chiller inlet and outlet water temperature?
5. Which industry do you use the chiller in?
