90W Laptop Power Adapter with LED

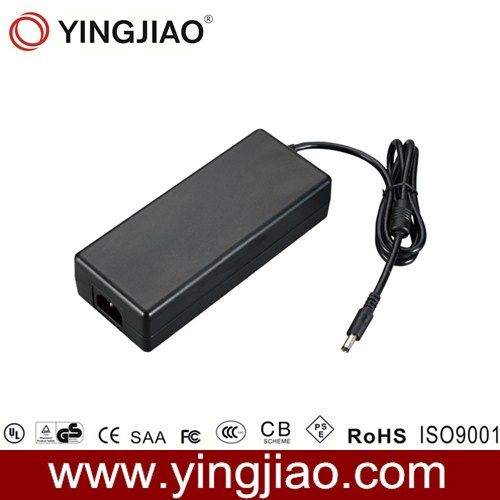

Name: 90W Laptop Power Adapter with LED
Brand: all-electronics-online.com
SKU: 608290865
Availability: InStock
Rating: 4.7 (128 reviews)

Price:	US $ 8-18/Piece
Trade Terms:	FOB,others
Min Order:	500/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YS90 SERIES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection:	Hipot,Short Circuit,Overvoltage,Ove
Packaging:	PE Bag,White Box,Carton
Experience:	20 Years'experience
Quick Delievery:	15-25 Days
Warranty:	3 Years' Warranty
Usage:	Display
Output Type:	AC or DC
Connection:	Desktop
Certification:	GS/CE/EMC/RoHS/Reach
Type:	OEM/ODM
Brand:	Yingjiao/OEM/ODM

Product Description

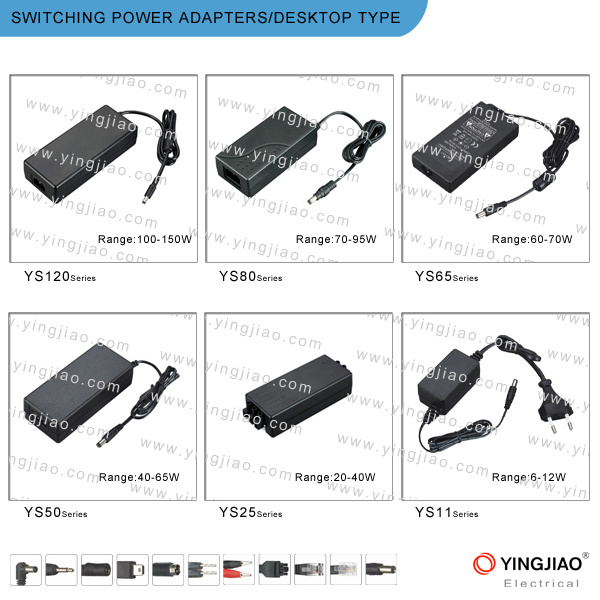

We are a professional manufacturer of switching power supply / adaptor, laptop power adaptor, AC/DC power adaptor, both wall mount adaptor and desktop types.

Model: YS90 series
Rated Power: 90W max.
Universal Input: 100-240V AC 50/60Hz
Sample Output Specifications:

Other output voltage and current also available

Features:
Universal Input: 100-240V AC 50/60Hz
Safety: UL/CUL/TUV/GS/CE/CCC compliance
RoHS Compliance
With PFC or without PFC optional
High efficiency & low power consumption
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact

Environmental:
Operating Temperature: 0 to +40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing

Mechanical:
Dimensions: 126mm (L)*51mm (W)*34mm (H)
N. W.: 240g
AC Input Plug: EU, US, UK, AUS, etc. Type optional
Output plug: Optional

Model	Output Load Voltage (V) Max.	Load Current (A)
YS90-XX480	48	1.50
YS90-XX360	36	2.50
YS90-XX240	24	3.50
YS90-XX200	20	4.50
YS90-XX190	19	4.50
YS90-XX180	18	5.00
YS90-XX150	15	5.00
YS90-XX120	12	6.00

Yingjiao Electrical Co., Ltd., established in 1996, is a leading manufacturer and exporter of switching power adapters, linear AC/DC adapters, transformers, chargers, car chargers, power cords, tripods, etc. We can also design and manufacture power supply products with specifications according to the various demands of different customers.

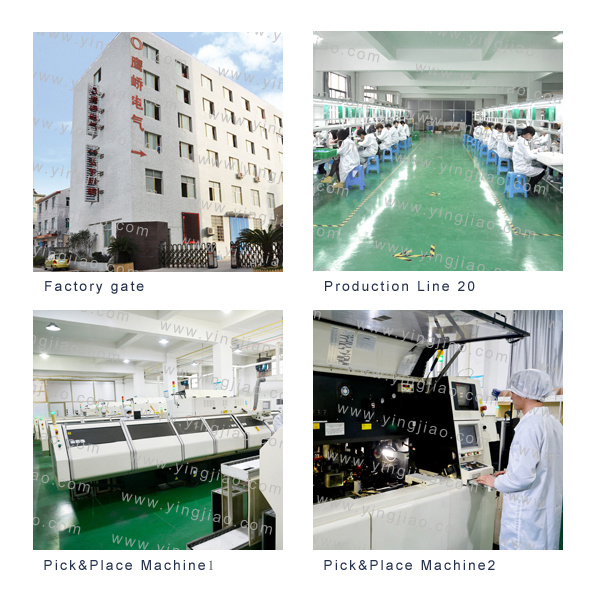

Located in Ningbo, a coastal city in East China, we possess a convenient location and transportation facility. With an area of 15000 square meters, we have about 800 skillful employees. Being exported to Europe, America, Japan, Australia, and many other countries and regions, our products have won good comments from our customers.

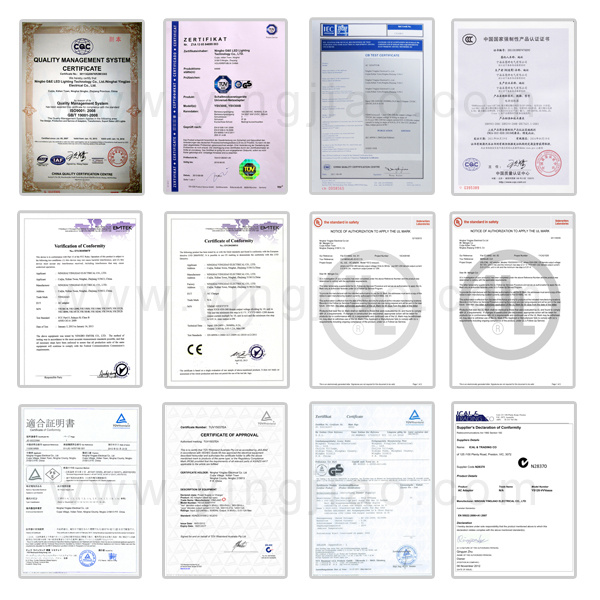

We have a strict quality control and guarantee system and have been ISO 9001: 2000 and SGS certified. All our main products have obtained CE approvals of the European Union and CQC and CCC approvals of Chinese quality certification center. Besides, we also carry out the international authoritative certifications, such as UL, cUL, TUV, CSA, and GS.

We commit to supply high quality products and competitive prices to our customers with professional technologies and top-ranking services.

ODM/OEM partners are welcome too.
