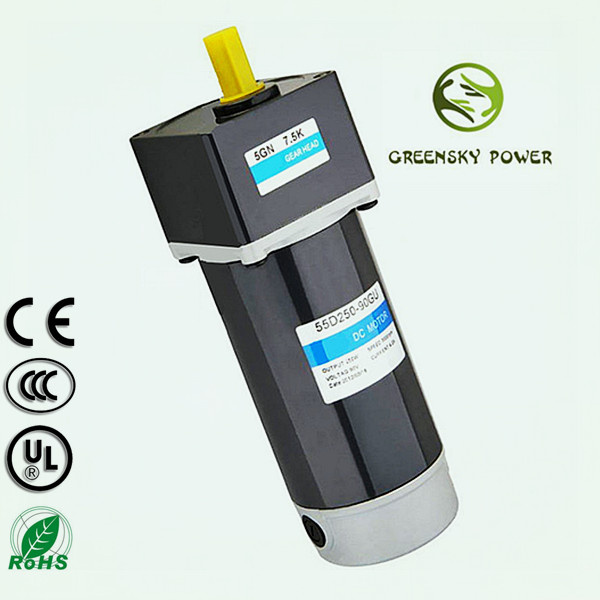

90W Pm Small Electric DC Gear Motor

Name: 90W Pm Small Electric DC Gear Motor
Brand: all-electronics-online.com
SKU: 743139985
Availability: InStock
Rating: 4.5 (95 reviews)

Price:	US $ 25.2-27/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	5D90
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed:	2900rpm
Power:	90W
Voltage:	12V/24V/90V
Rated Torque:	307mn.M
Current:	1.4A
Brush Life:	2000h
Technology:	Can Be Customized
Structure And Working Principle:	Brush
Operating Speed:	Low Speed
Application:	Power Tools
Excitation Mode:	Excited
Brand:	GS
Certification:	CCC, CE, UL, Cu

Product Description

Introduction

We have both DC gear motor and Brushless dc gear motor, including 5 kinds of 300 products. The watt is from 6W to 300W, voltage is from 12VDC to 220VDC. The advantages of our motors are steady work, big starting and rated torque, low noise, high efficiency and long life.

Specification

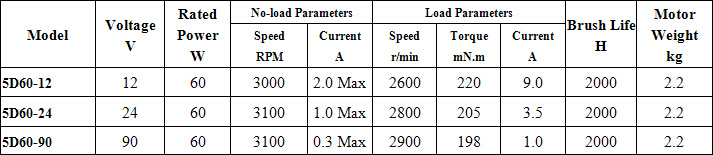

The datasheet is 60W DC Motor's info as reference.
Motor Voltage 6V to 220V, Power 6W to 550W (DC/BLDC) is also can be provided.

Note:
Motor voltage, power and speed will be customized according to your request under the allowed circumstance of adoptable dimension.

View Of Item

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.
Introduce: Greensky Mechanical Co., ltd is a subsidiary company of Greensky Power which is producing micro AC and DC gear motor, small AC gear motor, precision planetary gearbox for servo motor, and it has capability to design and develop the micro motor, customized motor and precision gearbox, motor controller with high quality.
Philosophy:We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

Greensky's Advantage
On the site you can find a range of renewable products including AC/DC motor,AC Induction Motor,Reversible Motor,Blake Motor,Speed motor,AC Angel Motor,Gear Motor,Planetary Gear Box,Worm Gear Box and their relevant components.

If you have any other questions, please feel free to contact us.

Model	Voltage V	Rated Power W	No-load Parameters		Load Parameters			Brush Life H	Motor Weight kg
Model	Voltage V	Rated Power W	Speed RPM	Current A	Speed r/min	Torque mN.m	Current A	Brush Life H	Motor Weight kg
5D90-12	12	90	3100	2.0 Max	2600	330	12	2000	2.2
5D90-24	24	90	2800	1.0 Max	2800	307	5.0	2000	2.2
5D90-90	90	90	2900	0.3 Max	2900	307	1.4	2000	2.2

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.

Introduce: Greensky Mechanical Co., Ltd is a subsidiary company of Greensky Power which is producing AC and DC gear motor, gearbox and motor, and it has capability to design and develop customized product with high quality.

Philosophy: We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.
